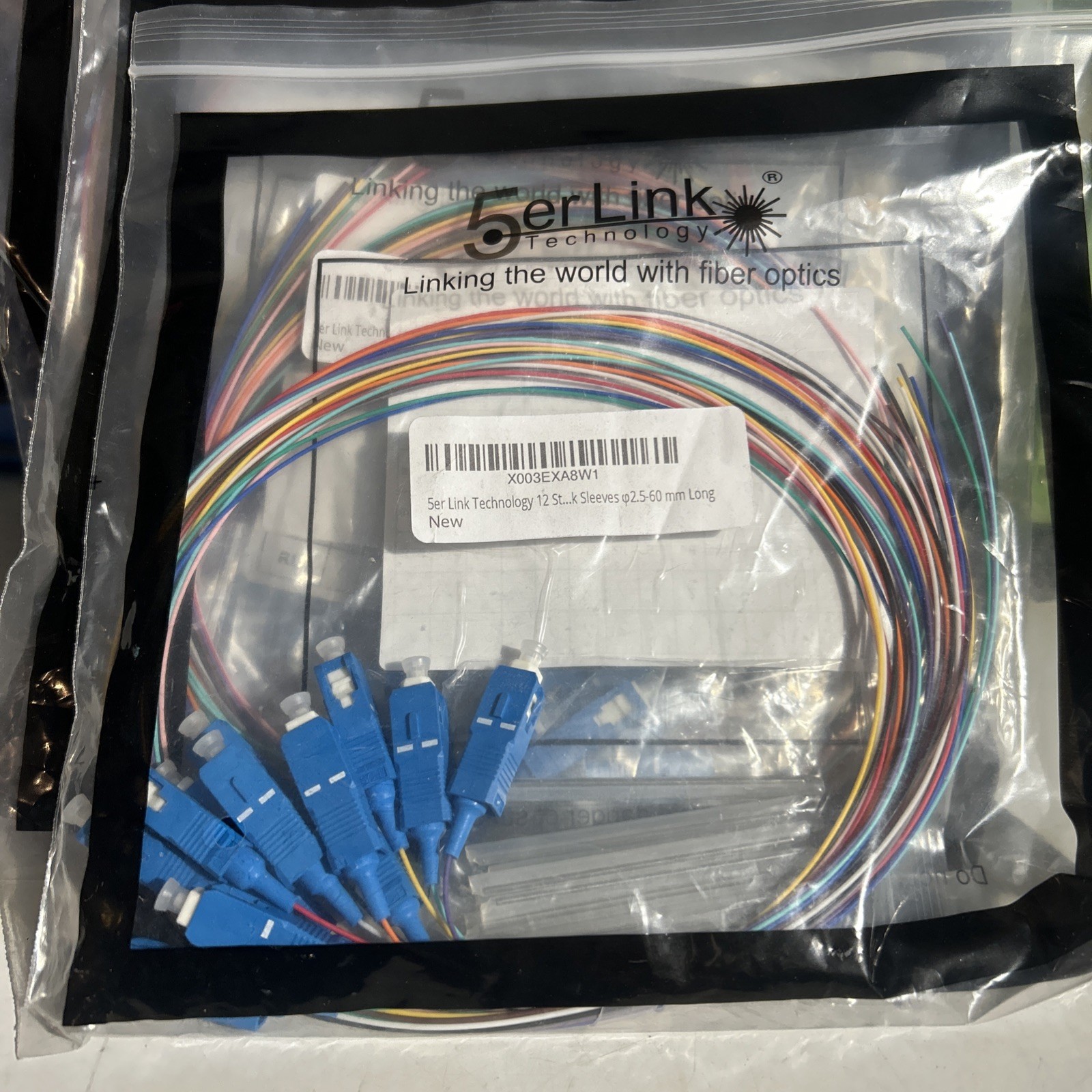

Our fiber optic pigtails are made of high-quality Single-mode, OS2, 9/125, Multi-mode 62.5/125 and 50/125 fiber optic cable with LC/UPC, LC/APC, SC/UPC, SC/APC, ST/UPC connectors. Ideal for fusion splicing, they are quality tested to meet or exceed industry standards while adhering to only the most stringent performance specifications.
Fiber optic cable with tight-buffered coating on each optical fiber
Optical testing insertion loss and returns loss
Individually colored to easily match color-coded fiber cable that will be spliced
Support both fusion and mechanical splicing for fiber cabling system
Connector Type SC
Fiber Type Single Mode
Polish Type UPC
Fiber Count 12
Wavelength 1310 nm/1550 mm
Insertion Loss ≤0.3 dB
Return Loss ≥50 dB
Minimum Bend Radius 10 mm
Cable Diameter 0.9 mm
Pigtail Color 12-Color
Attenuation at 1310nm 0.36 dB/km
Attenuation at 1550nm 0.22 dB/km
