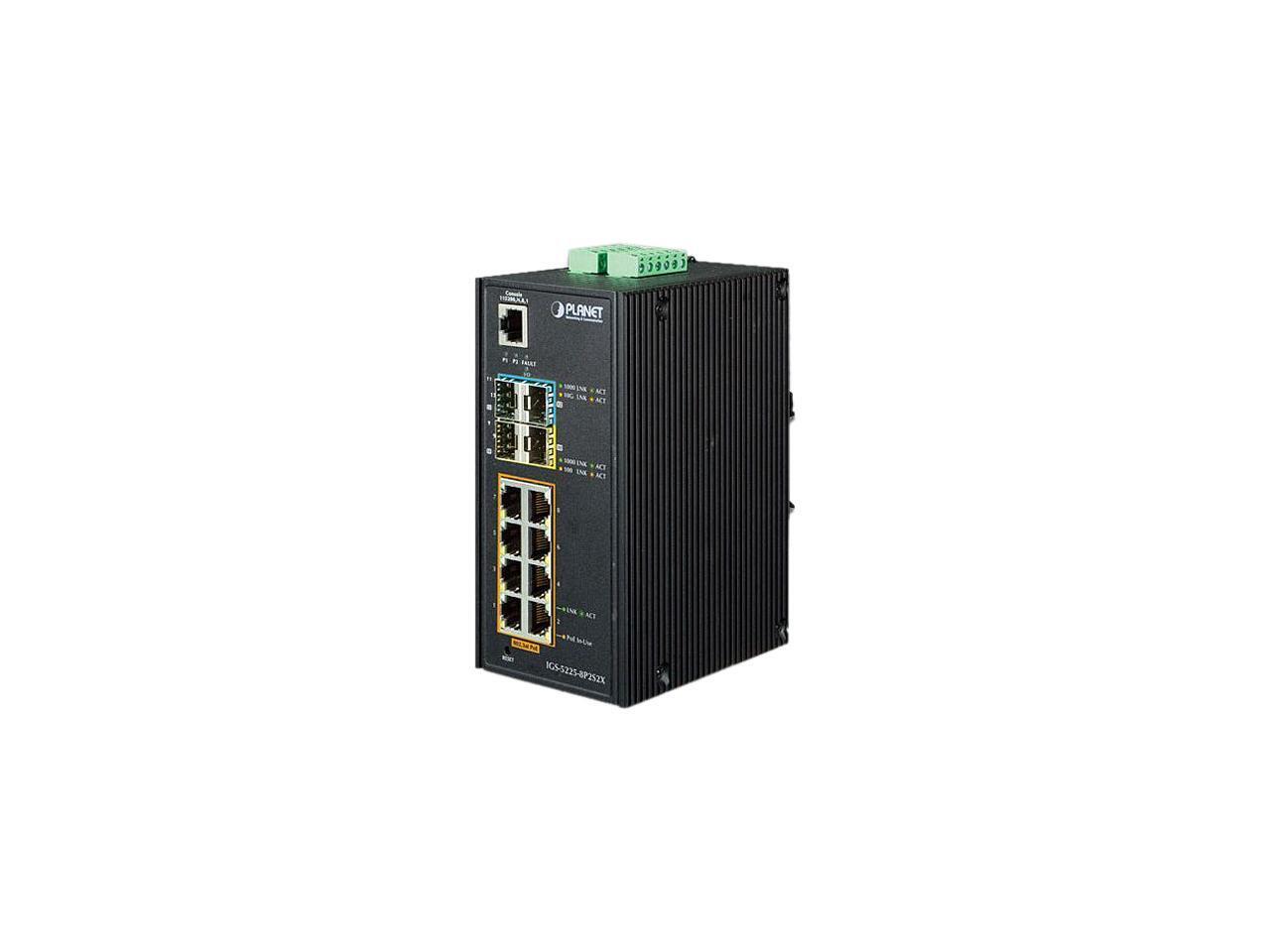

Planet IGS-5225-8P2S2X Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port more about PLANET & StandardsFormatDIN Rail Kit and Wall-mount KitStandardsIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX/100BASE-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000TIEEE 802.3ae 10Gb/s EthernetIEEE 802.3x flow control and back pressureIEEE 802.3ad port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPIEEE 802.3af Power over EthernetIEEE 802.3at Power over Ethernet PlusRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP v1RFC 2236 IGMP v2Network Management TypeManagedPorts & InterfacePrimary Ports8 x RJ45 + 2 x SFP + 2 x SFP+Primary Port Speed10/100/1000MbpsData TransmissionMAC Address Table16KSwitching MethodStore and ForwardVLAN Support802.1Q tagged based VLAN, up to 255 VLAN groupsQ-in-Q tunnelingPrivate VLAN Edge (PVE)MAC-based VLANProtocol-based VLANVoice VLANMVR (Multicast VLAN Registration)Up to 255 VLAN groups, out of 4094 VLAN IDsJumbo Frames10KBDetailsBuffer Memory32MBProtocolsRouting Protocols:IPv4 software static routingIPv6 software static routingSecurityIEEE 802.1X Port-based / MAC-based network access authenticationBuilt-in RADIUS client to cooperate with the RADIUS serversTACACS+ login users access authenticationRADIUS / TACACS+ users access authenticationIP-based Access Control List (ACL)MAC-based Access Control ListSource MAC/IP address bindingDHCP snooping to filter distrusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksIP address access management to prevent unauthorized intruderPoEPoE Standard: IEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply Type: End-spanPoE Power OutputIEEE 802.3af Standard: Per port 48V - 51V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard: Per port 51V - 56V DC (depending on the power supply), max. 36 wattsPower Pin Assignment: 1/2 (+), 3/6 (-)PoE Power Budget: Dual power input: 240W maximum (depending on power input)Max. number of Class 2 PDs: 8Max. number of Class 3 PDs: 8Max. number of Class 4 PDs: 8SNMPYesQoSTraffic classification based, strict priority and WRR8-level priority for switching:Port number802.1p priority802.1Q VLAN tagDSCP / ToS field in IP packetLACPYesLayer3Port Mirroring1-to-1 monitorLEDsSystem:Power 1 (Green)Power 2 (Green)Fault Alarm (Red)DIDO (Red)Per 10/100/1000T RJ45 PoE+ Ports:PoE-in-Use (Orange)LNK/ACT (Green)Per SFP Interface:100 LNK/ACT (Orange)1000 LNK/ACT (Green)Per SFP+ Interface:10G LNK/ACT (Orange)1000 LNK/ACT (Green)ButtonReset Button:< 5 sec: System reboot> 5 sec: Factory defaultPowerDual 48 - 56V DC (>53V DC for PoE+ output recommended)Max. 11.1 watts / 37.87BTU (Power on without any connection)Max. 306 watts / 1043.46BTU (Full loading with PoE function)FeaturesFeaturesPhysical Port:8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection2 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP1 RJ45 console interface for basic management and setupIndustrial Case & Installation:IP30 aluminum caseSupports 6000V DC Ethernet ESD protectionDigital Input & Digital Output: 2 Digital Input (DI)2 Digital Output (DO)Integrate sensors into auto alarm systemTransfer alarm to IP network via email and SNMP trapLayer 2 Features:Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link AggregationProvides port mirror (1-to-1)Port mirroring to monitor the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loopsLayer 3 IP Routing Features:Supports maximum 32 static routes and route summarizationMulticast:Supports IGMP snooping v1, v2 and v3Supports MLD snooping v1 and v2Querier mode supportIGMP snooping port filteringMLD snooping port filteringMVR (Multicast VLAN Registration)Management:Switch Management InterfacesFour RMON groups (history, statistics, alarms, and events)IPv6 IP address/NTP/DNS managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP for IP address assignmentFirmware upload/download via HTTP/TFTPDHCP RelayDHCP Option 82User Privilege levels controlNetwork Time Protocol (NTP)Link Layer Discovery Protocol (LLDP)Dimensions & WeightDimensions5.98" x 2.83" x 4.21"Weight3.72 lbs.EnvironmentalTemperatureOperating: -40 - 75 degree Celsius Storage: -40 - 85 degree CelsiusHumidity5% - 95%, Non-condensingShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.Frooition www.frooition.com | No-js Template | design, store design, shop design, template design, listing design (ver:froo_no_js)This listing is currently undergoing maintenance, we apologise for any inconvenience caused.
