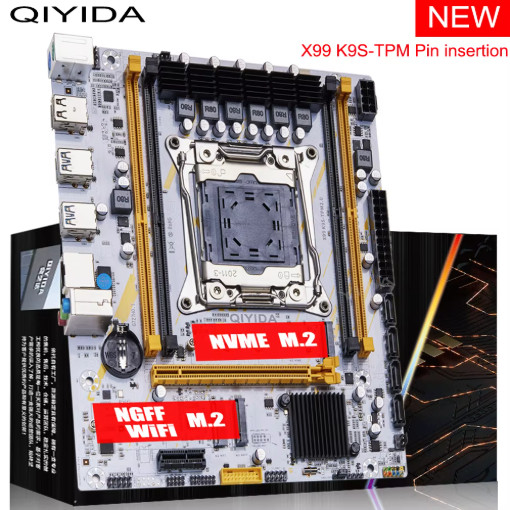

QIYIDA X99 Micro-ATX motherboard designed for Intel Xeon processors using the LGA2011-3 socket. It supports DDR4 memory, M.2 storage, SATA 3.0, USB 3.0, and PCIe expansion.
Key Features:
* Brand: QIYIDA* Model: X99* Chipset: Intel X99 / C612 platform* Socket: LGA2011-3* Form factor: Micro-ATX* Supports Intel Xeon E5 V3 and V4 series processors* 4 x DDR4 memory slots* Maximum memory capacity: up to 128GB* DDR4 2133/2400/2666/3200MHz support* Supports non-ECC, ECC and registered ECC memory* 2 x M.2 slots* Supports NVMe and NGFF M.2 storage* SATA 2.0 and SATA 3.0 support* 1 x PCIe 3.0 x16 slot* 1 x PCIe x1 slot* 2 x PCI slots* USB 2.0 and USB 3.0 support* 1 x RJ45 LAN port* 24-pin + 8-pin power connectors* No integrated graphics* Approximate size: 215 x 186mm* TPM 2.0 support with compatible MSI 14-pin specification
Memory Installation:
* Yellow slots are the primary memory slots.* With one module, use slot 1 or 4.* With two modules, use the primary yellow slots.* The black slots should not be used alone.* Use matching memory specifications and avoid mixing different types or specifications.
M.2 Installation:
* NVMe/NGFF M.2 functionality may require changing the motherboard jumpers according to the selected storage type.
Package Includes:
* 1 x QIYIDA X99 Motherboard* 1 x Cooler Adapter* 1 x SATA Cable
Important Notes:
* Motherboard is new.* CR2032 battery is not included.* A quality power supply of at least 500W is recommended.* Different production batches may have minor differences in slot colors, SATA placement, external design, or board version.* Minor marks from assembly or testing may be present and do not indicate refurbished condition.* Please verify CPU, RAM, storage, case, and power supply compatibility before purchase.
