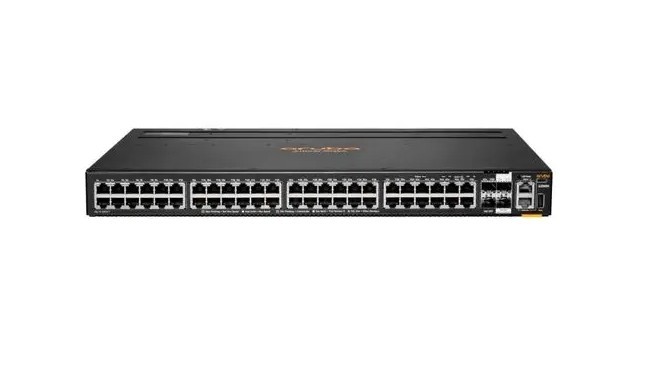

Product Overview Of HPE R9Y04ADevice Specifications

• Type: Managed Switch
• Port Configuration: 48 Ports
• Layer: L3 Switching
• Enclosure: Rack-mountable 1U with Side-to-Side Airflow

Port Features

• Ethernet Subtype: Gigabit Ethernet
• PoE Ports: 48 x 10/100/1000 (PoE+)
• Uplink Ports: 4 x 1 Gigabit / 10 Gigabit SFP+
• Power Over Ethernet: PoE+
• Power Budget: 740 Watts

Performance Metrics

• Switching Capacity: 176 Gbps
• Throughput: 98.6 Mpps
• Latency: 1.9 μs (1 Gbps) / 1.8 μs (10 Gbps)

Capacity and Memory

• Switched Virtual Interfaces (SVIs): 16
• IPv4 ACL Entries: 256 (Ingress)
• IPv6 ACL Entries: 128 (Ingress)
• MAC ACL Entries: 256 (Ingress)
• IGMP Groups: 512
• MLD Groups: 512
• IPv4 Host Table: 1024
• IPv6 Host Table: 512
• IPv4 Unicast Routes: 512
• IPv6 Unicast Routes: 512
• Packet Buffer Size: 12.38 MB
• MAC Address Table Size: 8192 Entries
• Jumbo Frame Support: 9220 Bytes

Routing and Management Protocols

• Supported Routing Protocols: IGMPv2, IGMPv3, MLDv2
• Remote Management: SNMP (v1, v2, v3), RMON, CLI
• Encryption Standards: SSL
• Authentication Methods: SSH, RADIUS, TACACS+, SSH2

Advanced Features

• Layer 2 Switching
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Uni-directional Link Detection (UDLD)
• Class of Service (CoS)
• Type of Service (ToS)
• Rapid PVST+ (RPVST+)
• Link Layer Discovery Protocol
• Unsupported Transceiver Mode (UTM)
• Address Resolution Protocol

Compliance and Standards

• IEEE 802.3
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3at
• IEEE 802.3az
