RAKwireless WisBlock Starter Kit US915 Base RAK19007 + Core RAK4630/RAK4631 (SEE PICTURES)

Description: RAK19007 + Core RAK4630/RAK4631US915, PID: 116013

Key Features

RAK4631 and RAK4631 Voice Processing: LoRaWAN® 1.0.2 protocol stack (supports Class A & C)

RAK4631 RUI3: LoRaWAN® 1.0.3 protocol stack (supports Class A, B & C)

Bluetooth Low Energy 5.0 protocol stack

Nordic nRF52840:

• Ultra-low-power MCU

• 32-bit ARM® Cortex-M4F CPU

• 64MHz CPU clock

• 1 MB Flash, 256 KB RAM

Wide range of connections:

• I2C, SPI, Analog inputs,

• Digital inputs and outputs

Semtech SX1262:

• Low power high range

• LoRa® transceiver

Product DescriptionWisBlock Starter Kit

Start off the WisBlock journey with this bundle kit: the WisBlock Starter Kit. The RAK WisBlock Starter Kit provides a structured entry point into modular IoT hardware evaluation. It serves as a modular IoT starter kit for early-stage device prototyping and connectivity testing.

This bundle includes the WisBlock Base RAK19007 and a selectable WisBlock Core module. Together, they form a WisBlock development kit designed for evaluating wireless connectivity, firmware behavior, and power performance without custom hardware design. It functions as a LoRaWAN development kit with BLE for multi-protocol IoT evaluation.

The RAK4631 WisBlock LPWAN is a WisBlock Core module which delivers a powerful Nordic nRF52840 MCU with BLE 5.0 paired to the latest LoRa® transceivers from Semtech, the SX126x series.

Compared to the older SX127x series the Semtech SX126x transceivers offer improved power consumption and the improved power amplifier can now transmit at up to +22dBm, with a total link budget up to 170dB for extended communication range. This makes the RAK4631 our best ever long range capable, ultra-low-power communication solution.

Designed for global deployment, the RAK4631 WisBlock Core comes in two variants, RAK4631(H) supporting ISM bands from 779-923MHz, including those typically used in Europe, USA, India, and the RAK4631(L) variant for the 433-470Mhz bands aimed at China and 433Mhz specific deployments.

The module also includes a temperature-controlled crystal oscillator (TXCO) for correct operation across a wide range of temperature and bandwidth requirements as well as multiple communication interfaces including UARTs, I2C, SPI, ADC, USB and GPIOs.

RAK4631 together with one of our WisBlock Base modules can be easily expanded with many available sensors and IO boards. This is the ideal LoRa® end node for battery and/or solar-powered applications in remote locations.

The Arduino version can be easily programmed with the Arduino IDE or the PlatformIO extension for IDE's like Atom, MS Visual Studio Code, or Clion using our Arduino BSP. Please check our RAK4631

The RUI3 version can be easily programmed with the Arduino IDE or Visual Studio using our RUI3 Arduino BSP. Please check our RAK4631-R

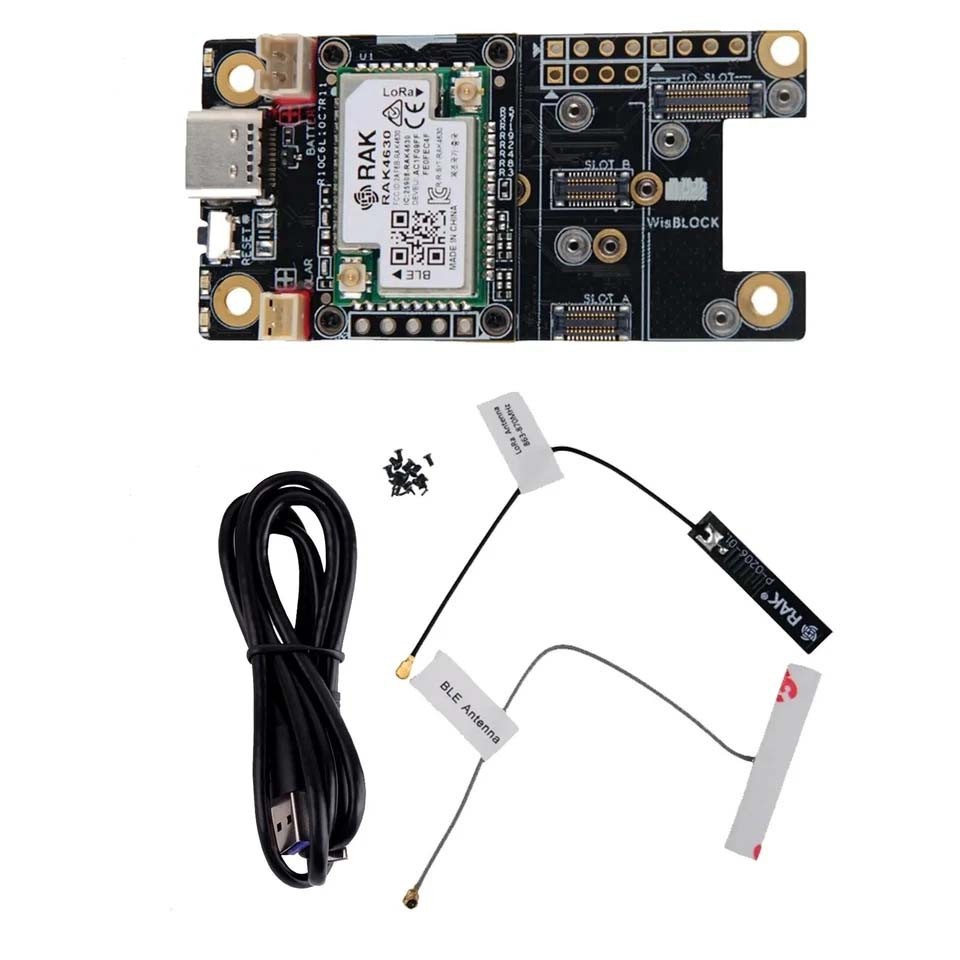

Package Inclusion

• 1pc WisBlock Base (RAK19007)
• 1pc WisBlock Core (RAK4631) contains RAK4630 already soldered
• 1pc IPEX LoRa PCB Antenna
• 1pc IPEX BLE PCB Antenna
• Assembly Screws
  15 pc M1.2*3 Screw
  5 pc M2.5*4 Screw
• USB Type C to Type A Cable
• US915 915 MHz version/AU915 compatible also- boards can be used in EU but will require a separate 868 Mhz antenna

Included in this Sale:

One WisBlock Starter Kit US915 Base RAK19007 + Core RAK4630/RAK4631 New!!,ONLY!
