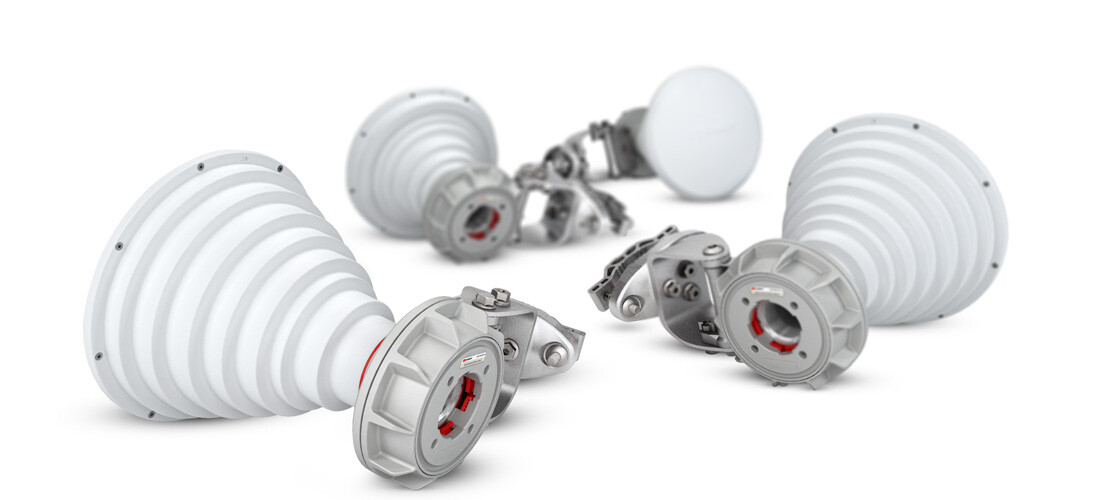

Symmetrical Horn TP Antennas are scalar horn antennas with a symmetrical beam radiation pattern and game-changing TwistPortTM (TP) connector. Deployed in the field since 2014, they solve major weak points of mainstream sector antenna technologies and provide excellent noise rejection, network scalability, and throughput increase.

Approved by tens of thousands of installations all around the globe, RF elements Symmetrical Horn TP Antennas are the new standard for fast and sustainable wireless.

Symmetrical Horn Antennas have a symmetrical beam pattern with no sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense radio co-location.

Symmetrical Horn TP Antennas Gen2 feature our industry-changing TwistPort™ connector, a patent-pending quick-locking waveguide port. TwistPort™ is virtually lossless and revolutionary easy to use.

Symmetrical Horn TP Antennas Gen2 feature multiple improvements on RF performance and industrial design, incl. optically lighter antenna body and significantly improved antenna bracket. Radome is made of more resistant material and the whole range of Gen2 antennas only uses two different radome sizes.

Performance

Frequency Range: 5180-6400 MHz
Gain: 14.3 dBi
Azimuth Beam Width -3 dB: H 33°/V 33°
Elevation Beam Width -3 dB: H 33°/V 33°
Azimuth Beam Width -6 dB: H 50°/V 50°
Elevation Beam Width -6 dB: H 50°/V 50°
Front-to-Back Ratio: 33 dB
