RR-6/8RX Universal 19 inch Satellite Receiver Rack.

Holds 6 or 8 Satellite Receivers (Model Dependent).

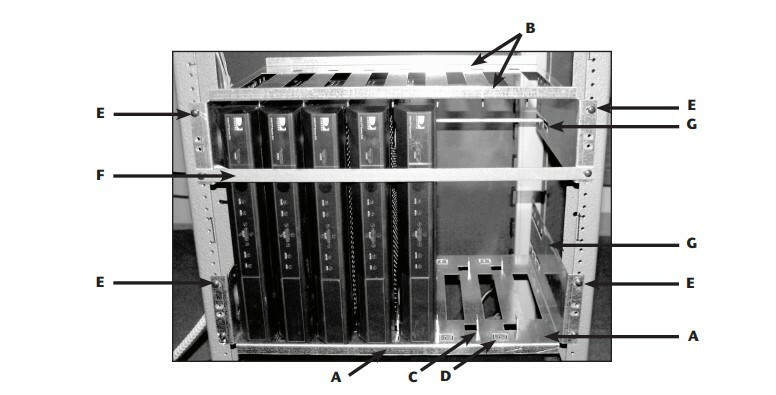

Mounting Instructions

1. Bend appropriate locking tabs up on bottom (A) and top (B) receiver trays using flat screwdriver.

2. Bend up inside tabs (C) for installation of up to either (8) receivers with thickness of 2 1/8" or

3. Bend up outside tabs (D) for installation of up to six (6) receivers thicker than 2 1/8" (up to 2 7/8").

4. Fasten trays onto headend rack (E) using mounting screws.

5. Place rear retaining rod (G) onto slot of either top or bottom tray.

6. Slide receivers into tray slots.

7. Attach front retaining bar (F) to rack.
