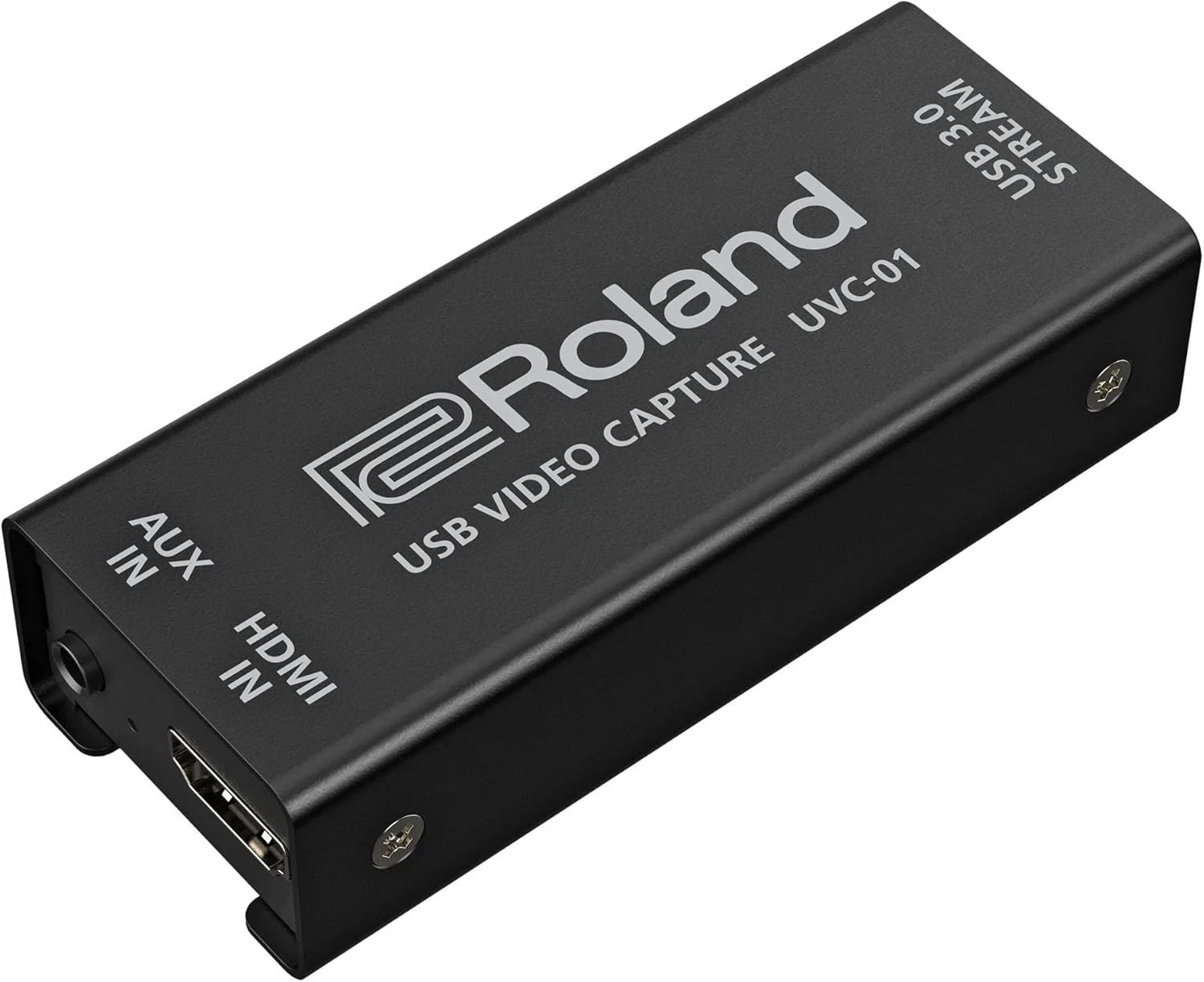

Roland UVC-01 HDMI to USB 3.0 Video Capture | 1080p/60p | Plug & Play | UVC/UAC | AUX Audio Input

Overview

The Roland UVC-01 is a high-quality HDMI-to-USB 3.0 video capture device that converts the HDMI output of cameras and video switchers to USB, making it easy to live-stream and record on a PC.

• Driver-free plug & play: Compatible with UVC (USB Video Class) and UAC (USB Audio Class)—simply connect to a PC and it's automatically recognized as a webcam.
• High image quality with low latency: Supports uncompressed Full HD video up to 1920 × 1080/60p, enabling streaming with smooth motion.
• Built-in hardware encoding: Does not load the PC's CPU, so the system stays extremely stable during streaming.
• Analog audio input (AUX IN): Accepts a separate audio signal (3.5 mm stereo mini) from a smartphone or mixer, mixed with the HDMI audio.
• Excellent portability: A pocket-sized device weighing just 96 g, with a rugged design. Powered by USB bus power, so no external power supply is needed.

Specifications

• Input Terminals: HDMI Type-A × 1, AUX IN (3.5 mm stereo mini) × 1
• Output Terminal: USB STREAM (USB 3.0 Type-B) × 1
• Supported Resolution: Up to 1920 × 1080/60p (multi-format compatible)
• Power / Current Draw: Powered via USB port / 500 mA
• External Dimensions: 90 (W) × 37 (D) × 23 (H) mm
• Weight: 96 g (unit only)
• Included Items: Instruction manual, USB 3.0 cable

⚠️ Notes for Use

• HDCP (copyright protection) not supported: Video with copy protection (Blu-ray and some game consoles) cannot be input.
• Microphone cannot be connected directly: AUX IN is a line-input specification, so microphones requiring plug-in power cannot be connected directly (must be routed through a mixer or similar).
• USB 3.0 required: To transmit at the device's intended quality (1080p/60p), connection to a USB 3.0 port on the PC is required.
