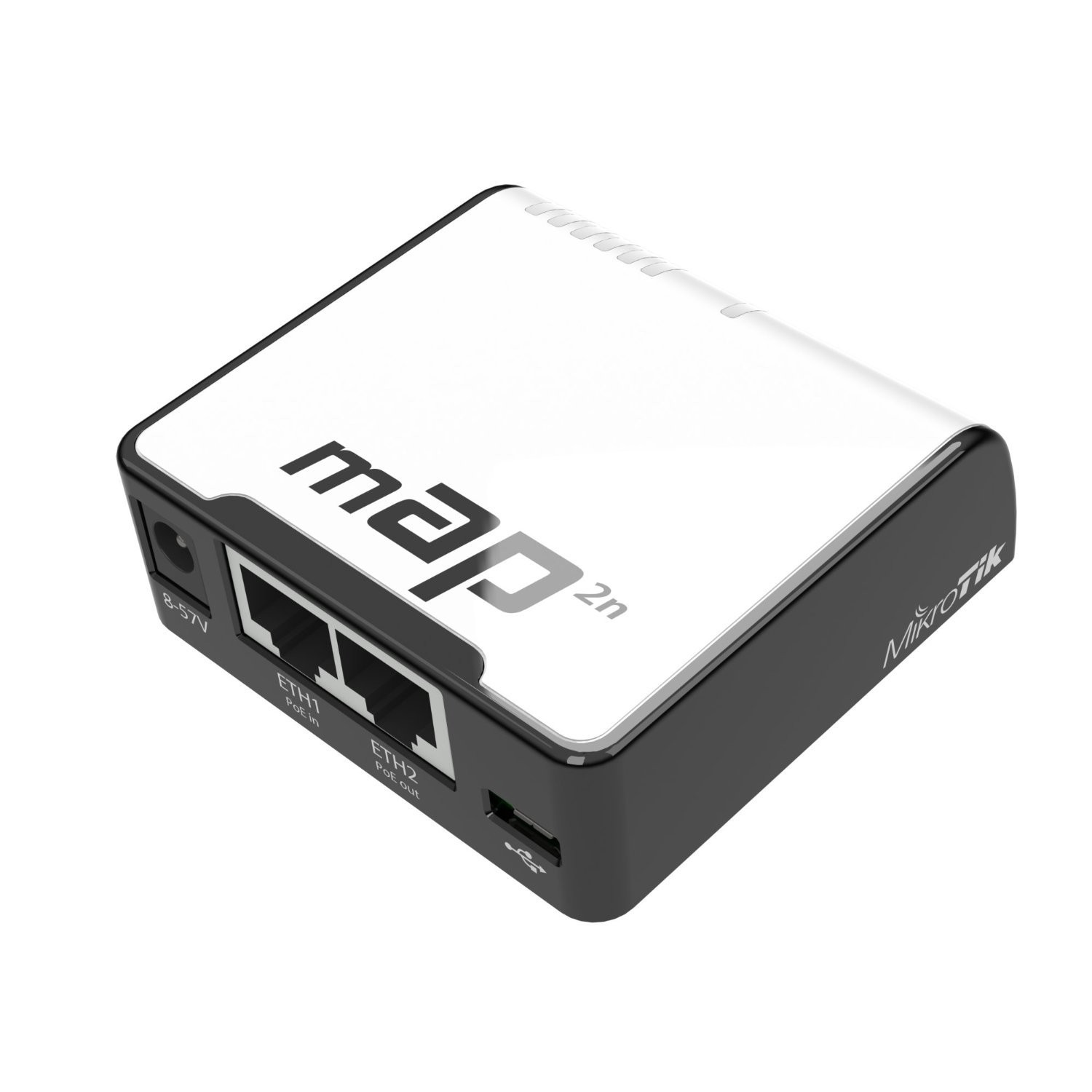

Mikrotik RouterBoard mAP RBmAP2nD micro Access Point wireless Dual-Chain

• The mAP also known as RBmAP2nD is a micro wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities
• It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack
• The mAP also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it
• 650MHz CPU, 64MB RAM, 2xEthernet, PoE out, Antenna 1.2dBi built in, Dimensions 68x68x19mm, Ethernet 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
• Included parts: 24V 0.8A power adapter, microUSB B to USB A adapter

Model: RBmAP2nD (10 UNITS) Mikrotik Wireless Dual-Chain 2.4GHz Micro Access Point The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. Technical Description
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 68x68x19mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage FLASH
Tested ambient temperature -20°C to 70°C
MicroUSB input Voltage 5-5 V
PoE in 802.3af/at
PoE in input Voltage 12-57 V
PoE out Passive PoE
PoE-out ports Ether2
Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB)
DC jack input Voltage 8-57 V
Max out per port output (input < 30 V) 0.5 A
Max total out (A) 0.5 A
Max power consumption 5 W
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 1.2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
10/100 Ethernet ports 2
Number of USB ports 1
USB Power Reset Yes
USB slot microUSB AB
Max USB current (A) 1
PCB temperature monitor Yes
Voltage Monitor Yes
