SAPPHIRE NITRO+ Radeon RX 580 8GB GDDR5 OC Gaming GPU 11265-01 – 83176

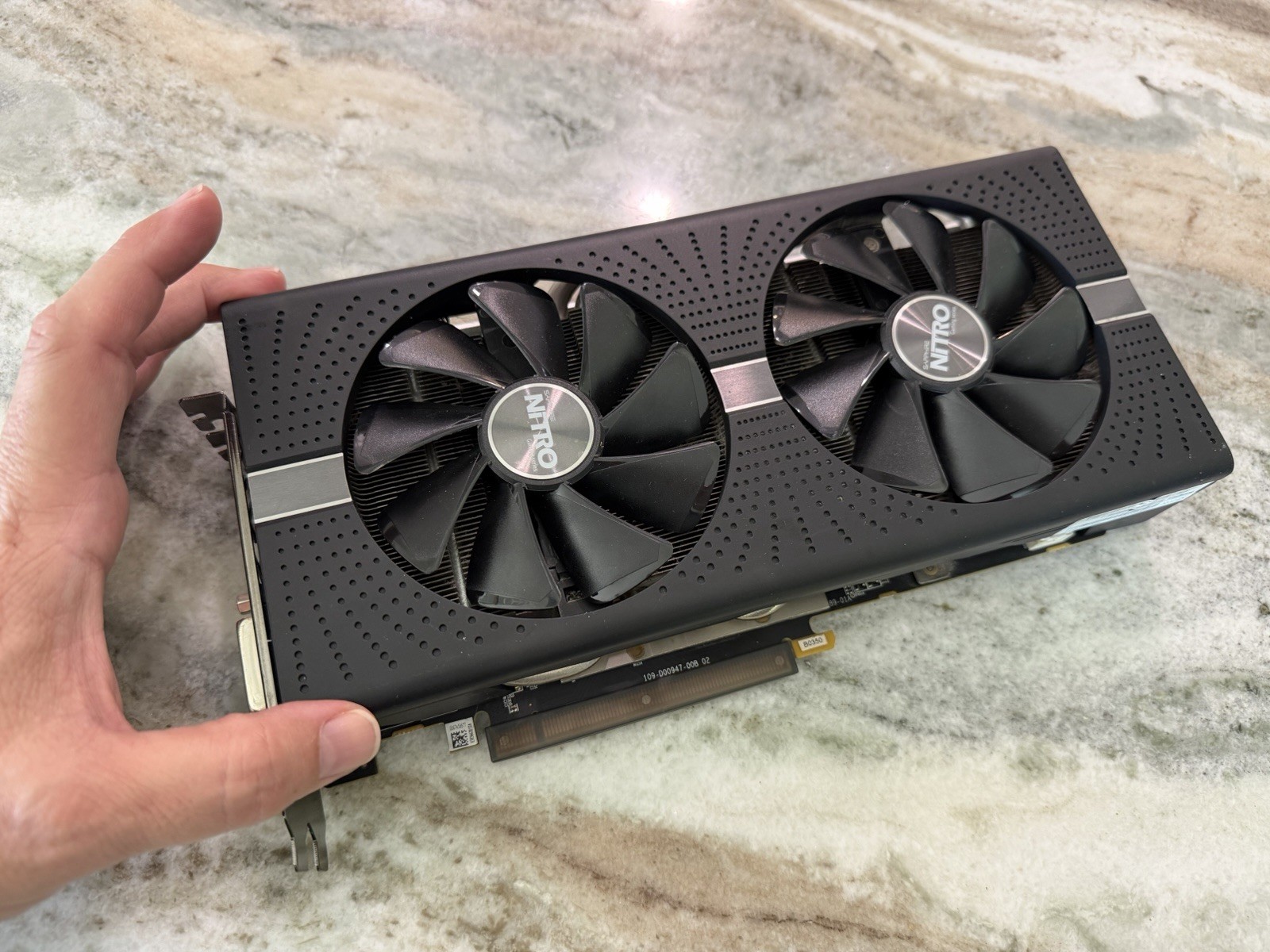

For sale is a SAPPHIRE NITRO+ Radeon RX 580 8GB GDDR5 OC Graphics Card, SKU 11265-01, Part Number 299-1E366-001SA, Serial Number A174800083176, in excellent pre-owned condition. This is the full 8GB GDDR5 NITRO+ factory-overclocked version of the AMD Radeon RX 580 featuring SAPPHIRE’s premium Dual-X cooling system, metal backplate and dual BIOS switch. The actual graphics card shown in the photographs is the card being sold.
SPECIFICATIONS & FEATURES
* Brand: SAPPHIRE
* Product Line: SAPPHIRE NITRO+
* GPU Manufacturer: AMD
* Series: AMD Radeon RX 500 Series
* GPU Model: Radeon RX 580
* SAPPHIRE Model: NITRO+ Radeon RX 580 8GB
* SKU: 11265-01
* Part Number: 299-1E366-001SA
* Edition: NITRO+ Factory Overclocked
* Architecture: AMD Polaris / 4th Generation Graphics Core Next (GCN)
* Manufacturing Process: 14nm FinFET
* Stream Processors: 2,304
* Boost Clock: Up to 1411 MHz
* Video Memory: 8GB GDDR5
* Memory Interface: 256-bit
* Effective Memory Clock: 8000 MHz
* Memory Bandwidth: 256 GB/s
* Interface: PCI Express 3.0 x16
* Cooling: SAPPHIRE Dual-X Cooling
* Fans: Dual ball-bearing fans
* BIOS: Dual UEFI BIOS / Physical BIOS Switch
* Power Connectors: 1 × 8-pin + 1 × 6-pin PCIe
* Power Consumption: Less than 235W
* Recommended Power Supply: 500W or greater
* Form Factor: 2.2-slot ATX
* Dimensions: Approximately 260 × 135 × 43 mm
* DirectX 12 Support
* Vulkan API Support
* OpenGL 4.5
* OpenCL 2.0
* AMD FreeSync Support
* Radeon VR Ready Premium
* AMD LiquidVR
* AMD Eyefinity
* Radeon Chill
* Virtual Super Resolution
* HDR Support
SAPPHIRE NITRO+ PREMIUM DESIGN
This is not the basic RX 580 cooler design. It is SAPPHIRE’s premium NITRO+ version, designed with upgraded cooling, power delivery and enthusiast-oriented features.
The NITRO+ RX 580 uses SAPPHIRE’s Dual-X cooling system with dual ball-bearing fans and a substantial heatsink/heat-pipe assembly to efficiently remove heat from the GPU.
The card also incorporates Intelligent Fan Control III and Precision Fan Control, helping balance cooling performance and fan noise.
NITRO+ COOLING & BUILD QUALITY
SAPPHIRE equipped this model with several premium cooling and durability features, including:
* Dual-X Cooling Technology
* Dual ball-bearing fans
* NITRO Quick Connect fan system
* NITRO Fan Check
* Intelligent Fan Control III
* Precision Fan Control
* Robust VRM cooling
* Large heat-pipe cooling assembly
* Long-life polymer capacitors
* Fuse protection
* Heavy-duty metal backplate
The large metal backplate adds rigidity to the graphics card while also assisting with heat dissipation.
DUAL BIOS SWITCH
This NITRO+ model features a physical BIOS switch, which can be seen directly on the card in the photographs.
The Dual UEFI BIOS design is a desirable enthusiast feature and provides additional flexibility compared with many standard RX 580 graphics cards.
8GB GDDR5 MEMORY
The Radeon RX 580 is equipped with a full 8GB of GDDR5 video memory connected through a 256-bit memory interface.
Memory operates at an effective 8000 MHz, providing approximately 256 GB/s of memory bandwidth.
The 8GB VRAM configuration is particularly useful compared with lower-memory versions of older GPUs when running games with higher-resolution textures or other applications that can make use of additional graphics memory.
1080P GAMING PERFORMANCE
The Radeon RX 580 8GB became one of AMD’s most popular mainstream gaming GPUs and remains useful for 1080p PC gaming, especially when graphics settings are adjusted appropriately for newer titles.
The SAPPHIRE NITRO+ version is particularly desirable because its GPU is factory overclocked to a boost frequency of up to 1411 MHz.
It is well suited for:
* 1080p gaming
* 1080p Medium/High settings depending on the title
* Esports and competitive gaming
* Older AAA games at High/Ultra settings
* High-refresh-rate esports titles with optimized settings
* 1440p gaming in lighter or older titles with appropriate settings
It remains a solid option for games such as:
Fortnite • GTA V • Rocket League • Rainbow Six Siege • Overwatch • Minecraft • Valorant • Counter-Strike • Apex Legends • Forza and many other PC titles
Actual FPS will vary significantly depending on the game, resolution, graphics settings, CPU, RAM, operating system and driver version.
DISPLAY CONNECTIVITY
The SAPPHIRE NITRO+ RX 580 provides an unusually versatile selection of display connections:
* 2 × HDMI
* 2 × DisplayPort 1.4
* 1 × DVI-D
* Up to 5 display outputs supported
Maximum supported resolutions include:
* DisplayPort: Up to 5120 × 2880 @ 60Hz
* HDMI: Up to 4096 × 2160 @ 60Hz
* DVI: Up to 2560 × 1600 @ 60Hz
The dual HDMI outputs were also designed to make the card convenient for VR configurations while retaining connections for conventional displays.
AMD POLARIS / RADEON RX 500 SERIES
This card uses AMD’s Polaris architecture with 4th Generation Graphics Core Next (GCN) technology and a 14nm FinFET manufacturing process.
The RX 580 contains 2,304 stream processors and supports modern graphics APIs including DirectX 12 and Vulkan.
Additional AMD technologies include:
* Radeon FreeSync
* Radeon Chill
* Radeon VR Ready Premium
* AMD LiquidVR
* AMD Eyefinity
* Virtual Super Resolution
* HDR
* AMD PowerTune
* TrueAudio Next
NITRO GLOW RGB
The NITRO+ series also features SAPPHIRE NITRO Glow RGB LED lighting, adding customizable illumination to the graphics card when installed in a compatible gaming system.
POWER REQUIREMENTS
This higher-performance NITRO+ RX 580 uses:
1 × 8-pin PCIe power connector + 1 × 6-pin PCIe power connector
SAPPHIRE recommends a 500-watt or greater power supply.
Power consumption is rated at less than 235 watts.
Buyers should verify that their power supply has the required PCIe power connectors before purchasing.
CONDITION
Excellent pre-owned condition.
The card presents very well overall, with the photographs showing the actual condition of the GPU.
* Clean overall condition
* Premium SAPPHIRE NITRO+ model
* 8GB GDDR5 version
* Dual-X cooling system
* Dual ball-bearing fans
* Heavy-duty metal backplate
* Dual BIOS switch
* Factory-overclocked model
* Actual item shown in photographs
As with any pre-owned computer component, please review all photographs carefully for the exact cosmetic condition.
EXACT MODEL INFORMATION
For complete transparency and to avoid confusion regarding which RX 580 version is being sold:
Brand: SAPPHIRE
Series: AMD Radeon RX 500 Series
GPU: AMD Radeon RX 580
Product: SAPPHIRE NITRO+ Radeon RX 580 8GB GDDR5
SKU: 11265-01
Part Number: 299-1E366-001SA
Memory: 8GB GDDR5 / 256-bit
Factory Boost Clock: Up to 1411 MHz
This listing is specifically for the SAPPHIRE NITRO+ RX 580 8GB, SKU 11265-01 and should not be confused with the 4GB RX 580, SAPPHIRE PULSE RX 580, or other RX 580 variants.
INCLUDED WITH PURCHASE
* 1 × SAPPHIRE NITRO+ Radeon RX 580 8GB GDDR5 Graphics Card
Only the items shown in the photographs are included.
Please review all photos carefully, as they show the actual graphics card you will receive.
Please verify compatibility with your motherboard, PC case, power supply, operating system and other components before purchasing.
