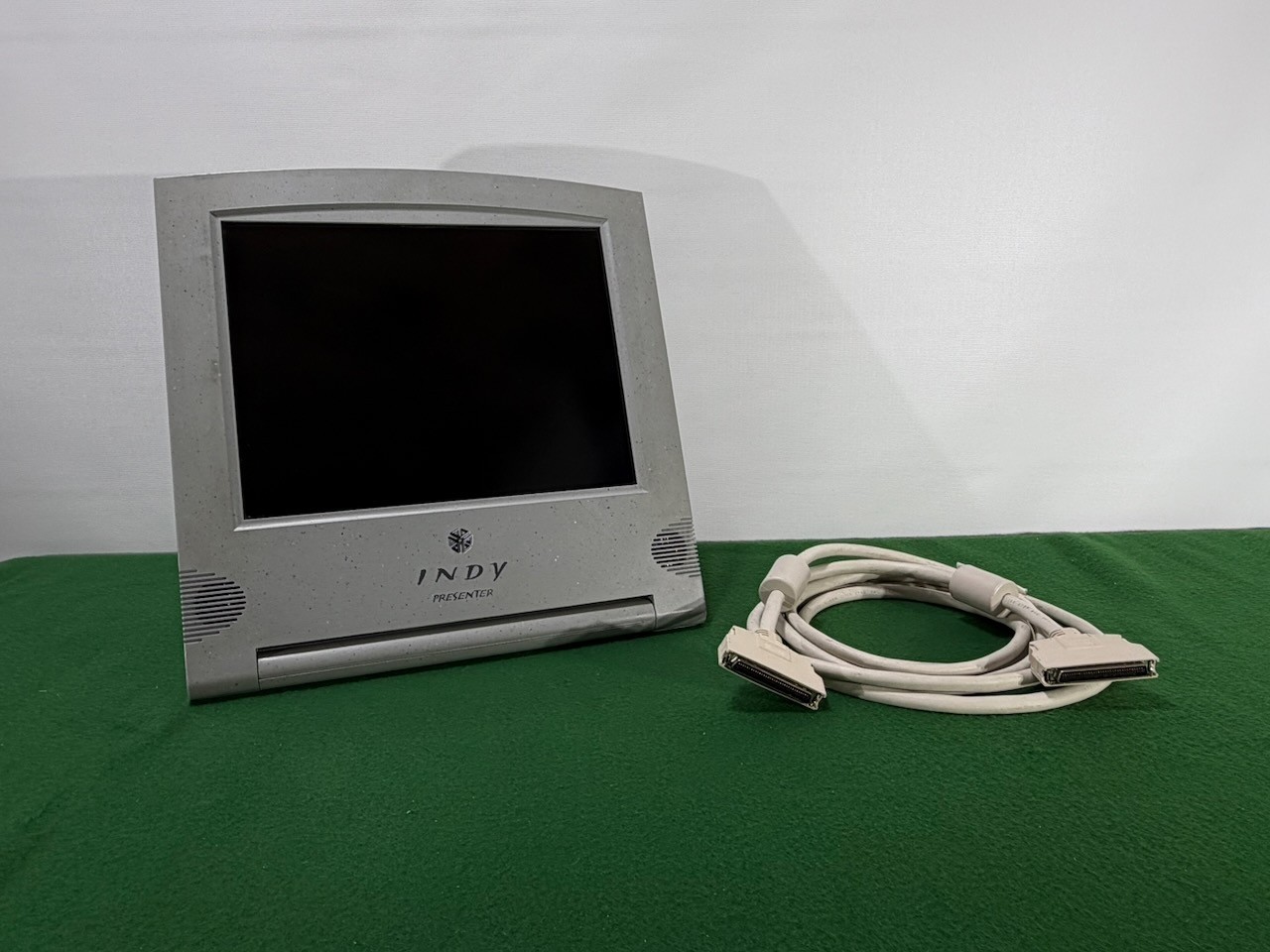

SGI Silicon Graphics Indy Presenter flat panel display, model CMN B010 (P/N 013-9119-001), with its original 10-ft interface cable.
The Indy Presenter was SGI's portable flat panel companion to the Indy workstation. It's a 12-inch active-matrix color LCD with built-in stereo speakers. The backlight panel is removable, so the display can be laid on an overhead projector for group presentations. Few of these turn up for sale, and fewer still with the interface cable.
INCLUDES THE INTERFACE CABLE
- SGI P/N 018-8213-001 Rev E (label worn but legible)
- 10 ft (measures 120 in), with the same 68-pin 3M connector on each end and ferrite beads at both ends
- It seats correctly in the Presenter's input port (see photos). It matches SGI's Owner's Guide description of the Presenter interface cable: a 10-ft shielded cable with 34 twisted pairs and identical connectors on each end.
- The cable is untested.
YOU WILL ALSO NEED AN ADAPTER BOARD
The Presenter connects to an Indy through an Indy Presenter Adapter Board. According to SGI's documentation, systems with standard Indy graphics use the Indy Presenter Adapter Board, and systems with XZ graphics use the Indy Presenter XZ Adapter Board. The adapter board is NOT included. Please confirm your system can drive the Presenter before buying.
UNTESTED, SOLD AS-IS
- I don't own an Indy or an adapter board, so I haven't been able to check for a picture.
- With the unit plugged into AC power and switched on, the audio circuit can be heard clicking on.
- There's no visible power light. According to SGI's documentation, the Presenter powers up when the connected Indy is turned on, so no picture or backlight is expected without a system attached.
- I can't confirm that the display, backlight, speakers or video input work. Please buy or make an offer as if it may need repair.
COSMETIC CONDITION
- Light scuffs and scratches on the speckled gray housing, mostly on the lower front bezel and the base
- The reflector film around the backlight lamp at the top edge shows some wrinkling with age (visible with the backlight panel removed)
- Discoloration on the metal LCD frame along the lower edge
- Some light haze may be visible on the LCD surface in certain light
- The cable jacket shows age discoloration, and its paper label is wornPlease review all photos. They're part of the description.
WHAT'S INCLUDED
- Indy Presenter display (CMN B010)
- Removable backlight panel (SGI 013-9125-001, dated Aug. 25, 1995)
- 10-ft interface cable (SGI 018-8213-001)Not included: adapter board, AC power cord, computer. The Presenter takes a standard IEC power cord.
SHIPPING
Carefully packed with foam protection around the display. The handling charge in the shipping cost pays to insure the shipment for its full value and to require a signature on delivery. No returns. Please ask any questions before buying.
Also in my store: the original SGI IndyBag shoulder bag, made to carry the Indy and Indy Presenter together. Combined shipping is available if you buy both. Message me before purchase.
