NOTE before ORDER
☛The CH341A Programmer only part of 24 / 25 Series BIOS chip on the market, please check whether your BIOS chip is within the range of our products before placing an order (Tips: Please see the chip models and the tutorial before placing your order from github: /003)
If you cannot the tutorial, please send an via . ☛ Before buying, please check the location of the chip on the motherboard and whether there is enough space around the chip to put the clip. (The thickness of the end of the clip is 3mm and the width is 6mm.) Features:
Nowadays, many motherboards, routers, set-top boxes, LCD screens, game consoles and other chips are SOP8.
This SOP8 clip is a great solution for burning the chip without disassembling the chip, saving soldering time and making flash BIOS simpler and more efficient. Note for Test Clip:
1. The test clip can basically be used with many high-power programmers. When a programmer with a protected function is encountered, the clip cannot be read at normal voltage. You need to add a 3.3V voltage.
How to use: Hold the chip first, and add a 3.3V voltage to the pin corresponding to the 8th pin of the chip. Generally, the 3.3V power supply has wires, the VCC is connected to the clip, and the other wire is grounded.
2. Do not forcibly press down when clamping, first open the clip and clip it from the left and right sides of the chip.
When disassembling, please don’t pull it out directly. First separate the clips left and right, then take them out so that they won't break the tip of the clip. Package contains:

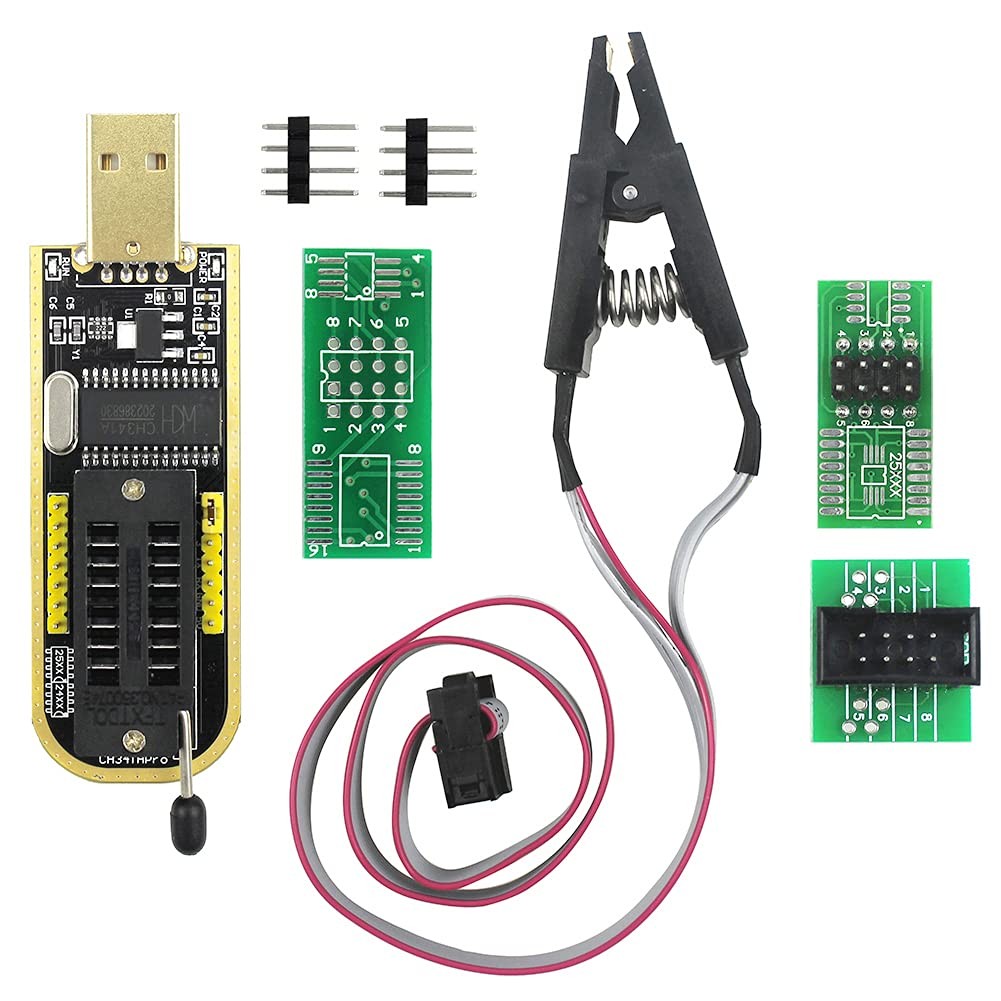

1 x CH341A Programmer
1 x SOP8 Test Clip
1 x 8Pin to 8Pin Converter
2 x SOP8 SOP16 to 8Pin Converter
2 x 2.54mm 4Pin header
The SOP8 clip enables in-circuit programming of without disassembling the chip, making flashing the BIOS simpler and more efficient.
The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software.
The CH341A programmer supports most of the 24/25 series SOP8 chips on the market, but not all of them. Please be sure to check whether your chip model is within the range in the product description before purchasing.
The SOP8 clip both wide body and narrow body SOP8 chip with 1.27MM Pitch.
We provide detailed PDF tutorials, CH341A software, and drivers, which will be sent to you by after the order. If you do not receive it, please send a message.
