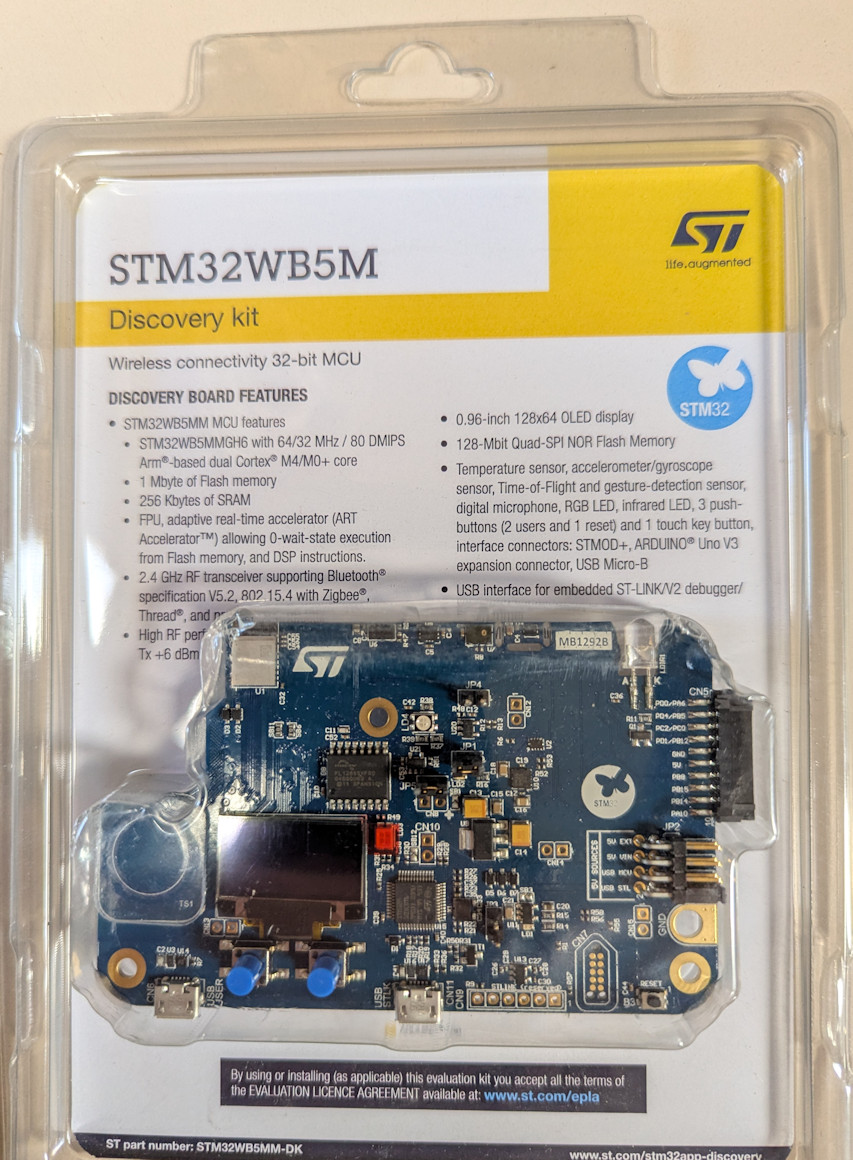

The STM32WB5MM-DK Discovery kit is designed as a complete demonstration and development platform for the STMicroelectronics STM32W5MMG module based on the Arm® Cortex®-M4 and Arm® Cortex®-M0+ cores.The STM32 device is a multi-protocol wireless and ultra-low-power device embedding a powerful and ultra-low-power radio compliant with the Bluetooth® Low Energy (BLE) SIG specification v5.2 and with IEEE 802.15.4-2011.The hardware features of the Discovery kits are available for users to develop their applications: Audio, USB, user buttons, and Bluetooth® Low Energy. Extension connectors allow easy connection of an ARDUINO® board for a specific application.An ST-LINK/V2-1 is integrated on the board, as an embedded in-circuit debugger and programmer for the STM32 MCU and the USB Virtual COM port bridge.
Key features

• STM32WB5MMG (1-Mbyte Flash memory, 256-Kbyte SRAM, in Module RF package)
• Dual-core 32‑bit (Arm® Cortex®-M4 and dedicated M0+ CPU for real-time radio layer)
• 2.4 GHz RF transceiver supporting Bluetooth® specification V5.2, 802.15.4 with Zigbee®, Thread®, and proprietary protocols
• 0.96-inch 128x64 OLED display
• 128-Mbit Quad-SPI NOR Flash Memory
• Temperature sensor
• Accelerometer/gyroscope sensor
• Time-of-Flight and gesture-detection sensor
• Digital microphone
• RGB LED
• Infrared LED
• 3 push-buttons (2 users and 1 reset) and 1 touch key button
• Board Uno V3 expansion connector
• USB user with Micro-B connector
• TAG10 10-pin footprint
• Flexible power-supply options: ST-LINK/V2-1 USB connector, 5 V delivered by ARDUINO® or external connector, USB charger, or USB power
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port
• Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package
• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
