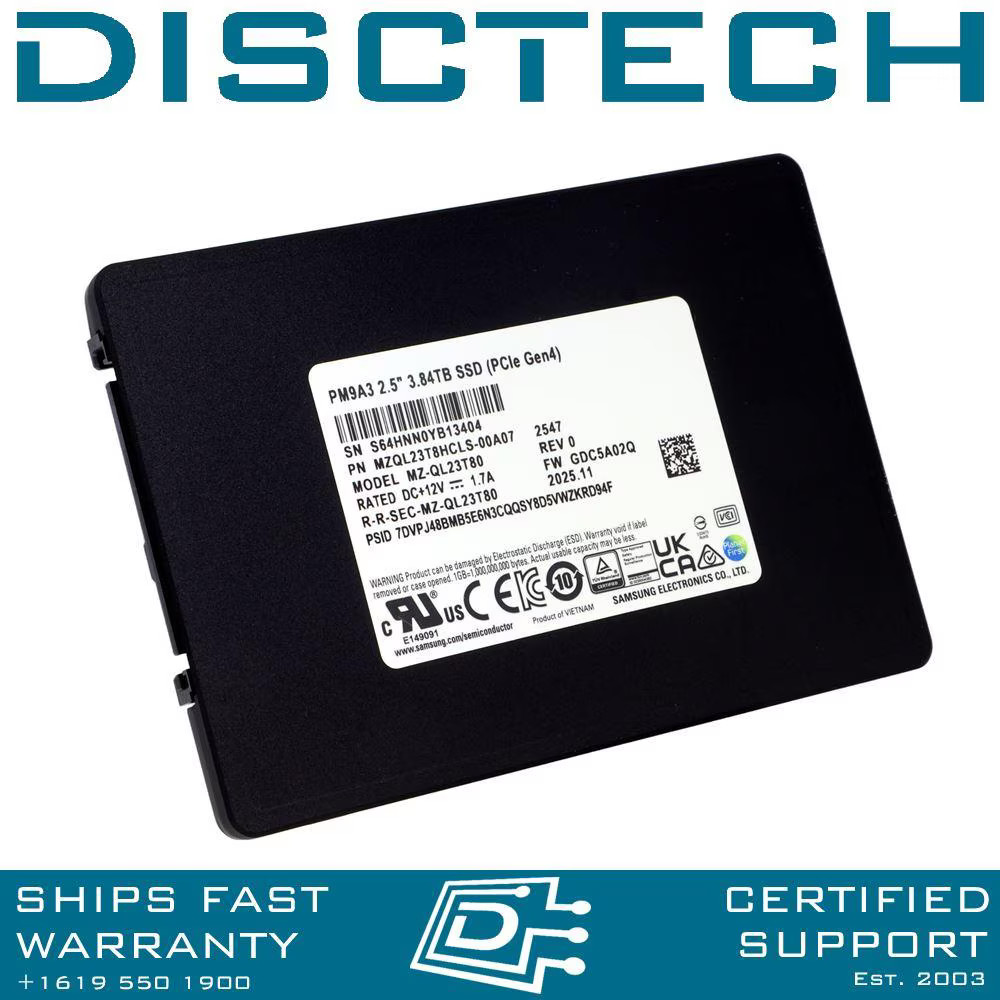

Samsung PM9A3 MZ-QL23T80 MZQL23T8HCLS-00A07 3.84TB U.2 NVMe Gen4 PCIe 4.0 x4 Read Intensive TCG Opal SED SSD - Brand NewBrand New

Samsung PM9A3 MZ-QL23T80 MZQL23T8HCLS-00A07 3.84TB U.2 NVMe Gen4 PCIe 4.0 x4 Read Intensive RI TCG Opal SED SSD - Brand New

Samsung PM9A3 NVMe PCIe SSD HighlightsHigh-Performance

PCI Express Gen 4 x4 interface delivers up to twice the read performance of PCIe Gen 3 SSDs, and dedicated hardware accelerators for three times the random write performance of the previous generation.

Enterprise Features

• Protects your data confidentiality and integrity with TCG encryption management
• Secure boot
• End-to-end data protection
• Power loss protection circuitry

Form Factor Flexibility

Available in a variety of form factors to meet the needs of multiple system types in your server deployment. All form factors are built using the same Samsung SSD controllers and V-NAND, for high volume availability and simplified SSD qualification.

Data Center Needs

Data center architects face challenging requirements when delivering reliable computing and storage resources at the lowest total cost. Data center servers require high levels of I/O performance to keep their CPUs fully utilized, and high system density, to minimize total cost. The storage systems that supply that I/O performance need to deliver consistent performance and latency to all tenant virtual machines and containers 24/7, 365 days a year.

Samsung provides data centers with solid-state drives (SSDs) that deliver exceptional performance in public cloud applications, such as infrastructure as a service (IaaS), content delivery networks (CDN), shared hosting, NoSQL databases, and cloud data storage. Compared to SATA SSDs, these high-performing NVMe SSDs deliver more than ten times the read performance and lower latency, while still maintaining SATA cost and low-power consumption per IOP.

As a pioneer in NVMe SSDs, Samsung has been delivering the advantages of industry standard NVMe performance longer than anyone else. Samsung also has the added advantage of being a vertically integrated supplier of SSDs, enabling the highest levels of quality and support.

FEATURESDRIVE CONFIGURATIONPERFORMANCE SPECIFICATIONSRELIABILITY SPECIFICATIONSENVIRONMENTAL SPECIFICATIONSPOWER REQUIREMENTSPHYSICAL DIMENSIONPCI Express Gen4Single port x4 lanes, Compliant with PCI Express Base Specification Rev. 4.0NVM ExpressCompliant with NVM Express Specification Rev. 1.4Power-Loss Data ProtectionEnhancedEnd-to-End Data ProtectionYesSSD Enhanced S.M.A.R.T.SupportedEncryptionHardware based AES-XTS 256-bit Encryption EngineWear LevelingStatic and DynamicComplianceRoHS / Halogen-Free, TCG Opal 2.0Form FactorU.2InterfacePCI Express Gen4 x4Bytes per Sector512 (default), 4096 BytesGen4Sequential Read (128KB)Up to 6800 MB/sSequential Write (128KB)Up to 4000 MB/sRandom Read (4KB, Sustained)Up to 1000K IOPSRandom Write (4KB, Sustained)Up to 200K IOPSLatency (Random Read/Write, typical)80/35 μsLatency (Sequential Read/Write, typical)20/20 μsDrive Ready Time (typical)8sUncorrectable Bit Error Rate1 sector per 1017 bits readMTBF2,000,000 hoursComponent Design Life5 yearsEndurance (3840/1920/960GB)1 DWPDTBW (@4KB Random Write)3840GB: 7008 TB
1920GB: 3504 TB
960GB: 1752 TBData Retention3 monthsTemperature, Case (Tc)Operating: 0 ~ 70°C
Non-operating: -40 ~ 85°CHumidity (non-condensing)5 ~ 95%Linear Shock (0.5ms, 1/2 sine wave)Non-operating: 1,500 GVibration (10 ~ 2,000 Hz, Sinusoidal)Non-operating: 20 GSupply Voltage / Tolerance12V ±5%Active (max. RMS)1.35WIdle (typical)Up to 4WWidth69.85 ± 0.25 mmLength100.20  ± 025 mmThickness7.0 +0.00/-0.50mmTWeight Up to 90 Part Numbers: MZQL23T8HCLS-00A07 MZQL23T8HCLS
