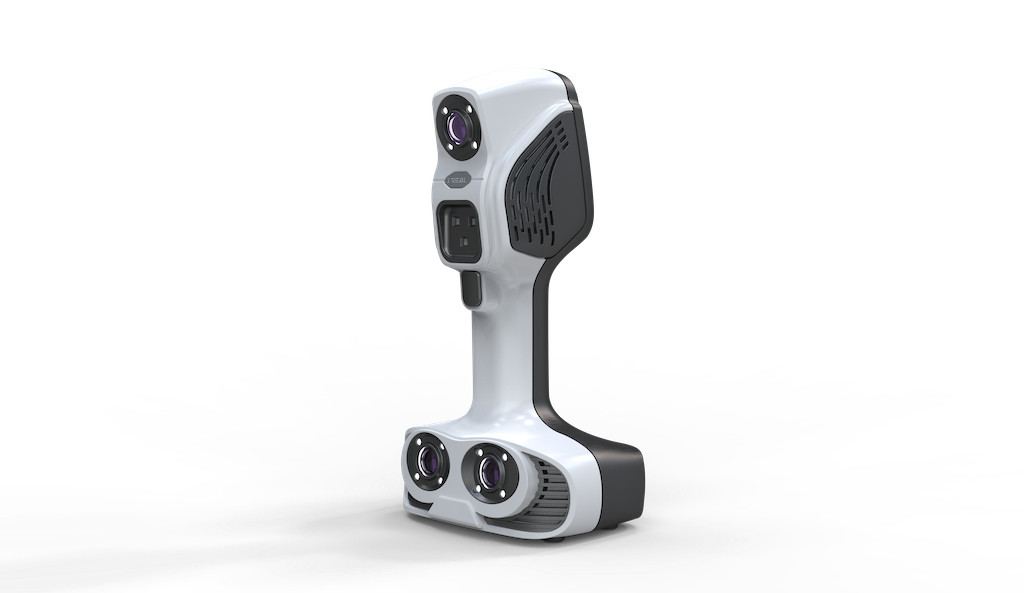

iReal 2E Color 3D Handheld Scanner

The iReal 2E Color 3D Handheld Scanner is a modern, compact device distinguished by its exceptional scanning accuracy. It is widely used in healthcare, medicine, culture, art, and any application requiring precise full-color 3D measurements. The scanner is specifically designed for capturing medium and large-sized objects. Furthermore, it utilizes eye-safe VCSEL infrared structured light technology, making it suitable for scanning the human body.

The iReal 2E Color 3D is available in white and gray. Its ergonomic design ensures comfortable operation, even during extended scanning sessions. Weighing only 850 g, it minimizes wrist fatigue and enhances portability. The device measures 140 × 94 × 258 mm and is suitable for both hobbyist and professional applications.

Technical Specifications – iReal 2E Color 3D Handheld Scanner

The iReal 2E Color 3D offers numerous advantages, combining high accuracy, a large scanning area, and fast data acquisition speeds. The scanner captures object data and transfers point clouds to dedicated software for image processing and model generation. It features an intelligent tracking system that enables marker-free scanning.

Advanced Measurement Performance

The iReal 2E Color 3D delivers a single-frame point accuracy of up to 0.100 mm. With a maximum scanning area of 850 × 800 mm, it effectively captures fine details on medium and large-sized objects. Its working distance ranges from 250 mm to 1000 mm, ensuring flexible and user-friendly operation.

Innovative Tracking Technology

The scanner incorporates an advanced tracking system that allows markerless scanning. Instead of relying on reference markers, it uses the unique geometric and texture features of the scanned object. The software automatically identifies and compensates for most errors caused by involuntary body movement, making it particularly effective for non-contact human body scanning.

High-Speed and Precise Scanning

The iReal 2E Color 3D provides outstanding data acquisition performance, capturing up to 1,500,000 points per second. It offers a resolution as fine as 0.2 mm and measurement accuracy of up to 0.1 mm. These capabilities enable rapid and detailed acquisition of both geometry and texture data.

VCSEL Structured Light Technology

The iReal 2E Color 3D utilizes eye-safe VCSEL infrared structured light technology. This eliminates the discomfort associated with bright visible light when scanning faces and hair, ensuring a safer and more comfortable scanning experience.

The iReal 2E Color 3D series represents a modern solution for non-contact 3D scanning. It enables highly accurate digitization of valuable and delicate artifacts, artworks, and cultural heritage objects, while preserving HD textures and 24-bit color information.

Applications of the iReal 2E Color 3D

The iReal 2E Color 3D is widely used in healthcare and medical applications due to its ability to safely scan the human body, including hair and other fine details. It is commonly used for the design and production of custom orthoses, prosthetics, and orthopedic collars.

The scanner also supports posture assessment, spinal analysis, and fracture reconstruction. In addition, it is an excellent tool for the digital archiving of historical monuments, museum collections, and cultural artifacts. It can also be used to create highly detailed visualizations of luxury garments, real estate, and other valuable objects.

Scantech iReal 2E Color 3D Scanner – Overview

The iReal 2E 3D Scanner is an outstanding solution for capturing textures, fine details, and true-to-life colors. It has been specifically designed for scanning medium and large-sized objects as well as the human body.

Using VCSEL infrared structured light technology, the iReal 2E delivers one of the safest and most comfortable 3D scanning experiences available. Marker-free operation allows for fast and efficient acquisition of both geometry and texture data.

Combined with advanced algorithms, powerful software, and an ergonomic, portable, and durable design, the iReal 2E provides an efficient, accurate, and comprehensive solution for full-color 3D measurement of sensitive and valuable objects.

Key Features

• Smooth 3D scanning of medium and large-sized objects with a scanning area of up to 850 mm × 800 mm and a depth of field of 750 mm.
• VCSEL structured light technology ensures safe and comfortable scanning while eliminating issues related to dazzling light and improving hair scanning performance.
• New 3D sensor capable of capturing up to 1,500,000 points per second.
• Ultra-fast texture and geometry acquisition enabled by advanced data-capture algorithms.
• Supports scanning of reflective surfaces.
• Multiple scanning modes for enhanced flexibility.
• Marker-free alignment based on texture, geometry, or mixed tracking methods.
• Optimized for human body scanning, including hair and operation in dark environments.

Technical SpecificationsSpecificationiReal 2ELight SourceInfrared VCSEL Structured LightVisibilityInvisibleSafety ClassClass I (Eye-Safe)TechnologyInfrared Linear-Array Structured LightColor Reproduction24-bitAlignment ModesTexture / Feature / Mixed AlignmentHuman Body ScanningInvisible light, hair scanning, dark-environment scanning, automatic body-motion compensationOptimal Scanning Distance350 mm – 650 mmEffective Working Range250 mm – 1000 mmMaximum Scanning Area850 mm × 800 mmMeasurement RateUp to 1,500,000 points/sPoint Distance0.200 mm – 3 mmSingle-Frame AccuracyUp to 0.100 mmAlignment AccuracyUp to 0.300 mm/mOutput FormatsOBJ, STL, PLY, ASC, SK3D Printing SupportYesOperating Temperature5°C – 40°CInterfaceUSB 3.0Weight850 gDimensions140 mm × 94 mm × 258 mmConfiguration3 sets of invisible light sources, 3 camera groups, 3 sets of auxiliary lights
