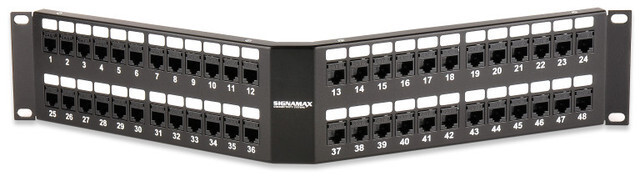

Signamax 48 Port Category 6A MT-Series Unscreened Angled PatchPanel

Includes the 48 port panel, and 48 Category 6A MT-Series, black snap-in keystone jacks. This space saving angled designallows easy termination and flexibility for future adds, moves orchanges, giving installers the perfect cost effective solution forCategory 6A applications.

The angled patch panels rolled-edge steel construction eliminatespanel flex, and in lieu of fixed termination, a standard single position110 termination tool or a specialized Signamax multi-pairtool can be used. For easy circuit identification, each portdesignation features a labeling area with a reference number.The keystone jacks are rated for a minimum of 750 plug insertionsproviding for the highest level of system reliability.

• Exceeds ANSI/TIA-568-C.2 transmission performancespecifications
• Meets IEEE 802.3an 10-Gigabit Ethernet transmission requirements
• Eliminates alien crosstalk with solid-metal cable-retention capon connector modules
• Improved wire retention and ease of termination with rear 110type contacts
• Slim profile for the highest density applications
• Angled design eliminates the need for cable managementpanels saving space
• Cold-rolled steel construction for maximum strength anddurability
• Easy-to-read T568A/B wiring scheme color-coded label
