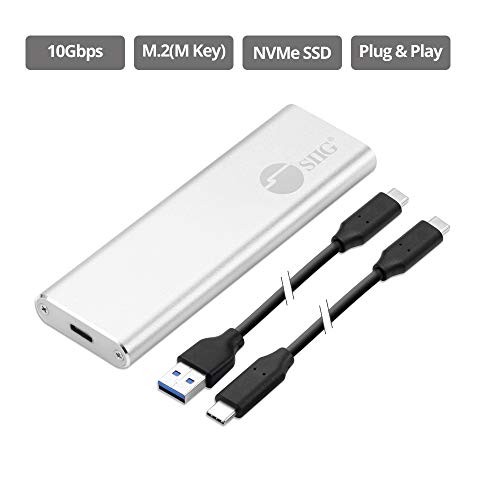

SIIG Drive Enclosure - USB 3.1 Type C Host Interface - UASP Support External - Silver (230086) SIIG Drive Enclosure - USB 3.1 Type C Host Interface - UASP Support External - Silver (230086)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure USB 3.1 Type-A (M) to Type-C (M) Cable USB 3.1 Type-C (M) to Type-C (M) Cable Thermal Silicon Pad Screw Driver Screw Kit (screw & nut) Quick Start Guide
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
This ultra small enclosure easily adds fast PCIe NVMe SSD storage to Windows or Mac computers through USB 3.1 Gen 2 Type-A or Type-C ports
Accommodates 2230, 2242, 2260 and 2280 form factor M.2 M Key PCIe NVMe SSDs
USB 3.1 Gen 2 provides ultra-fast data transfer rates up to 10Gbps with UASP support. Requires UASP compatible USB 3.1 host controller hardware along with Windows 10 and Windows 8 native USB 3.1 host controller drivers
USB Type-C interface features reversible connection design supports non-directional plug-in
Built-in LED for power and data transfer status
Bus powered for extra portability, no need to take along a separate power adapter when on the go
Ultra-slim, lightweight and compact design aluminum housing offers durability and excellent heat dissipation for long life and reliable performance
Plug-n-Play installation, no driver installation required
Chipset: JMicron JMS583
Compatible with PCIe 3.1a specification and backward compatible with PCIe 1.0 and PCIe 2.0
USB data transfer rate: Up to 10Gbps
Power source: USB bus power
Memory type
M.2 M key PCIe NVMe SSD
Form factor: 2230, 2242, 2260, 2280
Storage capacity: 2TB (max)
Product
Color: Silver
Housing material: Aluminum
Connectors:
1x 24-pin USB 3.1 Type-C, Female
1x M key M.2 PCIe NVMe slot
USB cable
USB 3.1, Type-A (M) to Type-C (M), 9.5 inches
USB 3.1, Type-C (M) to Type-C (M), 10 inches
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop PC or laptop with one available USB 3.1 Type-A or Type-C port
M.2 M key PCIe NVMe SSD up to 2TB
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Mac OS X 10.6 or later
Package Contents
USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
USB 3.1 Type-A (M) to Type-C (M) cable
USB 3.1 Type-C (M) to Type-C (M) cable
Thermal silicon pad
Screw driver
Screw kit (screw nut)
Quick start guide
Item Dimension ( L inchxW inchxH inch)
5 x 1 x 2Weight
1.0 lbWarranty Information
2 yearsPackage Contents:
- USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
- USB 3.1 Type-A (M) to Type-C (M) Cable
- USB 3.1 Type-C (M) to Type-C (M) Cable
- Thermal Silicon Pad
- Screw Driver
- Screw Kit (screw & nut)
- Quick Start Guide
SpecificationPhysical CharacteristicsProduct MaterialAluminumForm FactorExternalWeight (Approximate)1.44 ozProduct Warranty2 YearInterfaces/PortsHost InterfaceUSB 3.1 Type CGeneral InformationBrand NameSIIGMarketing Information Adds extra storage space to USB 3.1 enabled computers This ultra small enclosure easily adds fast PCIe NVMe SSD storage to Windows or Mac computers through USB 3.1 Gen 2 Type-A or Type-C ports Accommodates 2230, 2242, 2260 and 2280 form factor M.2 M Key PCIe NVMe SSDs USB 3.1 Gen 2 provides ultra-fast data transfer rates up to 10Gbps with UASP support. Requires UASP compatible USB 3.1 host controller hardware along with Windows 10 and Windows 8 native USB 3.1 host controller drivers USB Type-C interface features reversible connection design supports non-directional plug-in Built-in LED for power and data transfer status Bus powered for extra portability, no need to take along a separate power adapter when on the go Ultra-slim, lightweight and compact design aluminum housing offers durability and excellent heat dissipation for long life and reliable performance Plug-n-Play installation, no driver installation required More from the Manufacturer Product TypeDrive EnclosureProduct NameUSB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD EnclosureManufacturerSIIG, IncManufacturer Part NumberJU-SA0W11-S1TitleProduct TitleSIIG Drive Enclosure - USB 3.1 Type C Host Interface - UASP Support External - Silver (JUSA0W11S1)Network & CommunicationUASP SupportYes Shipping
