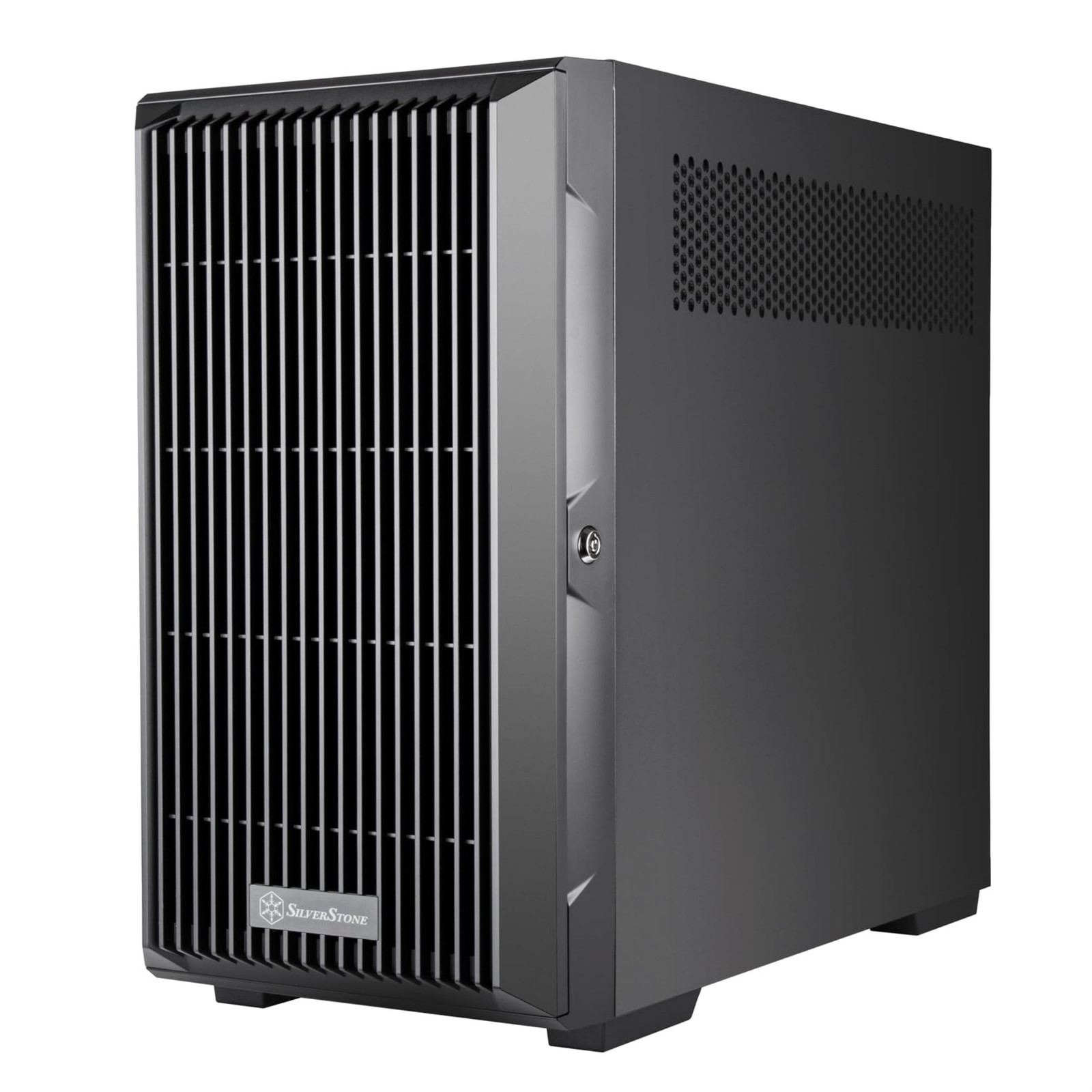

SilverStone SSTCS382 CS382 8-Bay SAS/SATA Hot-Swappable NAS Chassis SilverStone SSTCS382 CS382 8-Bay SAS/SATA Hot-Swappable NAS Chassis

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

8-bay SAS-12G / SATA-6G hot-swappable high performance Micro-ATX NAS chassis


8 hot-swappable drive trays to accommodate up to 2.5" or 3.5" SAS-12G / SATA-6G drives with two LED indicators for displaying drive operation status

Supports Micro-ATX motherboard and ATX (PS2) power supply

Compatible with 240 or 280mm liquid cooling radiators

Supports 1 x 9.5mm slim ODD

Support for a total of 11 drives

Dust filters included in key areas

Front I/O includes: 1 x USB Type-C, 2 x USB 3.0 & 1 x combo audio


Hot-swappable drive trays

Support up to eight 2.5 or 3.5 SAS-12G / SATA-6G drives with two LED indicators for displaying drive status


Liquid cooling compatible

The top of the case can accommodate either a 240mm or 280mm liquid cooling radiator, achieving excellent CPU thermal performance in a NAS/storage environment


Confidential information security

In an era where data is considered gold, CS382 has an individual lock included on the front panel door to deter theft or unauthorized removal of drives effectively. This feature gives users an additional sense of security and peace of mind.


Prodigious accommodation

CS382 offers users a wide array of hardware options that includes support for 3.5 or 2.5 drives in SATA or SAS format, high-end graphics cards, and RAID cards. Model No.
SST-CS382 Material
Plastic front door, galvanized steel body Motherboard
Micro-ATX, Mini-DTX, Mini-ITX HDD backplane
Backplane:
8 port x SAS 12Gbit/sNote1 / SATA 6Gbit/s
power connector:
4 pin peripheral x 2, 15 pin SATA x 2
interface:
SATA drive up to 6 Gbit/s (depends on drive speed)
SAS drive up to 12 Gbit/s (depends on drive speed) Drive bay
External:
2.5" / 3.5" SAS / SATA external hot-swapping x 8
5.25" x 1
9.5mm slim optical drive x 1
Internal:
3.5" x 1
2.5" x 2 Cooling system
Rear:
120mm x 1
Top:
120mm / 140mm x 2 (optional)
Internal:
92mm x 2 Radiator support
Rear:
120mm x 1
Top:
120mm / 140mm / 240mm / 280mm x 1 Note2 Limitation of CPU cooler
168mm Expansion slot
5 Limitation of expansion card
369mm, width restriction - 6.85" (174mm) Note2 Power supply
Standard ATX (PS2) (optional) Limitation of PSU
180mm Front I/O port
USB Type-C x 1
USB 3.0 x 2
Combo audio x 1 LED Indicators
Chassis:
Power ON: White
Accessing: White blinking
HDD Tray:
HDD Power LED: Green
HDD Access : Blue blinking Note
1. Mini-SAS HD (SFF8643) to SATA 7 pin cable and 12 Gbit/s SAS HD card required for 12 Gbit/s performance (i.e. SilverStone CPS05 and ECS05)
1. For 280mm radiators, we recommend total thickness of 30mm or less
2. Expansion slots 3, 4, and 5 may have different length restrictions depending on optical drive installed, please refer to manual for more information.Item Dimension (L inchxW inchxH inch)
21 x 12 x 23

Weight
42.00 lb Shipping
