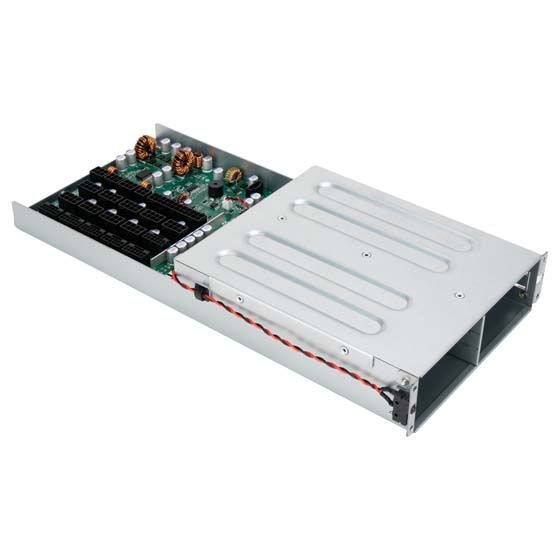

Support up to 2400W PDB Design to fit for 2 vertical CRPS power supply to install on the chassis.
Mylar insulation included that to prevent the PDB board shortcut
Using an Amphenol-manufactured card edge connector with 3-beam contact design to ensure stable power output.
Perfectly fit for GM2000C-TFU and GM2400C-TFU CRPS PSU
Full modular design with all black flat cable included.
Support up to 6 pcs of 12V-2x6 connector to allow user could connect with latest Nvidia/AMD graphic cards.
PDB followed Fire Resistant (UL 94V-0) standard
The PDB is designed with a PMBus connector to enable administrators to conveniently monitor and read power status signals.
Multiple protection circuitry
Product No.
SST-CPB01
Color
Silver
Combined +3.3V & +5V
150W
Support total output power
<=2400W
Input Voltage
Min:11.71V
Nom:12.2V
Max:12.69V
Input Connector
50Pin(25Pair) 90 degree connector
Output Current
Voltage +3.3V +5V +12V -12V +5Vsb
Max Current 25A 22A 200A 0.3A 3A
Operating temperature
0℃ to 50℃
Shipping and Storage
-40℃ to 70℃
Protection
Over Current Protection
Over Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
3 x 8-Pin EPS / ATX 12V connectors
10 x 8 / 6-Pin PCIe connectors
6 x 12V-2x6 Connector
8 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 5-Pin PMBus connector
Dimension
PDB Dimension:151mm(W) X 160mm(D)
PDB with Cage Dimension:169.8mm(W) x 45.2mm(H) X 353mm(D)(Included bracket)
PDB with Cage Dimension:153.8mm(W) x 45.2mm(H) X 353mm(D)(Not included bracket)
Other
• The CPB01 does not include PSU; it only comes with the cage, power distribution board, and cables.
• Please ensure that the CPB01’s mounting holes are compatible with your chassis mounting positions.
• CPB01 is designed with a PDB and cage structure. During installation please avoid contact with electronic components on the PDB to prevent damage or malfunction.
• On the CPB01 PDB board when powered on a solid red LED indicates normal operation of the power supply and PDB. If the red LED blinks it indicates a PDB abnormal condition (the red LED will also blink when only one power supply is installed). Please refer to the LED indication definitions in the specification and the specification of your CRPS power supply for details.
