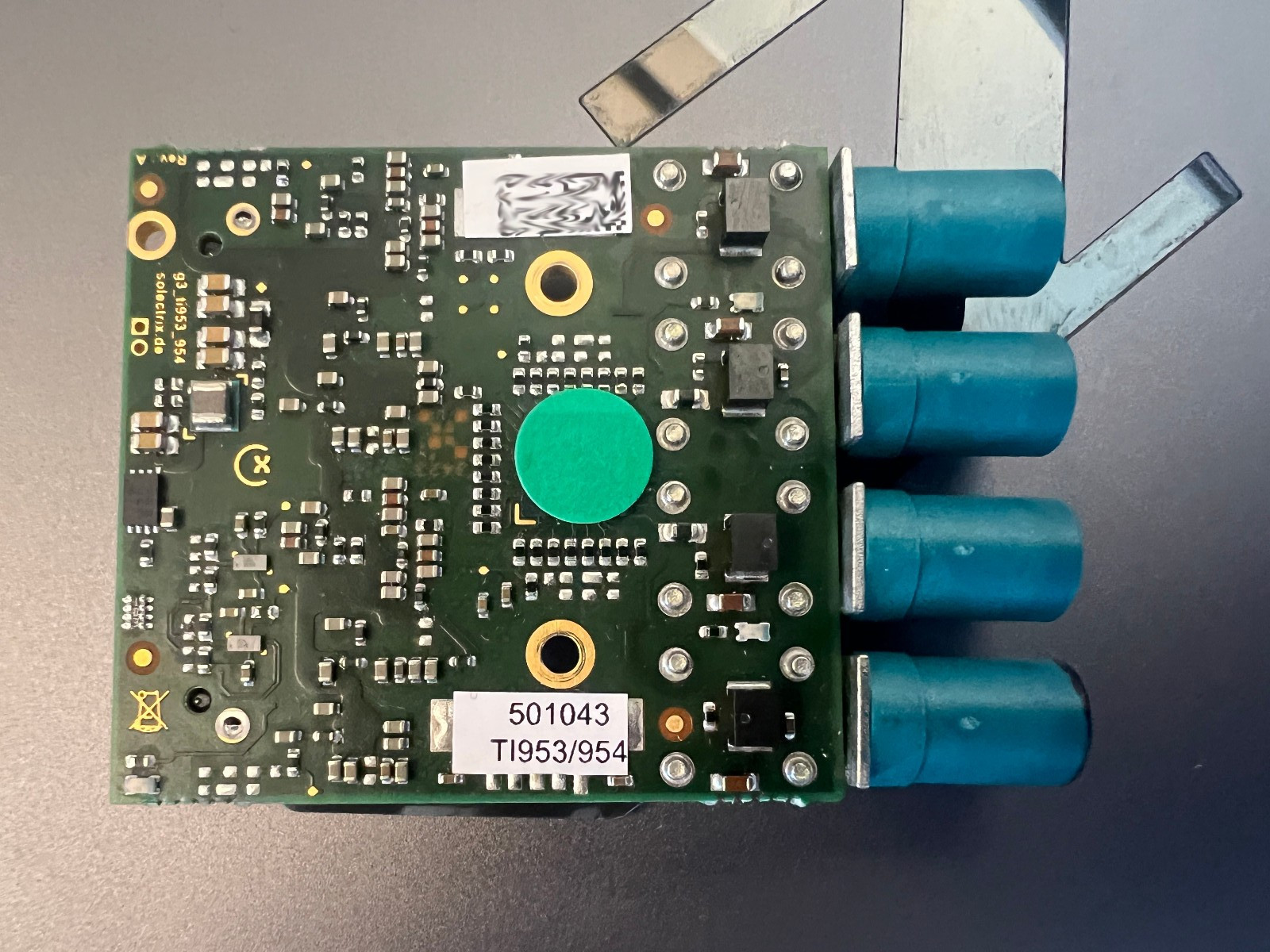

Solectrix proFRAME camAD3 DUAL TI953/954 expansion card FPD-Link III.This is a modularexpansion card for use in a Solectrix proFRAME Base Board Card 3.0 PCIe Modular Frame Grabber. Working, tested, AS-IS with no returns, rare/limited sales, see pictures. comes with 2x screws for mounting.
tested working, but AS-IS with no returns.
This is a high-end automotive camera interface module used with the proFRAME system.Supports:
FPD-Link III automotive camera interfaces (TI DS90UB953 / DS90UB954 chipset)
Dual camera input (2 channels) via FAKRA coax
CSI-2 video output to proFRAME base board
Power-over-Coax (PoC) for powering connected cameras
Synchronization & trigger support for multi-camera setups
Compatible with:
Solectrix proFRAME Base Board 3.0 PCIe Modular Frame GrabberUses:
2× TI DS90UB953-Q1 serializers
2× TI DS90UB954-Q1 deserializers
Supports FPD-Link III → CSI-2 video conversion
Dual-channel (2 cameras) via FAKRA coax connectors
Power-over-Coax (PoC) for camera power (5–24V)
Outputs via 4× CSI-2 lanes to base board
Built-in FPGA (Lattice MachXO3) for control
Designed for:
Solectrix proFRAME Base Board 3.0 (PCIe / CPCI)
