Sophos XG 230 Firewall Security Appliance with 2-Port SFP FlexiPort Module (No SSD) Sophos Sophos XG 230 Firewall Security Appliance with 2-Port SFP FlexiPort Module — No SSD Installed (Bare Appliance) 6x GbE Copper Ports 2x SFP FlexiPort Module Installed 8GB DDR4 RAM LCD Status Display No SSD — Open Firewall OS Ready Overview

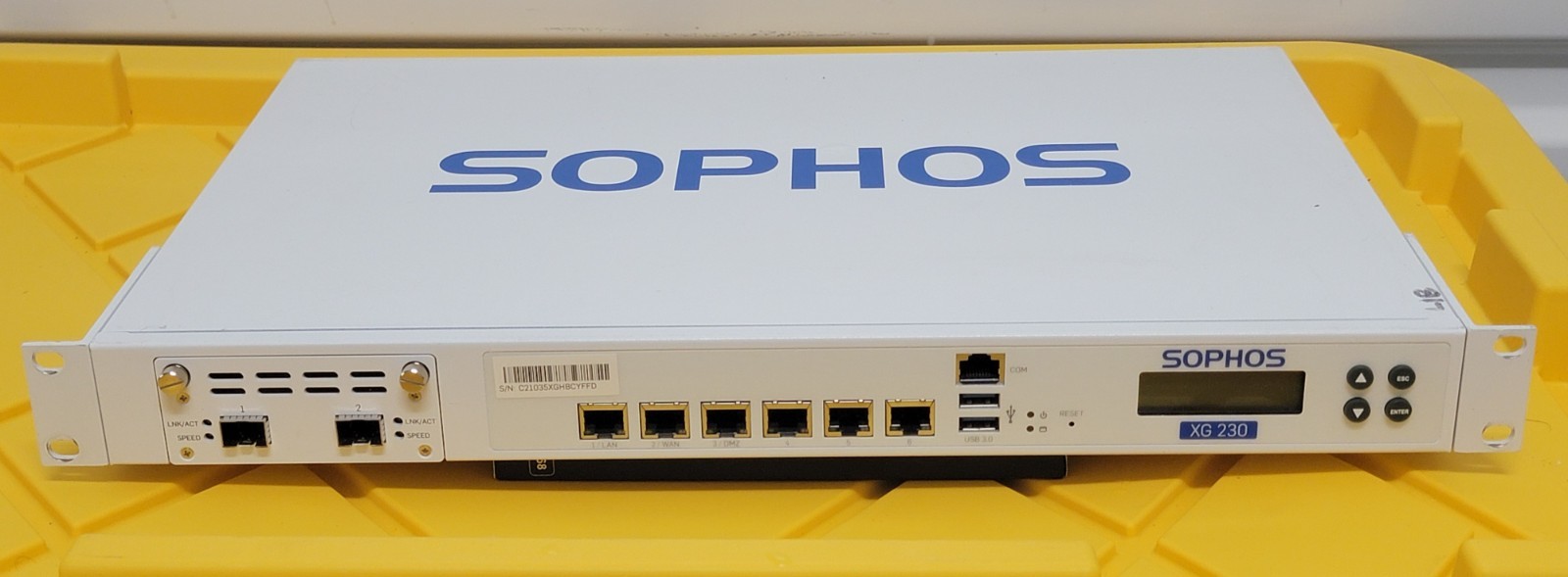

This listing is for a Sophos XG 230 1U rackmount firewall appliance, removed from a working environment. This unit comes equipped with a 2-port SFP FlexiPort expansion module installed in the expansion bay (visible on the left front panel, ports 1 and 2 with LNK/ACT and Speed indicators) — a value-add over the base configuration, providing additional fiber/SFP connectivity beyond the standard onboard ports. The appliance features 8GB DDR4 RAM, 6 onboard Gigabit copper ports, and the integrated LCD status display with navigation buttons.
This unit does not include an SSD/storage drive. Because Sophos's XG/XGS firmware and licensing are tied to the original storage media, this appliance will not boot into Sophos's proprietary OS out of the box. However, since the hardware underneath is a standard x86 platform, this makes it an excellent low-cost base for installing a free, open-source firewall/router operating system of your choice (e.g., pfSense, OPNsense, or a general-purpose Linux distribution) on a drive you supply. This is a popular and well-documented repurposing path for decommissioned Sophos-style appliances in the homelab and small business community.
Specifications ModelSophos XG 230 Memory8 GB DDR4 RAM StorageNot included — no SSD installed Onboard Network Ports6x Gigabit copper RJ45 (1/LAN, 2/WAN, 3/DMZ, 4, 5, 6) Expansion Module2-port SFP FlexiPort module installed (ports 1 & 2, LNK/ACT + Speed indicators) Management/Console1x RJ45 COM/console port USB2x USB 3.0 Front PanelLCD status display with navigation buttons (Up/Down/Esc/Enter) Form Factor1U rackmount What's Included
- Sophos XG 230 appliance (bare unit, no storage)
- 2-port SFP FlexiPort expansion module (installed)
Not Included
- SSD/storage drive
- SFP transceivers/modules
- Power cord
- Sophos software license or subscription
- Rack mounting kit/brackets
- Original retail box
Condition Removed from a working environment. This item has not been tested for full functionality — only a power-up test was performed. Sold as a bare appliance with no SSD installed; a compatible drive is required to install an OS before use. Light cosmetic wear may be present as shown in photos; no cracks or damage affecting function. No calibration certificate applicable (networking hardware). Ideal For Hobbyists, homelabbers, and small businesses looking for a capable x86 firewall/router platform to run a free open-source firewall OS (pfSense, OPNsense, etc.) at a fraction of the cost of new hardware. The installed SFP FlexiPort module adds extra fiber connectivity options over the base configuration. Buyer will need to supply their own SSD/storage drive and install their OS of choice. Shipping Ships from Vancouver, WA. Carefully packaged to prevent damage in transit. Combined shipping available on multiple items — message before purchase to arrange. Item pictured is the actual item you will receive. Please review all photos and specifications carefully before purchasing. Feel free to message with any questions prior to offerding/buying.
