StarTech 2-port 10Gbps USB C PCIe Card Adapter - USB 3.1 Gen 2 Type-C PCI Express Expansion Add-On Card - Windows StarTech 2-port 10Gbps USB C PCIe Card Adapter - USB 3.1 Gen 2 Type-C PCI Express Expansion Add-On Card - Windows
International Customers: All electronic products are packaged for sale in the US with US voltage.
WEEE Statement: of Life Manual Availability: Yes
EU RoHS Declaration URL: Contents: 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps 1 x Low Profile Bracket 1 x Quick Start Guide
Environmental Certification: EU RoHS
Additional Information: OS Compatibility: Windows® 7, 8, 8.1, 10, 11 Windows Server® 2008 R2, 2012 R2, 2016, 2019 Linux® 3.5 and up - LTS Versions only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0) macOS Monterey (12.0) macOS Ventura (13.0)
Environmentally Friendly: Yes
REACH Declaration URL: free of SVHC: Yes
Platform Supported:
Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Host Controller card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected; 2x USB-C 10Gbps per port
POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports
MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives

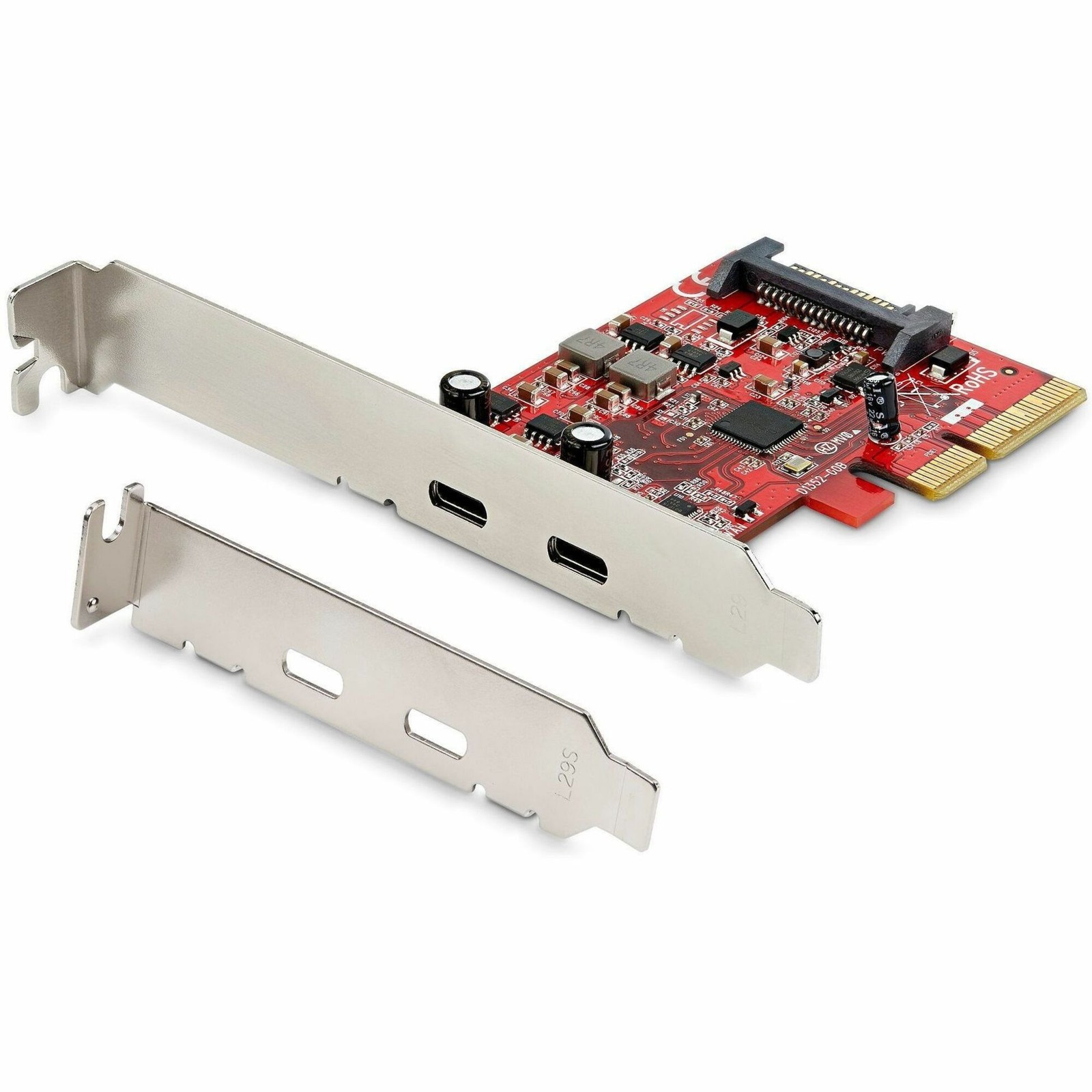

This PCIe USB 3.1 Gen 2 card installs into an available PCI-Express slot in your computer and enables you to upgrade your current system by adding two USB-C (10Gbps) ports.
Faster USB Performance
Also known as USB 3.2 Gen 2x1, this USB 3.1 Gen 2 card adds two 10Gbps USB Type-C ports to your computer.
Utilizing an ASMedia ASM3142 chipset, this card harnesses the speed of USB 3.1 Gen 2. With higher data throughput support, this USB 3.1 Gen 2 PCIe expansion card is a necessity for external drives and many other USB 3.1 Gen 2 peripherals and includes an optional SATA power connector for high power devices.
The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. The card works with newer USB-C devices, but can easily support your existing USB-A peripherals using inexpensive USB Type C cables and adapters. See our Accessories Tab for supported options. HARDWARE
Bus Type
PCI Express Card Type
Standard Profile (LP bracket incl.) Chipset ID
ASMedia - ASM3142 Industry Standards
USB 3.2 Specification Rev. 2.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface
USB 3.1 Gen 2 Port Style
Integrated on Card Ports
2 PERFORMANCE
Maximum Data Transfer Rate
10Gbps Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s UASP Support
Yes CONNECTOR(S)
Connector Type(s)
1 - PCI Express x4 Male External Ports
2 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female Internal Ports
1 - SATA Power (15 pin) Plug SOFTWARE
OS Compatibility
Windows 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2016, 2019
Linux 3.5 to 4.11.x LTS version only
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13) SPECIAL NOTES / REQUIREMENTS
Note
The cards USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.Package Contents:
- 2-Port PCIe USB 3.1 Card - 2x USB-C - USB 3.1 Gen 2 Up to 10Gbps
- 1 x Low Profile Bracket
- 1 x Quick Start Guide
SpecificationPhysical CharacteristicsForm FactorPlug-in CardWeight (Approximate)1.60 ozLength4.8"Product ColorBlackHeight0.7"Color Warranty2 YearInterfaces/PortsNumber of SATA Ports1Number of USB 3.2 Ports2Total Number of USB Ports2General InformationBrand Name
