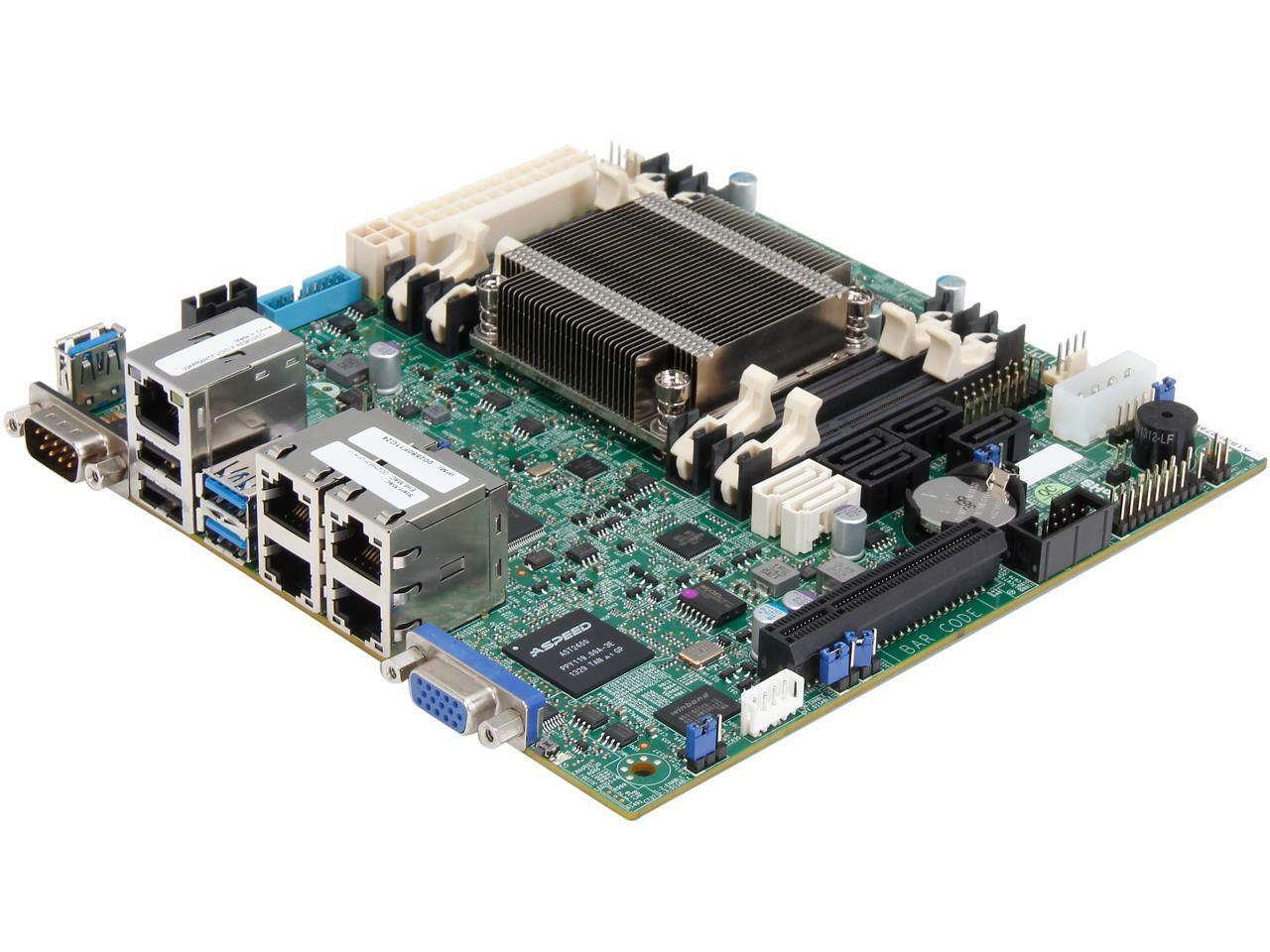

Chassis (Optimized for A1SRi-2758F )1U Chassis:

• SC504-203B
• SC505-203B

Mid/Mini Tower Chassis:

• SC101i
• SC101S

SuperServer(s) with A1SRi-2758F Model(s)

• SYS-5018A-FTN4
• 1x PCI-E 2.0 x8 slot

System BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• SuperDoctor® 5
• Watch Dog
• NMI

Power Configurations

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages.

FAN

• Total of 3x 4-pin fan headers
• 3x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support

LED

• System Overheat LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header
• 4-pin 12V DC power input or 24-pin ATX Power input

Operating Temperature
• 0°C to 60°CProduct SKUsMBD-A1SRi-2758F -O

• A1SRi-2758F (Retail Pack)

MBD-A1SRi-2758F -B

• A1SRi-2758F (Bulk Pack)

Physical StatsForm Factor

• 6.75" x 6.75" (17.145cm x class="desc">
• Intel® Atom™ Processor C2758
• CPU TDP 20W (8-Core)
• FCBGA 1283
• 4x 204-pin DDR3 SO-DIMM socket
• Supports up to 64GB DDR3 ECC Un-Buffered memory

Memory Type

• 1600/1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs

DIMM Sizes

• 16GB, 8GB, 4GB, 2GB

Memory Voltage

• 1.5 V, 1.35 V

On-Board DevicesSATA

• SoC SATA3 (6Gbps), SATA2 (3Gbps)

Network Controllers

• C2000 SoC I354 Quad GbE Controller (MACs)
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Aspeed AST 2400 BMC

USB 3.0

• Renesas uPD720201

Video

• BMC integrated Aspeed AST2400

Input / OutputSerial ATA

• 2x SATA3 (6Gbps) ports
• 4x SATA2 (3Gbps) ports

LAN

• 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header)
• 2x USB 2.0 ports (2 rear)

Serial Port

• 2x Fast UART 16550 Serial Port (1 rear, 1 via header)

DOM

• 1x SATA DOM (Disk on Module) power connector

VGA

• 1x VGA Port

Others

• TPM header
