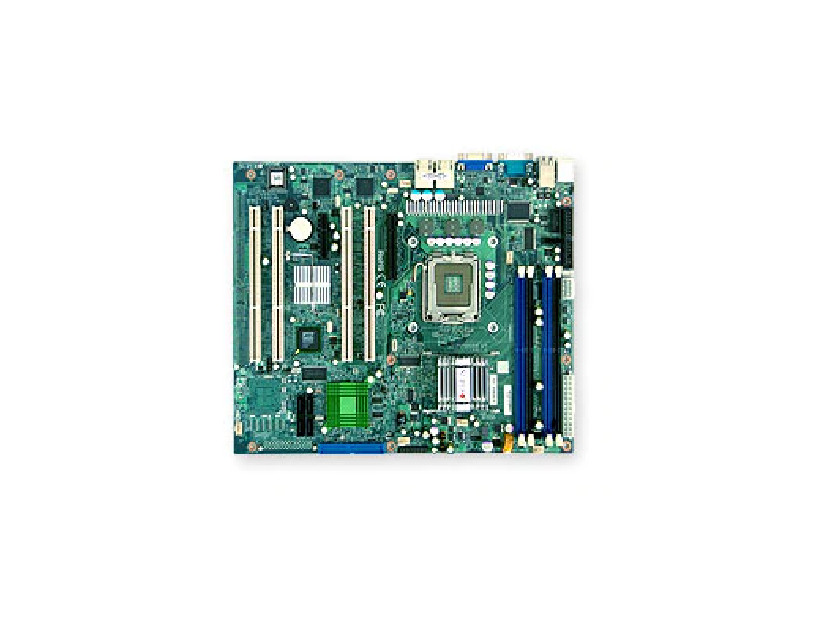

Chassis ( Optimized for PDSME+ )2U

• CSE-823T-R500LP
• CSE-823T-550LP
• For a general system, a 400W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended to assure system stability].

Expansion SlotsPCI-Express

• 1 (x4) PCI-e slot
• 1 (x8) PCI-e slot

PCI - X

• 2x 64-bit 133MHz PCI-X (3.3V) slots
• 2x 64-bit 100MHz PCI-X (3.3V) slots

System BIOSBIOS Type

• 8Mb Flash EEPROM with Phoenix BIOS®

BIOS Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• SMBIOS 2.3
• USB Keyboard support

ManagementSoftware

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode control for AC power loss recovery
• Internal/External modem remote ring-on
• Suspend to RAM (STR)

PC Health MonitoringVoltage

• Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT)
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V

FAN

• Total of six 4-pin fan headers
• 6x fans with tachometer monitoring
• Status monitor with firmware / software speed control
• Status monitor for on/off control
• Support 3-pin fans (with speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connector

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip support
• Thermal Monitor (TM2) Support

LED

• CPU / System Overheat LED
• Standby alert LED
• Suspend-state indicator LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)

OS Compatibility
• Please see our OS Compatibility ChartRegulatoryFCC

• Passed to meet FCC standard requirement

Physical StatsForm Factor

• ATX

Dimensions

• 12" x 9.6", (30.5cm x 24.4 cm)

Processor/CacheCPU

• Single LGA775 ZIF Socket
• Supports a Quad-Core Intel® Xeon® 3200 series processor
• Supports a Dual-Core Intel® Xeon® 3000 series processor
• Supports a Quad-Core Intel® Core™2 Extreme series processor
• Supports an Intel® Core™2 Quad series processor
• Supports an Intel® Core™2 Duo series processor
• Supports an Intel® Pentium® processor E2000 series
• Supports a Dual-Core Intel® Pentium® D processor
• Supports an Intel® Pentium® Extreme Edition processor
• Supports an Intel® Pentium® 4 processor
• Supports an Intel® Celeron® processor E1000 series
• Supports an Intel® Celeron® processor 400 series
• NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

• 1066 / 800 / 533 MHz system bus

System MemoryMemory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of memory (Single / Dual Channel)

Memory Type

• DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

• 1.8V only

On-Board DevicesChipset

• Intel 3010 (Mukilteo-2P) chipset
• ICH7R + PXH + Intel® 82573V + Intel® 82573L

Serial ATA

• Intel® ICH7R SATA2 (3 Gbps) controller built-in
• Intel:
  RAID 0, 1, 5, 10 support (Windows Only)
• Adaptec:
  RAID 0 (Two, three, four drives only)
  RAID 1 (Two hard drives only)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
• Supermicro Intelligement Management
• (Optional: AOC-SIM1U+)
• NOTE: Must use dedicated LAN for IPMI function

Network Controllers

• 2x Single-port Gigabit PCI-Express Ethernet Controllers
• Intel® 82573V
• Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output

VGA

• On-board ATI ES1000 (16MB) graphics

Super I/O

• Winbond 83627HG chip

Clock Generator

• CK410

Input / OutputSerial ATA

• Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported

IDE

• One EIDE channel supports up to two UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2x RJ45 LAN ports

USB

• Up to 4x USB 2.0 / 1.1 compliant ports
• 2 rear ports
• 1 internal header for 2 ports

VGA

• 1x VGA port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 1x Fast UART 16550 serial port
• 1x internal header
