Key Applications • Multi-Access Edge Computing (MEC)
• Centralized/Cloud Radio Access
Network (C-RAN)
• Universal Customer Premise
Equipment (uCPE)
• Software Defined WAN (SD-WAN)
• Network Function Virtualization (NFV)
• Artificial Intelligence (AI) Key Features 1. Intel® Xeon® D-2146NT Processor,
8-Core, 16 Threads, 2.3 GHz, 80W 2. Up to 512GB ECC LRDIMM,
up to 256GB reg. ECC RDIMM

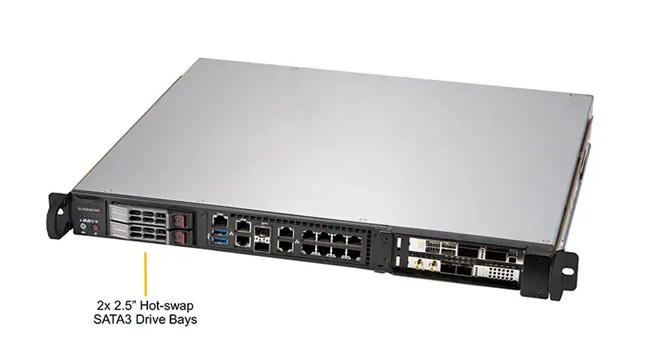

DDR4-2133Mz; in 4 DIMM slots 3. 2 PCI-E 3.0 x16 (FHFL) slots 4. 2 Hot-swap 2.5" drive bays,
2 Internal 2.5" SSD bays 5. 3 M.2:
M-Key SATA/PCI-E 3.0 x4, 22110
E-Key PCI-E 3.0 x1, 2230
B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242 6. 9 GbE (1 port is used for management),
2x 10GbE, 2x 10G SFP+, and
1 Dedicated IPMI LAN ports 7. 2 USB 3.0, 1 VGA,
1 COM via RJ45 8. 350W AC-DC Multi-output
Platinum Level Power SupplyDimensions and Weight
Height

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 15" (381mm)

Package

• 6.9" (H) x 19.5" (W) x 22.4" (D)

Weight

• Gross Weight: 25 lbs (11.34 kg)
• Net Weight: 14 lbs (6.35 kg)
