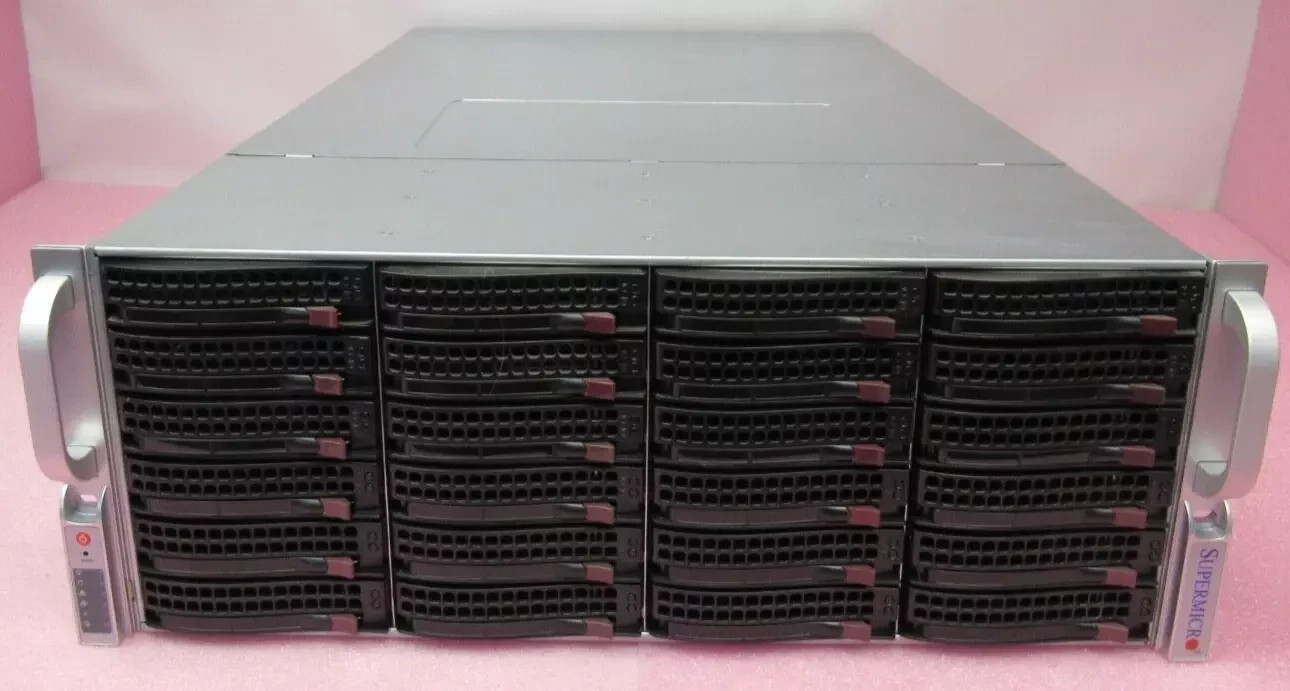

Supermicro CSE-847 X10DRi-T4+ Xeon E5-2600v3/v4 36 x 3.5" Bay 4U Storage ServerModel:CSE-847
In Good Condition, Full Working OrderTested2 Year WarrantyIncludes 36x Caddies With Screws

CTO (Configure To Order)

Please Note That This Server Is Shipped With No CPU, No Memory (Both Required In Order To Operate) And No Storage Drives Included. We Can Quote To Supply These Or You Can Install Your Own

Included

• 1 x Supermicro CSE-847 X10DRi-T4+ 4U Storage Serverwith:
• 24 x 3.5" Front Drive Bays With Caddies (Backplane BPN-SAS3-846EL1)
• 12 x 3.5" Rear Drive Bays With Caddies (Backplane BPN-SAS3-826EL1)
• Motherboard: X10DRi-T4+
• Processor: 2 xE5-2600 v3/v4 family + HeatsinksSNK-P0048P
• Memory: 24 x DDR4 MemoryDimm Slots
• Power Supply: 2 x1280W PSU - PWS-1K28P-SQ
• 7 x Nidec UltraFlo Fan - V80E12BHA5

Product SKUsMBD-X10DRi-T

• X10DRi-T

Physical StatsForm Factor

• 12" x 13" (30.5cm x 33.0cm)

Processor/CacheCPU

• Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
• Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s

Cores / Cache

• Up to 22 cores † / Up to 55MB† cache

Note

• † BIOS version 2.0 or above is required

Note

• ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System MemoryMemory Capacity

• ; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots16x 288-pin DDR4 DIMM slots

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
• LRDIMM: 32GB, 64GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612

SATA

• Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Dual LAN with Intel® X540 10GBase-T Ethernet Controller
  Single LAN with Virtual Machine Device Queues reduce I/O overhead
  Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• Aspeed AST2400 BMC

Input / OutputSATA

• 10 SATA3 (6Gbps) port

LAN

• 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 6 USB 2.0 ports (2 rear + 4 headers)
• 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

Video Output

• 1 VGA port

Serial Port / Header

• 2 COM Ports (1 rear, 1 header)
  2 fast UART 16550 serial

TPM

• 1 TPM Header

Expansion SlotsPCI-E

• 3 PCI-E 3.0 x16,
• 3 PCI-E 3.0 x8

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

ManagementSoftware

• Intel® Node Manager, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT

FAN

• 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support

LED

• CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features

• Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)
