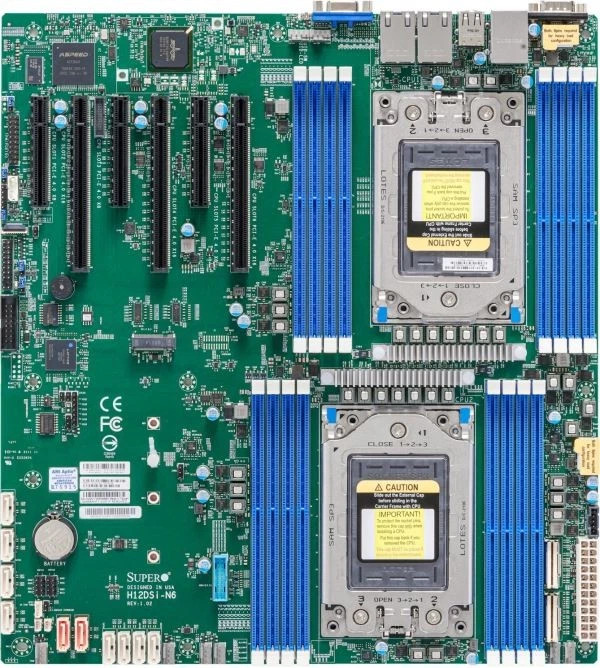

Supermicro H12DSI-N6 With 2x AMD EPYC 7V12 64 Cores Main board+CPU Combination
Package include: 1x SuperMicro H12DSi-N6 Motherboard 2x AMD EPYC 7V12 CPU
CPU AMD EPYC 7V12 64Cores 128Threads 2.45GHz SP3 240W Server CPU (compared to 7742 CPU)
Motherboard
Product SKUs MBD-H12DSi-N6 - 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) - Socket SP3
Cores Chipset System Memory Memory Capacity - 16 DIMM slots
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
- 8-channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type - DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v. 2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2600 BMC
Network Controllers - Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA Input / Output SATA LAN - 2x 1GbE LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 2 USB 2.0 ports (rear)
- 4 USB 3.0 ports (2 rear, 2 headers)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connectors
- 4 PCI-E 4.0 NVMe x4 internal ports
- TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 4.0 x16 slots
- 3 PCI-E 4.0 x8 slots
M.2 - Interface: 1 PCI-E 4.0 x4
- Form Factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H12DSi-N6) 2U - SCLA25TQC-R609LP
- AS -2024S-TR
System BIOS BIOS Type - AMI 256Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 6.2
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
- CPU switching voltage regulator
- VBAT
FAN - Up to 8 fan status tachometer monitoring
- Up to 8x 4-pin fan headers
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Environment / Compliance
Environmental Specifications- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
We have all models included, due to the price and stock varies a lot, if you need other models, you can contact us， we will give you a quote, our product price is very low and you can order in large quantities. We are looking forward to a perfect style="text-wrap: wrap; text-align: left;">We will ship 98% of items within 5 working day upon receipt of payment, our goal is: to ship them as fast as we can. 1. All orders are shipped from China 2. Make sure your address is correct, we ship to 's address only. 4. Item will be shipped within 5 day after full payment is received(NOT counting holidays or weekends) 5. Orders are shipped Monday through Friday, excluding US federal holidays. No orders are shipped on weekends 6. All parcels will provide a tracking number for your tracking. 9.Import duties and taxes are not included in the item price or shipping charges. These charges are the buyer's responsibility.
If the product is faulty, please contact us via mail and we will provide a good solution for you.
