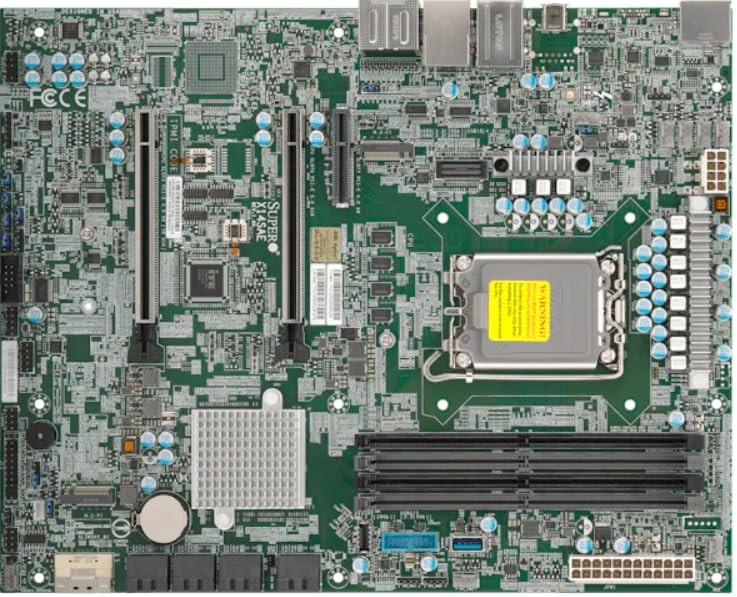

Supermicro MBDX14SAEFO X14SAE-F ATX Workstation Motherboard - LGA1851 DDR5 Thunderbolt 4 Supermicro MBDX14SAEFO X14SAE-F ATX Workstation Motherboard - LGA1851 DDR5 Thunderbolt 4
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
Key Features
Intel Core Ultra 9/7/5 Series Processor, Single Socket LGA-1851(Intel V1 Socket) supported, CPU TDP supports Up to 125W TDP
Up to 256GB Unbuffered ECC/non-ECC UDIMM, DDR5-5600MHz, in 4 DIMM slots
2 M.2 slots (1 PCIe 4.0 x4 from PCH support 2280/22110, and 1 PCIe5.0 x4 from CPU, support 2280) M.2 Key: M-Key
2 PCIe 5.0 x16 slots (16/NA or 8/8), 1 PCIe 4.0 x4 slot
Single 2.5 Gigabit LAN with Intel Ethernet i226LM LAN controller
Single 1 Gigabit LAN with Intel Ethernet i219LM LAN controller AMT/vPro
Single 1 Gigabit dedicated LAN with Realtek RTL8211F controller
...Product SKUs
MBD-X14SAE-FPhysical Stats
Form Factor
ATX
Dimension
12" x 9.3" (30.5cm x 24.4cm)Processor
CPU
Single Socket V1 (LGA-1851)
Intel Core Ultra 9/7/5 Processors
Core Count
Up to 24C
Note
Supports up to 125W TDP CPUsSystem Memory
Memory
Slot Count: 4 DIMM Slots
DIMM Sizes
UDIMM:8GB, 16GB, 24GB, 32GB, 48GB, 64GB
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)On-Board Devices
Chipset
Intel W880
SATA
1 SATA (6Gbps) via SlimSAS
8 SATA (6Gbps) RAID 0/1/5/10 support
Network Controller
Single LAN with Intel I226LM Ethernet Controller
Single LAN with Intel PHY I219LM LAN controller, for AMT/vPro
Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMIInput / Output
USB
2 USB 3.2 Gen1 port(s) (Header)
3 USB 3.2 Gen2 Type-A port(s) (Rear)
1 USB 3.2 Gen2x2 Type-C port(s) (Rear)
1 USB 3.2 Gen2x2 port(s) (Header)
1 USB 4 Type-C port(s) (Rear)
Video
1 VGA port(s)
1 Intel Thunderbolt 4 Type C (Shared w/ USB4/ DP2.1) 2.1 port(s)
1 Display Port port(s)
1 HDMI 2.1 (8K at 60Hz ) port(s)
Serial
1 COM port(s) (header)
Audio
ALC 888S HD Audio
TPM
1 TPM 2.0 onboardExpansion Slots
PCI-Express (PCIe) Configuration
1 PCIe 4.0 x4 slot
2 PCIe 5.0 x16 slots
1 PCIe 4.0 x8 SlimSAS slot
M2
1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
1 M.2 PCIe 5.0 x4 slot (M-key 2280)System BIOS
BIOS Type
AMI 32MB UEFI
BIOS Features
ACPI 6.5
UEFI 2.9
SMBIOS 3.8 or laterManagement
Software
SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
Plug-ins for 3rd Party Software
SAA (limited support)Security
Hardware
Trusted Platform Module (TPM) 2.0PC Health Monitoring
Voltage
+1.8V CPU,+12V,+3.3V,+5V,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature,Triple Cooling Zones,UID,VBAT
FAN
7x 4-pin fan headers (up to 7 fans)
5 fans with tachometer status monitoring
Fan speed control
Overheat LED indication
Other Features
8-pin 12v DC power connector
ACPI power management
ATX power connector
Chassis intrusion header
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
RoHS
Voltage and frequency overclocking
WOLItem Dimension (L"xW"xH")
NA
Weight
4 lbs
