Zombie Components LLC Sylmar, California Supermicro SBI-7127R-S6 Processor Blade SBI-7127R-S6 · Super B9DR7 Dual Xeon E5-2680 2.7 GHz · 64 GB RAM · QDR InfiniBand mezzanine · 6 x 2.5 in bays

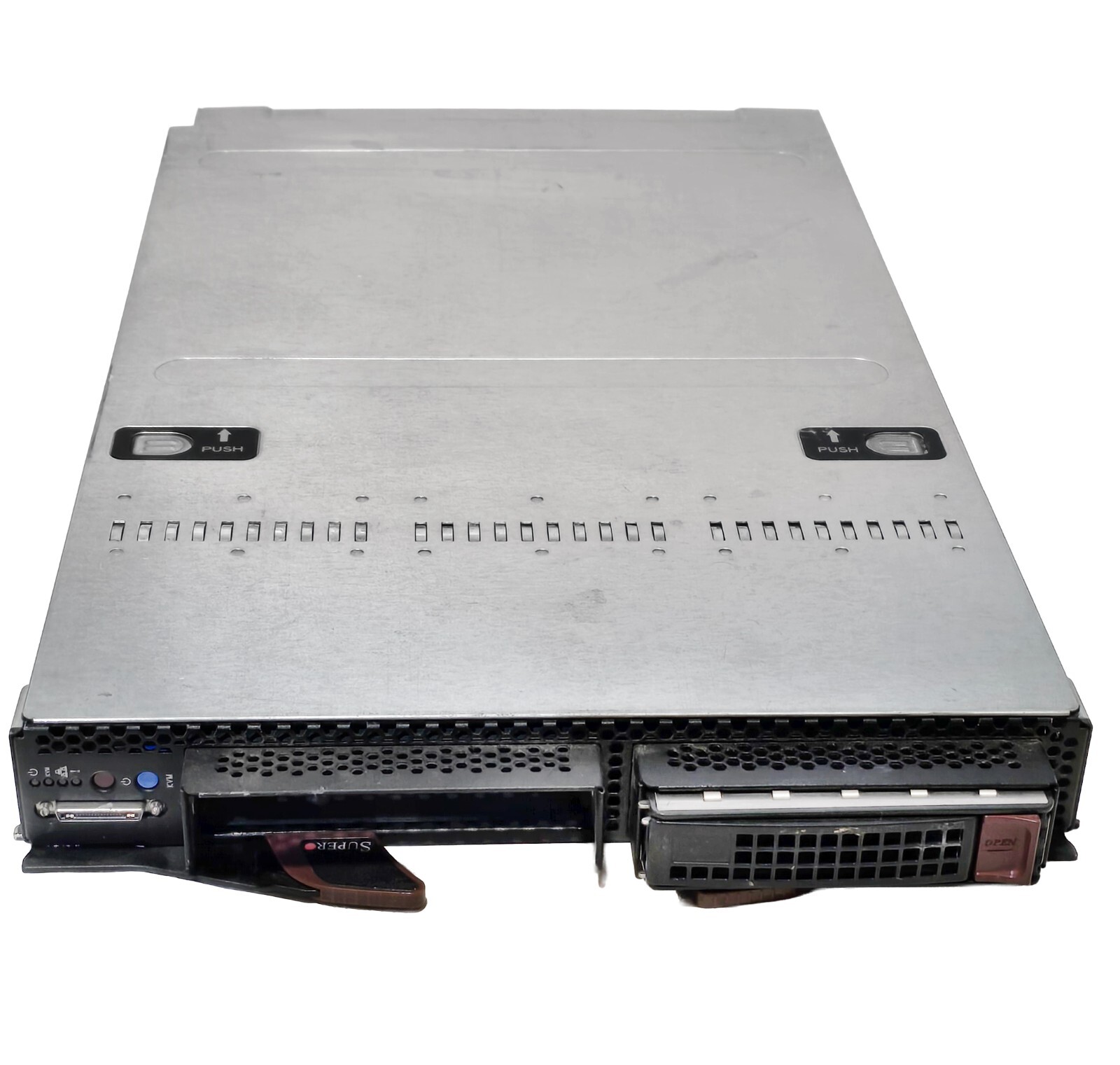

Supermicro SBI-7127R-S6 processor blade (black), Super B9DR7 motherboard, configured with dual Intel Xeon E5-2680 2.7 GHz processors and 64 GB RAM per the listing title.
It includes an AOC-IBH-XQD dual-port 4x QDR 40 Gbps InfiniBand mezzanine HCA (Mellanox ConnectX-2 chip). The blade chassis is the CSE-710M-260B with six 2.5 in hot-swap drive bays.
Condition
Used: 60 day money back guarantee.
Specifications blade, blackMotherboardSuper B9DR7ChassisCSE-710M-260B bladeProcessors2 x Intel Xeon E5-2680, 2.7 GHzMemory installed64 GBInfiniBandAOC-IBH-XQD dual-port 4x QDR 40 Gbps mezzanine HCA, Mellanox ConnectX-2Drive bays6 x 2.5 in SAS/SATA hot-swap Parts Hard Drive TrayMCP-220-00047-0B5Black 2.5" Hard Drive TrayFront Panel ControlMCP-280-KVM11Power & KVM buttons, LED, KVM connector Supermicro specifications Product SKUsSBI-7127R-S6Processor Blade SBI-7127R-S6 (Black) Motherboard
Super B9DR7 Processor/CacheCPUDual Socket R (LGA 2011)Intel® Xeon® processor E5-2600
and E5-2600 v2 family†Note† BIOS version 3.0 or above is requiredCacheUp to 30MBSystem BusQPI up to 8 GT/s System MemoryMemory Capacity16x 240-pin DDR3 DIMM slotsSupports up to 512GB DDR3 ECC Registered memory (RDIMM)Supports up to 128GB DDR3 ECC Unbuffered memory (UDIMM)Memory Type1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMsDIMM Sizes32GB, 16GB, 8GB, 4GB, 2GB, 1GBMemory Voltage1.5 V and 1.35 VError DetectionCorrects single-bit errorsDetects double-bit errors (using ECC memory)Supports Intel® x4 and x8 Single Device Data Correction (SDDC) On-Board DevicesChipsetIntel® C602 chipsetInfiniBand Support4x QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA (Optional)SASSAS2 via Broadcom 2208HW RAID 0, 1, 5, 6, 10, 50 supportIPMISupport for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)Network ControllersIntel® I350 Dual port Gigabit EthernetIntel® I/OAT 3 support for fast, scaleable, and reliable networkingVMDq support for better performance of virtualizationSuper I/ONuvoton W83527 System BIOSBIOS Type64Mb SPI Flash EEPROM with AMI® BIOSBIOS FeaturesPlug and Play (PnP)PCI 2.2ACPI up to 3.0USB Keyboard support DimensionsHeight11.32" (288 mm)Width1.67" (42.4 mm)Depth18.9" (480mm)Weight8.6 lbs (3.9 kg)Available ColorsBlack Front PanelButtonsPower On/Off buttonKVM buttonLEDsPower LEDUID / KVM LEDNetwork Activity LEDFault LEDConnectorSUV (Serial/USB/Video) & KVM Connector Drive BaysHot-swap6x 2.5" SAS/SATA Hot-swap drive bays Input / OutputKVM1 Front Connector for Supermicro KVM Card Operating Environment / ComplianceEnvironmental Spec.Operating Temperature: 10°to 35°C (50°to 95°F)Non-operating Temperature: -40°to 70°C (-40°to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5 to 95% (non-condensing) Included
One Supermicro SBI-7127R-S6 blade with 2 x Xeon E5-2680 2.7 GHz, 64 GB RAM and the AOC-IBH-XQD InfiniBand mezzanine HCA, per the listing title and old description.
Quality control
Where possible, electronics are tested. The value of an item determines the effort put into testing; items not specifically tested in detail are visually inspected and reviewed for operational status. Any exceptional wear is noted in the description. Most items are covered by a money-back guarantee.
Shipping
Orders may take up to 3 business days to ship from payment; weekends are not counted. If you need faster service, contact us before ordering so we can adjust priorities. We reserve the right to change the selected shipping method to an equivalent or better service that fits the item.
We ship worldwide. USPS may not be an acceptable choice for international shipping due to size, weight, and export documentation restrictions; you may be asked to select FedEx, UPS, or DHL at a higher price. Confirm your shipping choice with us before ordering if in doubt.
Export compliance. Our products are subject to the U.S. Export Administration Regulations (EAR), overseen by the Bureau of Industry and Security (BIS) and the U.S. Census Bureau. We do not ship to Country Group E. Determining the Export Control Classification Number (ECCN) can take up to 30 days; where an export license is required, licensing can take a further 30-90 days. For international orders we require a written statement of the ultimate end user, the intended end use of each product, and the buyer's agreement to comply with the EAR. You will receive an email with the documentation; the order cannot be processed until it is complete.
Returns, and money-back guarantee
This listing carries a 60 day money back guarantee: return your purchase for any reason within 60 days for a full refund or exchange. Returned items must be in the condition received and in the original packaging.
All items are guaranteed to be as described. Any item not as described can be returned at our expense for a full refund, regardless of any as-is marking.
If you are dissatisfied for any reason, contact us first and give us a chance to work things out; if we cannot fix it, you receive 100% of your purchase price back.
