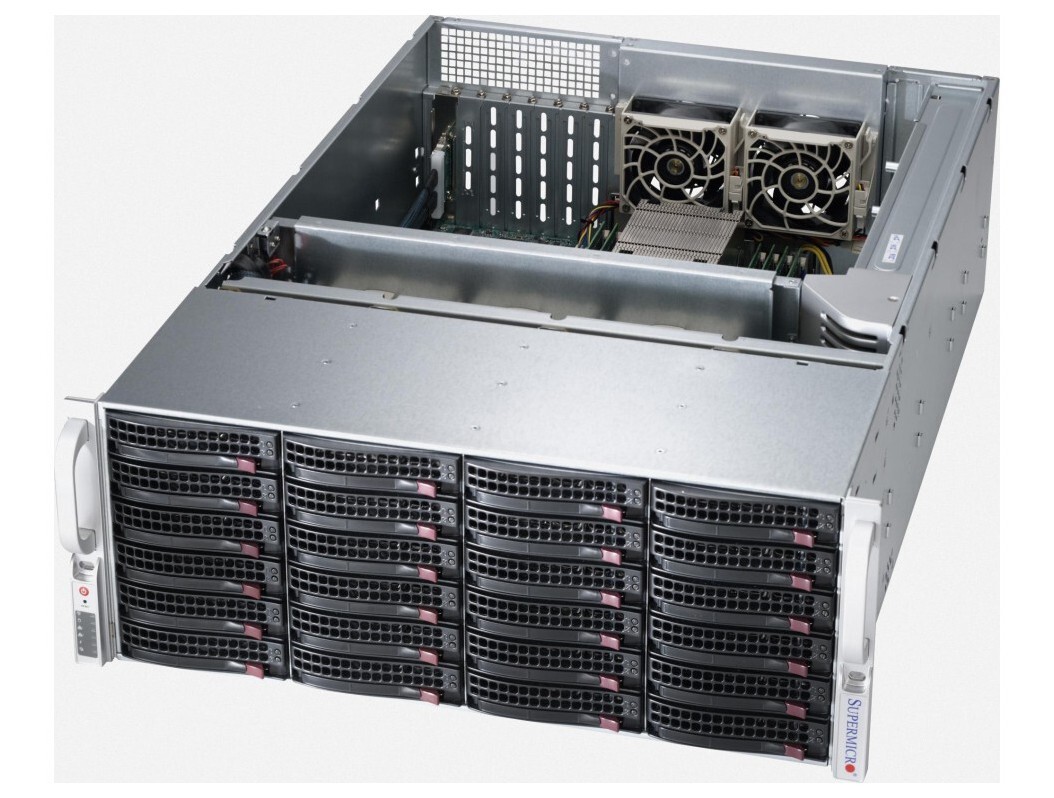

Supermicro SSG-6048R-E1CR24N 4U 24-Bay Barebones Storage Server
NEW, IN STOCK
These are leftover brand new from an OEM project. These come with a 5 Year Warranty from Vector Data.
SpecificationsProduct SKUs- Discontinued SKU (EOL). Please contact sales-rep for alternative options.SSG-6048R-E1CR24N

• SuperStorage 6048R-E1CR24N (Black)

Motherboard
Super X10DRi-T4+Processor/CacheCPU

• Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

• Dual Socket R3 (LGA 2011)

Cores / Cache

• Up to22 Cores†/ Up to55MB†Cache

System Bus

• QPI up to 9.6 GT/s

Note†BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System MemoryMemory Capacity

• 24x 288-pin DDR4 DIMM slots
• Up to 3TB†ECC 3DS LRDIMM, 1.5TB ECC RDIMM

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612 chipset

SAS

• SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60

SATA

• SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® X540 Quad Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input / OutputLAN

• 4 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 3 USB 3.0 ports (2 rear + 1 Type A)
• 2 USB 2.0 ports (2 rear)

VGA

• 1 VGA port

Serial Port / Header

• 1 Fast UART 16550 port / 1 Header

ChassisForm Factor

• 4U Rackmount

Model

• 17.2" (437mm)

Height

• 7" (178mm)

Depth

• 26.5" (673mm)

Weight

• Gross Weight: lbs ( kg)
• Net Weight: lbs ( kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button

LEDs

• Power status LED
• Hard drive activity LED
• 2 Network activity LEDs
• System Information LED
• Power fail LED

Expansion SlotsPCI-Express

• 2 PCI-E 3.0 x16 slots
• 3 PCI-E 3.0 x8 slots
• 1 PCI-E 2.0 x4 (in x8) slot
• Slot 3 & 4 occupied by controller and JBOD Expansion Port

Drive BaysHot-swap

• 24x 3.5" Hot-swap SAS3/SATA3 drive bays

Optional

• 2x 2.5" Hot-swap SATA drive bays (rear)

BackplaneSAS3/SATA3 single expander per backplaneSystem CoolingFans

• 2x 80mm hot-swap rear exhaust cooling fans
• Redundant cooling

Power Supply920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFCAC Input

• 100-240 V, 50-60 Hz, 11-4.5 Amp

DC Output

• +5V standby: 4A
• +12V: 75A

With Power Distributor

• +5V: 45A
• +3.3V: 24A
• -12V: 0.6A

Certification Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X10DRi-T4+
CSE-846BE1C-R920B1
1Super X10DRi-T4+ Motherboard
4U ChassisBackplaneBPN-SAS3-846EL1124-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSDCable 1CBL-PWEX-06452big 4 pin male to big 4 pin female, power extension 15cm, 20AWG,RoHS/REACHCable 2CBL-0296L34 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWGCable 3CBL-SAST-0531-014MINI SAS LABEL FOR REDUNDANT PWR SYSTEMSPartsMCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.Heatsink / RetentionSNK-P0048AP412U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32Heatsink / RetentionSNK-P0048P12U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MBPower SupplyPWS-920P-SQ2920W 1U Redundant PWS W/ Quiet ModeAdd On CardAOC-S3108L-H8IR-O-P1SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memoryAdd On ModuleAOM-SAS3-8I8E18-port Mini SAS HD Int-to-Ext cable adapter w/FH bracket,HF,RoHS/REACH
