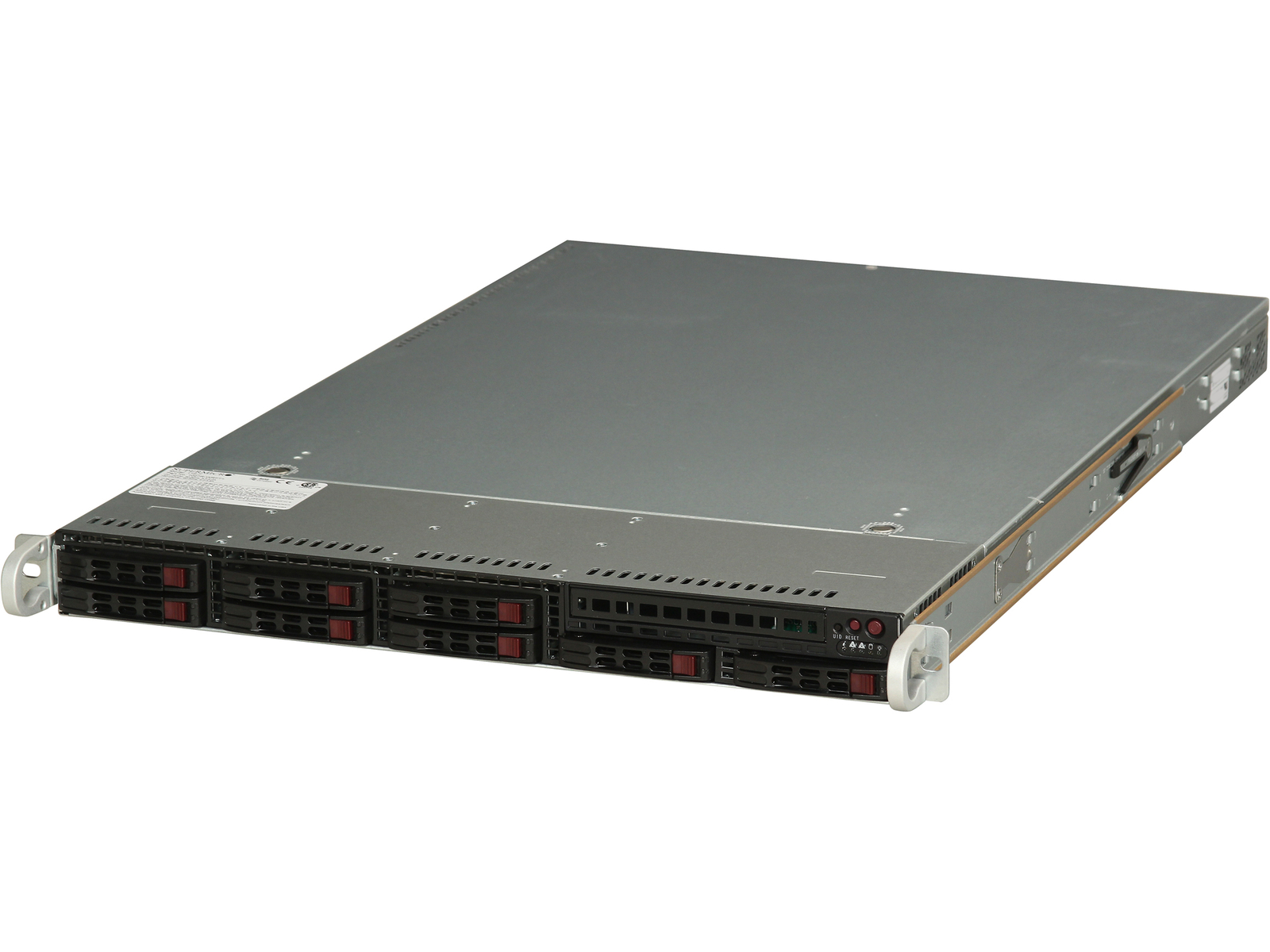

Supermicro SYS-1027R-WRFT+ Barebones Server X9DRW-3TF+ NEW IN STOCK, 5 Year Wty
Product SKUsSYS-1027R-WRFT+

• SuperServer 1027R-WRFT+ (Black)

Motherboard
Super X9DRW-3TF+Processor/CacheCPU

• Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600
  andE5-2600 v2family†
  (up to 130W TDP)

Note† BIOS version 3.0 or above is requiredCache

• Up to 30MB

System Bus

• QPI up to 8 GT/s

System MemoryMemory Capacity

• 24x 240-pin DDR3 DIMM slots
• Up to 1.5TB DDR3 ECC LRDIMM
• Up to 768GB DDR3 ECC Registered memory (RDIMM)
• Up to 128GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C606 Chipset

SATA

• SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1

SAS

• SAS from C606
• RAID 0, 1, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• Matrox G200eW

Input / OutputSAS/SATA

• Customizable storage

LAN

• 2x RJ45 10GBase-T ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 7x USB 2.0 ports total
  (2x rear + 4x via header + 1x Type A)

Video

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

ChassisForm Factor

• 1U Rackmount

Model

• 17.2" (437mm)

Height

• 1.7" (43mm)

Depth

• 26.6" (676mm)

Gross Weight

• 46 lbs (20.9kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• System Reset button
• UID button

LEDs

• Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED

Expansion SlotsPCI-Express

• 1 PCI-E 3.0 (x16) Full-height (10" length)
• 1 PCI-E 3.0 (x8) Full-height (6.6" length)
• 1 PCI-E 3.0 (x8) Low-profile (4.1" length)
• UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram andAOC Supportfor details.)

Drive BaysHot-swap

• 8 Hot-swap 2.5" SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral DrivesDVD-ROM

• Slim DVD-ROM drive (optional)

BackplaneSAS/SATA HDD Backplane
(SAS support requires optional SAS controller)System CoolingFans

• 6x 4cm Counter-rotating PWM fans

Power Supply700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2CAC Input

• 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp
• 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp

DC Output
+5V standby

• 3 Amp

DC Output
+12V

• 700W: 58 Amp @ 100-140V
• 750W: 62 Amp @ 180-240V

With Power Distributor

• +5V: 25 Amp
• +3.3V: 25 Amp
• -12V: 0.6 Amp

CertificationGold CertifiedSystem BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 35°C (41°F to 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9DRW-3TF+ Motherboard
1U ChassisBackplaneBPN-SAS-113TQ18-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSDCable 1CBL-0288L-011IPASS TO 4 SATA 70/60/50/50CM, W/ 70CM SB, RA ,30AWGCable 2CBL-0388L-011IPASS TO 4 SATA 75/75/90/90CM W/ 75cm SB. RA. 30AWGRiser CardRSC-R1UW-E8R1RSC-R1UW-E8R-O-PRiser / RetentionSNK-P0047PS21U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MBRail SetMCP-290-00062-0N1 setRail set, quick/quick, default for 1U 17.2"W SC819,119
On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of.
Vector Data builds Rugged, Carrier-Grade and Custom systems.
Vector Data is a Supermicro Authorized Partner and carries the largest inventory of Supermicro systems and parts in the world with over 10,000 brand new servers and over 80,000 motherboards in stock at 6 US warehouse locations. We make an effort to stock every Supermicro part ever produced.
We offer optional extended support contracts including 24x7 phone support and advanced parts delivery for any Supermicro products. We can also offer custom spare parts kits for any server if you would like to keep spares on-site.
On-site installation is available for an additional fee and we offer remote hands services at most major data center locations worldwide.
We offer trade-in credit for any surplus or decommissioned computer systems or data center equipment.
Only a small portion of our inventory is listed on . Please contact us to have an listing created if you require a custom configuration or a part that is not listed.
