Equipped with:
4 x Intel SSDSC2KG960GZ (D3-S4620 Series) SSD
6 x Intel SSDSC2KB480GZ (D3-S4520 Series) SSD
2 x Mellanox ConnectX-5 (Model:CX516A) NIC
1 x Mellanox ConnectX-4-LX (Model:01GR253) NIC
12 x Samsung M393A2K43EB3 - CWEGQ 16GB 2Rx8 PC4-3200AA-RE2-12 RAMSYS-1029UX-LL1-C16

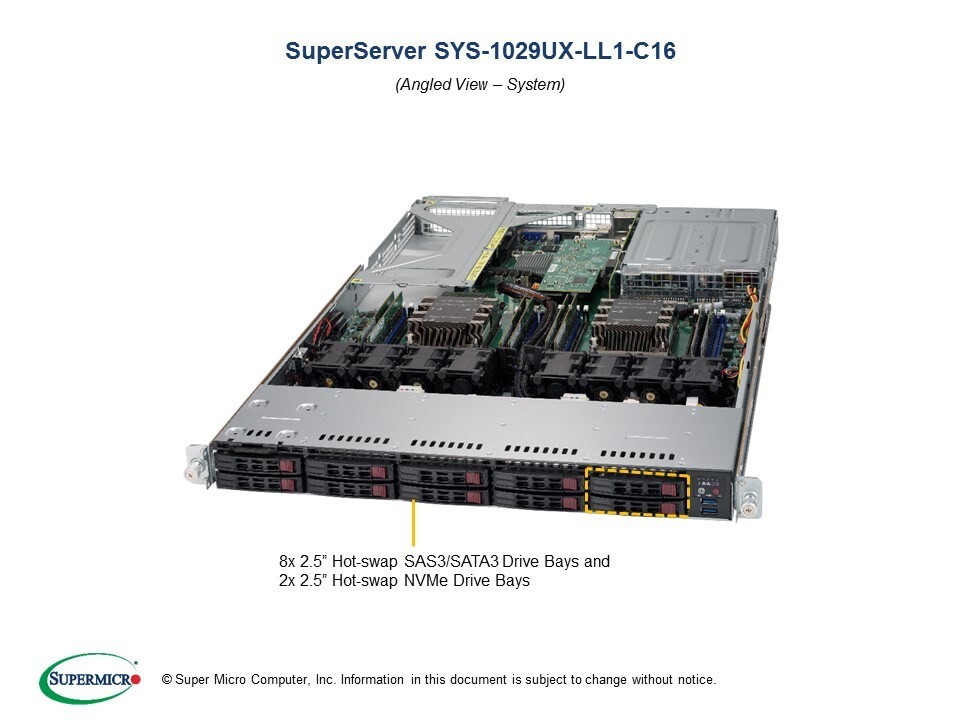

• SuperServer 1029UX-LL1-C16 (Black)

Motherboard
Super X11DPU-XLL Processor
CPU

• Dual Socket P (LGA 3647)
• Intel® Xeon® Gold 6244 included

Cores

• Up to 12 Cores

System Memory
Memory Capacity

• 16 DIMM slots
• Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
• 12x 16GB DDR4-2933MHz included

Memory Type

• 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro†† Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices
Chipset

• Intel® C621 chipset

SATA

• SATA3 (disabled)

SAS

• Broadcom 3108 controller for 8 SAS3 ports

Network Connectivity

• 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input / Output
SAS

• 8 SAS3 ports support via integrated 3108 Add-on Card

LAN

• 4 RJ45 Gigabit Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 5 USB 3.0 ports(2 rear, 2 via header, 1 Type A)

Video

• 1 VGA port

Serial Port

• 1 COM Port (1 rear)

System BIOS
BIOS Type

• AMI UEFI

Management
Software

• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog

PC Health Monitoring
CPU

• Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator

FAN

• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

Chassis
Form Factor

• 1U Rackmount

Model

• CSE-119UTS-R751P-T

Dimensions and Weight
Height

• 1.7" (43mm)

Width

• 17.2" (437mm)

Depth

• 28.5" (724mm)

Weight

• Gross Weight: 48 lbs (21.77 kg)

Available Color

• Black

Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
• 1 PCI-E 3.0 x8 (Low Profile)
• 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)
(See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap

• 8 Hot-swap 2.5" SAS3 drive bays
• 2 Hot-swap 2.5" NVMe

System Cooling
Fans

• 8 heavy duty fans with optimal fan speed control

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output AC Input

• 100-127Vac, 50-60Hz
• 200-240Vac, 50-60Hz

+12V

• Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)

12V SB

• Max: 2.1A
• Min: 0A

Certification Platinum Level [ Test Report ] Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)

Part Number Qty Description Motherboard / Chassis MBD-X11DPU-XLL CSE-119UTS-R751P-T 11 Super X11DPU-XLL Motherboard CSE-119UTS-R751P-T Chassis FAN FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 CPU P4X-LL16244 2 Intel® Xeon® Gold 6244 Memory MEM-DR416L-SL02-ER29 12 16GB DDR4-3200 2Rx8 LP ECC RDIMM,HF,RoHS Storage Control Card AOC-S3108L-H8iR-16DD 1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH Software SFT-OOB-LIC 1 OOB Management Package (per node license)
