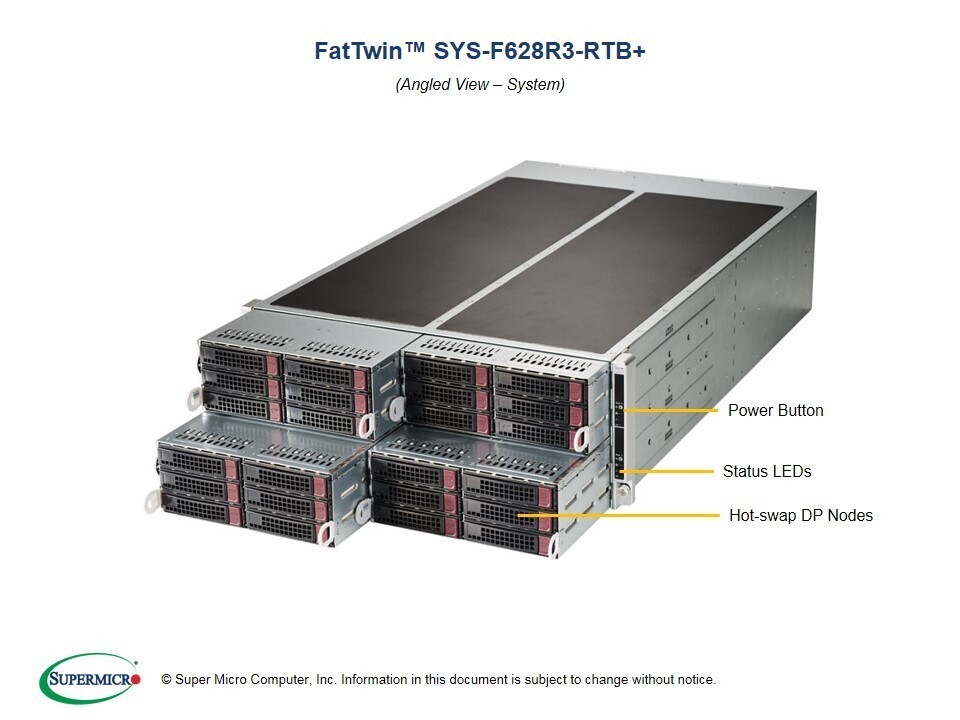

SupermicroSYS-F628R3-RTB+
These are leftover brand new from an OEM project. These come with a 5 Year Warranty from Vector Data.
SpecificationsProduct SKUsSYS-F628R3-RTB+

• SuperServer F628R3-RTB+ (Black)

Motherboard
Super X10DRFRProcessor/CacheCPU

• Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

• Dual Socket R3 (LGA 2011)

Cores / Cache

• Up to22 Cores†/ Up to55MB†Cache

System Bus

• QPI up to 9.6 GT/s

Note†BIOS version 2.0 or above is requiredNote* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System MemoryMemory Capacity

• 16x 288-pin DDR4 DIMM slots
• Up to 2TB†ECC 3DS LRDIMM, 1TB ECC RDIMM

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612 chipset

SATA

• SATA 3.0 (6Gbps) w/ RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Intel® i350-AM2 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics

• ASPEED AST2400 BMC

Input / Output (per node)Serial ATA

• 10x SATA3 (6Gbps) ports

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 2x USB 3.0 ports

VGA

• 1x VGA port

ManagementSoftware

• SuperDoctor® 5
• Watch Dog
• NMI
• IPMI 2.0
• SUMandSSM

Power Configurations

• ACPI / APM Power Management
• Power-on mode for AC power recovery

ChassisForm Factor

• 4U Rackmount

Model

• 17.63" (448mm)

Height

• 6.96" (177mm)

Depth

• 29" (737mm)

Package

• 28.3" (W) x 15.0" (H) x 42.4" (D)

Weight

• Net Weight: 105 lbs (47.63 kg)
• Gross Weight: 150 lbs (68.04 kg)

Available Colors

• Black

Front PanelButtons

• Power On/Off button
• UID button

LEDs

• Power status LED
• Hard drive activity LED
• 2x Network activity LEDs
• Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)PCI-Express

• 1 PCI-E 3.0 x16 (LP) + 1 Micro LP
• MicroLP Adapter Matrix(Networking options)

Drive Bays (per node)Hot-swap

• (6+2) 3.5" Hot-swap SATA3 HDD trays

Backplane1x SAS/SATA backplaneSystem Cooling (per node)Fans

• 2x 8cm 11k RPM middle fans

Power Supply1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2AC Input

• 1000W Output @ 100-140V, 8-12A, 50-60Hz
• 1280W Output @ 180-240V, 6-8A, 50-60Hz

DC Output

• 1000W: +12V/83A; +5Vsb/4A
• 1280W: +12V/106.7A, +5Vsb/4A

Certification
Platinum Certified
[Test Report]System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  5°C to 40°C (41°F to 104°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X10DRFR
CSE-F424AS-R1K28BP4
1Super X10DRFR Motherboard
4U ChassisBackplaneBPN-SAS-F424-A646-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 6x 3.5-inch SAS/SATA HDDBackplaneBPN-SAS-F424-A242-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 2x 3.5-inch SAS/SATA HDDBackplaneBPN-ADP-F418LS4Power Distribution Board for X10DRFR,RoHS/REACH,PBFCable 1CBL-OTHR-0022L420 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBFCable 2CBL-0157L-028CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWGCable 4CBL-0480L44 pins to 4 pins 40cm PDB to MB power cable HF. 18AWGCable C14 TO C13,4FT,17AWGCable 9CBL-0486L82x2 to 2x2 15cm power cable HF. 18AWGLabelLBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMSManualMNL-1648-QRG1Quick Reference Guide for / RetentionSNK-P0048PS42U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MBHeatsink / RetentionSNK-P0048P42U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MBPower SupplyPWS-1K28P-SQ41U 1280W, redundant single output power supply
On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of.
Vector Data builds Rugged, Carrier-Grade and Custom systems.
Vector Data is a Supermicro Authorized Partner and carries the largest inventory of Supermicro systems and parts in the world with over 10,000 brand new servers and over 80,000 motherboards in stock at 6 US warehouse locations. We make an effort to stock every Supermicro part ever produced.
We offer optional extended support contracts including 24x7 phone support and advanced parts delivery for any Supermicro products. We can also offer custom spare parts kits for any server if you would like to keep spares on-site.
On-site installation is available for an additional fee and we offer remote hands services at most major data center locations worldwide.
We offer trade-in credit for any surplus or decommissioned computer systems or data center equipment.
Only a small portion of our inventory is listed on . Please contact us to have an listing created if you require a custom configuration or a part that is not listed.
