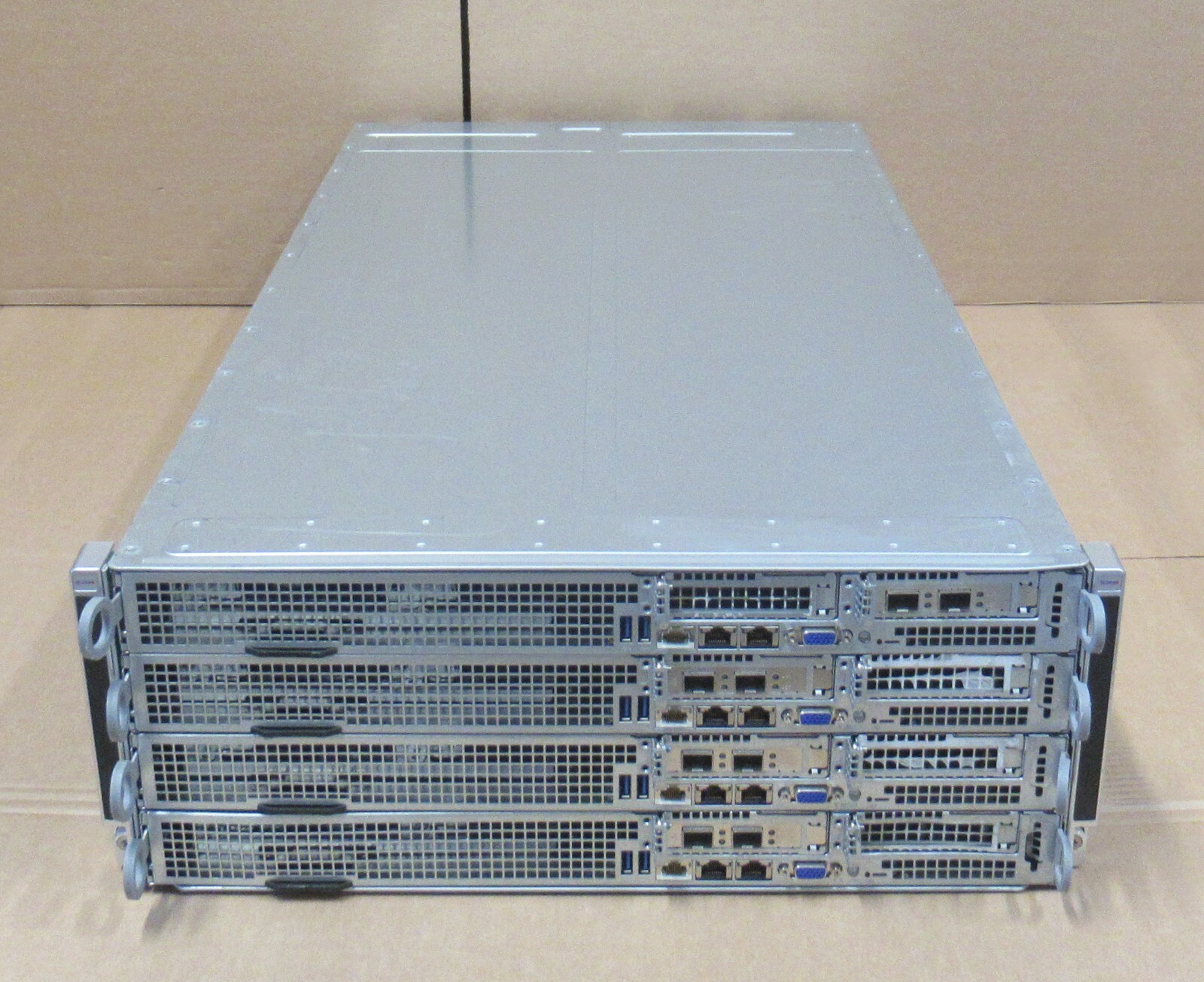

Supermicro SuperServer F618H6-FTL+ 4x Node 8x Intel CPU 4U Rackmount Server
Chassis Part Number:F414-20
Motherboard Part Number:X10DRFF-CG
2 x Backplane:BPN-SAS-801T-A4
1 x Backplane:BPN-SAS-801T-A3

In Good Condition, Full Working Order
Tested
2 Year Warranty

Includes:

• 1 xSupermicro SuperServer F618H6-FTL+ 4x Node 8x Intel CPU 4U Rackmount Server
• 2 xSupermicro 2000W 1U Redundant Power Supply x Front Nodes with:
• 2 x E5-2670v3 Intel Xeon 12 Core 2.3GHz Processor
• 64GB ram
• Motherboard X10DRFF-CG
• 2 x BPN-SAS-801T-A4
• 1 x BPN-SAS-801T-A3
• 1 x Riser Card RSC-88-F2
• 2 x Front Nodes with:
• 2 x E5-2658v4 Intel Xeon 14 Core 2.3GHz Processor
• 64GB Ram
• Motherboard X10DRFF-CG
• 2 x BPN-SAS-801T-A4
• 1 x BPN-SAS-801T-A3
• 1 x Riser Card Motherboard Full Specification
  Product SpecificationsProduct SKUsMBD-X10DRFF-CG -B
  • X10DRFF-CG(Bulk Pack)
  Physical StatsForm Factor
  • 18.72" x 8.54" (47.55cm x 21.69cm)
  Processor/CacheCPU
  • Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP**)
  • Dual Socket R3 (LGA 2011)
  Cores/Cache
  • Up to22 Cores†/ Up to55MB†Cache
  System Bus
  • QPI up to 9.6 GT/s
  Note

  **Motherboard supports this maximum TDP, Please verify your system can thermally support

  Note

  †BIOS version 2.0 or above is required

  System MemoryMemory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB†ECC 3DS LRDIMM,256GB ECC RDIMM
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2V
  Error Detection
  • Corrects single-bit errors
  On-Board DevicesChipset
  • Intel® C612 chipset
  AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  SAS
  • Broadcom 3008 SAS3 (12Gbps) controller; SW RAID 0, 1, 5, 6, 10, 50, 60, JBOD support (IT mode)
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
  Video
  • ASPEED AST2400 BMC
  Input / OutputSATA
  • 10x SATA3 (6Gbps) ports
  SAS
  • 8x SAS3 (12Gbps) ports
  LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  USB
  • 2x USB 3.0 ports (rear)
  Video
  • 1x VGA port
  Serial Port / Header
  • 1x Header
  DOM
  • 2x SuperDOM (Disk on Module) ports
  TPM
  • 1x TPM Header

  SA 291036 291038 A MEM dup.co.ukSuperServer(s) with X10DRFF-CGModel(s)
  • SYS-F618H6-FTL+
  • SYS-F618H6-FT+
  • SYS-F648G2-FC0+
  • SYS-F628G3-FC0+
  • SYS-F628G2-FC0+
  • SYS-F628R3-FC0+

  • • 1 PCI-E 3.0 x32 right riser slot
    • 1 PCI-E 3.0 x16 slot
    • 2 PCI-E 3.0 x8 slot
    • 1 PCI-E 2.0 x4 (in x8) slot
    System BIOSBIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.3
    • ACPI 1.0 / 2.0 / 3.0 / 4.0
    • USB Keyboard support
    • SMBIOS 2.7.1
    • UEFI 2.3.1
    ManagementSoftware
    • IPMI 2.0
    • SPM
    • SUM
    • SuperDoctor® 5
    • Watch Dog
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    PC Health MonitoringVoltage
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, 1.2V (VDIMM), VBAT, Memory Voltages.
    • 6 Phase-switching voltage regulator
    FAN
    • 8x 4-pin fan headers (up to 8 fans)
    • 8x fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temparature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Control for 4x Fan Connectors (2x fan on backplane)
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • RoHS
    Operating EnvironmentOperating Temparature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temparature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
