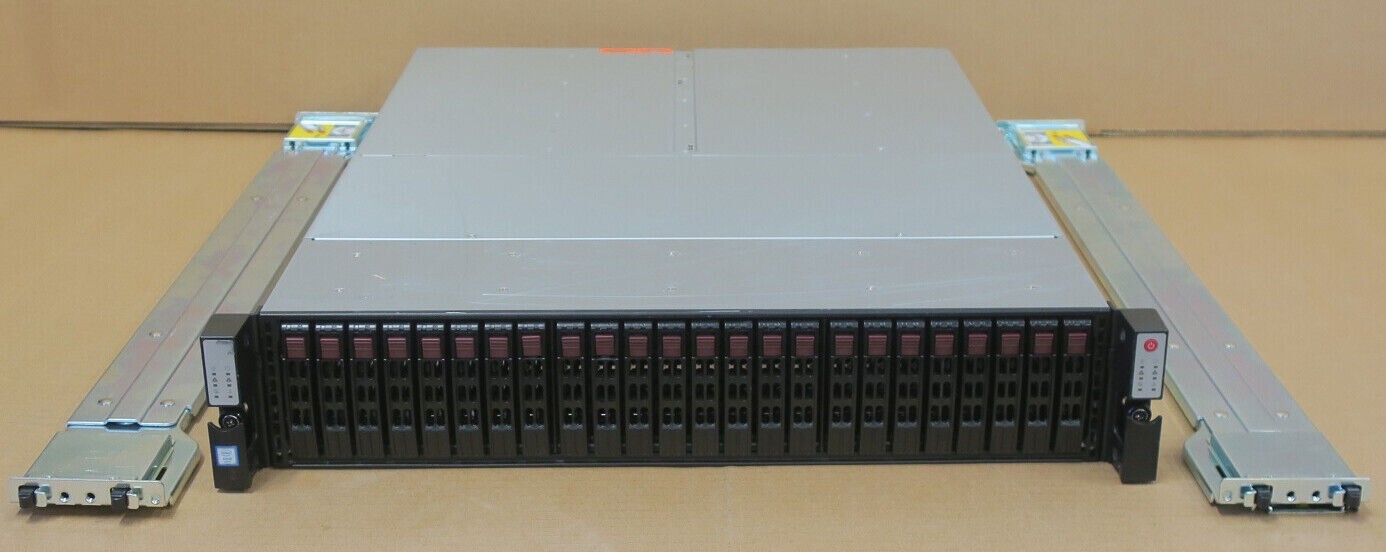

Supermicro SuperStorage 2028R-DE2CR24L CSE-927 + 2x CTO X10DRS-2U Node Servers
Chassis Model: 2028R-DE2CR24LSupermicro Node Motherboard Good Condition, Full Working OrderTested2 Years WarrantyIncludes 4x Heatsinks & 2x Power Supplies
CTO Configure-To-Order - No Processors, No Memory, No Hard Drives Included
Included

• 1 x Supermicro2028R-DE2CR24LCSE-927 24-Bay Chassis With:
• 1 x BackplaneBPN-SAS3-927-N4rev 1.00 with24-Bay 2.5" SAS/SATA Hard Drive Bays and Caddies
• both nodes can access all 24 drive bays
• 2 x 1200W Power Supplies - PWS-1K23A-1R
• 2 x Super X10DRS-2U rev 1.03 Nodes Each With:
• 2 x Heatsinks (SNK-P0048PS, SNK-P0047PS)
• 1 x Riser CardRSC-R2US-3E8R with 3x PCIe 3.0 x8 Slots
• 1 x SupermicroAOM-S3008-L8-SB SAS 12Gb/s RAID Mezzanine Module Card(also supports HBA)
• RAID Levels: 0, 1, 1E, and (Two per System)
  Super X10DRS-2UProcessor/Cache (per Node)CPU
  • Intel® Xeon® processor E5-2600v4†/ v3 family (up to 145W TDP)*

  • Dual Socket R3 (LGA 2011)
  Cores / Cache
  • Up to22 Cores†/ Up to55MB†Cache
  System Bus
  • QPI up to 9.6 GT/s
  Note†BIOS version 2.0 or above is requiredSystem Memory (per Node)Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB†ECC 3DS LRDIMM, 256GB ECC RDIMM
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2 V
  Error Detection
  • Corrects single-bit errors
  NVDIMM
  • NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details)
  On-Board Devices (per Node)Chipset
  • Intel® C612 chipset
  SAS
  • SAS3 (12Gbps) via Broadcom 3008
  SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • 100Mb private ethernet between controller nodes
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
  Video
  • ASPEED AST2400 BMC
  Others
  • PCI-E 3.0 x8 node to node/NTB connectivity
  • PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required
  Input / Output (per Node)SAS
  • 2 JBOD expansion ports per node
    (mini-SAS HD)
  LAN
  • 2 RJ45 10GBase-T LAN ports
  • IPMI LAN shared port
  USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
  Video
  • 1 VGA port
  Serial Port / Header
  • 1 COM port (rear)
  ChassisForm Factor
  • 2U Rackmount
  Model
  • 17.2" (437mm)
  Height
  • 3.5" (89mm)
  Depth
  • 25.25" (641mm)
  Gross Weight
  • 67 lbs (30.4 kg)
  Available Colors
  • Black
  Front PanelButtons
  • Power On/Off button
  LEDs
  • Power LED
  • Heartbeat LED
  • 2 Network activity LEDs
  • Power Fail LED
  • Overheat/Fan Fail LED
  Expansion Slots (per Node)PCI-Express (per node)
  • 3 PCI-E 3.0 x8 low-profile slots
  Drive BaysHot-swap
  • 24 Hot-swap 2.5" SAS3 HDD bays
  BackplaneSAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansionSystem CoolingFans
  • 4 Hot-swap 8cm midplane fans, 2 counter-rotating 4cm fans per node
  Power SupplyRedundant 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mmAC Input
  • 1000W Output @ 100-127V, 12-15A, 50-60Hz
  • 1200W Output @ 200-240V, 7-8.5A, 50-60Hz
  DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1200W: +12V/100A, +5Vsb/4A
  CertificationTitanium Certified
  System power redundancy provided at 240V only.System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
  Operating Environment / ComplianceRoHS

  • RoHS Compliant
  Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
