Key Features

1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
   Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
2. Intel® C621
3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
   Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
4. 4 PCI-E 3.0 x16,
   2 PCI-E 3.0 x8,
   2 PCI-E 3.0 NVMe x4 Internal Port(s)
   M.2 Interface:PCI-E 3.0 x4
   M.2 Form Factor:2260, 2280, 22110
   M.2 Key:M-Key
5. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
6. Dual LAN with GbE from C621
7. 1 VGA port

Specifications

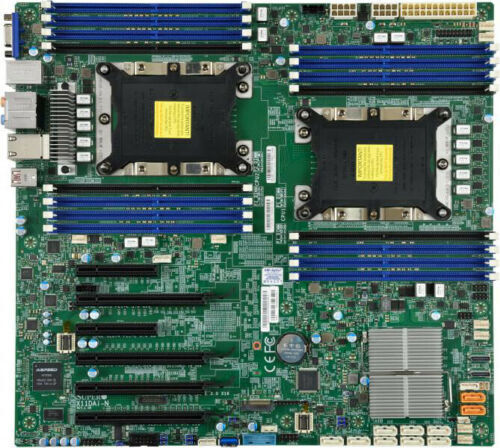

Product SKUsMBD-X11DAi-N

• X11DAi-N

Physical StatsForm Factor

• 12" x 13" (30.48cm x 33.02cm)

ProcessorCPU

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
• Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s

System MemoryMemory Capacity

• 16 DIMM slots
• Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
• Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

Memory Type

• 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

• LRDIMM: 64GB, 128GB
• RDIMM: 64GB, 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C621

SATA

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2500

Audio

• 7.1 HD Audio

Graphics

• ASPEED AST2500 BMC

Network Controllers

• Dual LAN with GbE from C621

Input / OutputUSB

• 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
• 4 USB 3.2 Gen2 port(s) (1 rear type C; 2 rear; 1 rear type A)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

DOM

• 2 SuperDOM(Disk on Module) ports

TPM

• 1 TPM Header

Expansion SlotsPCI-E

• 4 PCI-E 3.0 x16,
• 2 PCI-E 3.0 x8

M.2

• M.2 Interface: PCI-E 3.0 x4
• Form Factor: 22110, 2280, 2260
• Key: M-Key

System BIOSBIOS Type

• 32MB AMI SPI Flash ROM

ManagementSoftware

• SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog

PC Health MonitoringVoltage

• Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, Memory Voltages

LED

• Power LED
• BMC/IPMI Heartbeat LED
• Suspend static indicator LED
• CPU / System Overheat LED

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support

FAN

• 7x 4-pin fan headers (up to 7 fans)
• PWM fan speed control
• Status monitoring for speed control
• 7 fans with tachometer status monitoring

Other Features

• RoHS
• Node Manager Support
• CPU thermal trip support for processor protection
• Chassis intrusion detection

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)NamePart MotherboardI/O ShieldMCP-260-00115-0N•1STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACHIO CableCBL-0044L•1SATA CABLE 61CM FLAT S-S PBF
