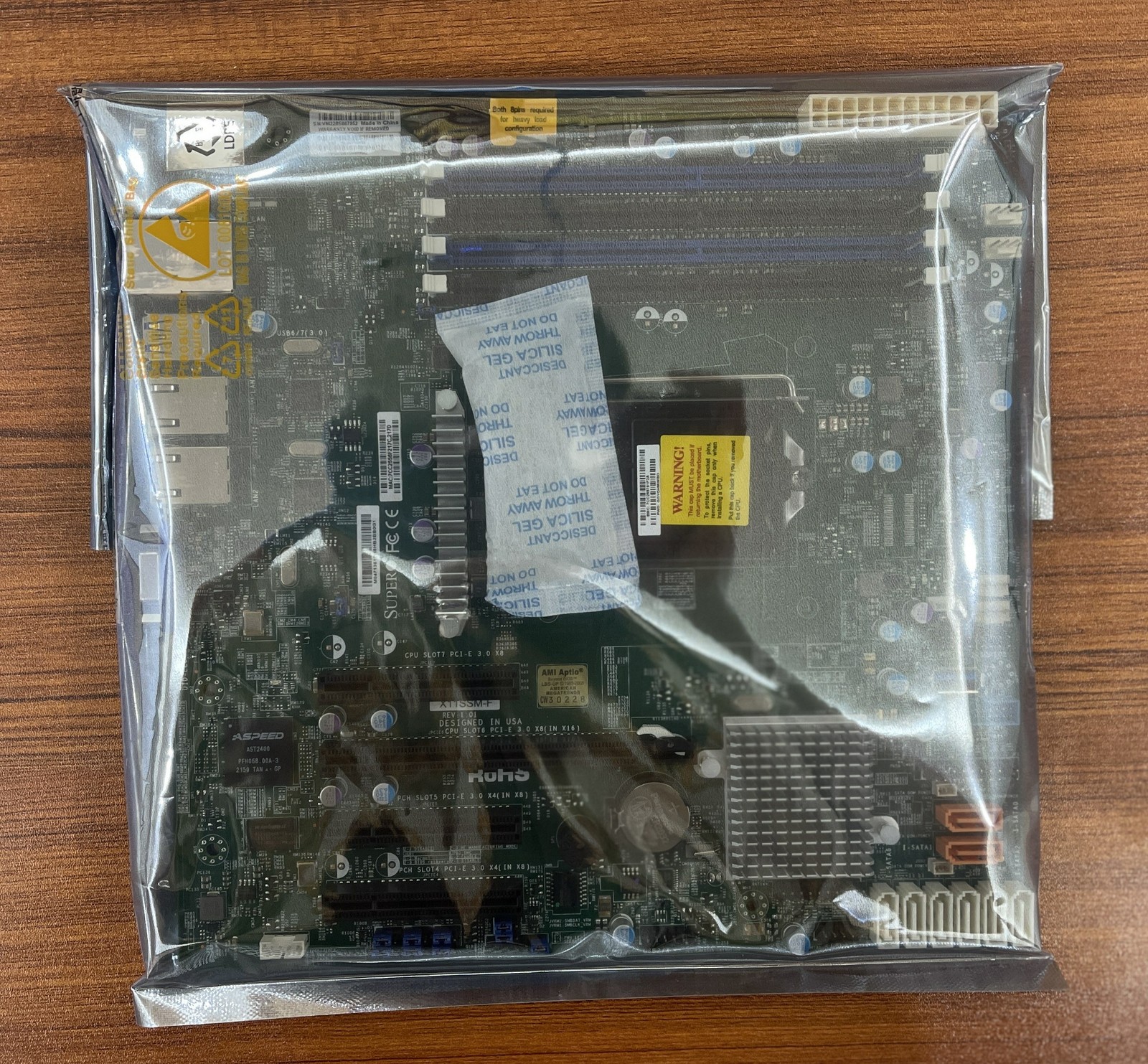

Supermicro X11SSM-F For Intel C236 Chipset LGA1151 DDR4 Server Motherboard

Product Description

Product SKUsMBD-X11SSM-F
Physical StatsForm Factor

• 9.6" x 9.6" (24.38cm x 24.38cm)

ProcessorCPU

• Intel® Celeron®, Intel® Pentium®, Intel® 7th/6th Generation Core i3 series, Intel® Xeon® processor E3-1200 v6/v5
• Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 80W TDP

System MemoryMemory Capacity

• 4 DIMM slots
• 64GB Unbuffered ECC UDIMM, DDR4-2400MHz

Memory Type

• 2400/2133/1866/1600 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs

DIMM Sizes

• 4GB, 8GB, 16GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C236

SATA

• Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2400 BMC

Graphics

• 1 ASPEED AST2400 BMC port(s)

Network Controllers

• Dual LAN with Intel® Ethernet Controller I210-AT

Input / OutputUSB

• 3 USB 3 port(s) (1 Type A; 2 via header)
• 6 USB 2.0 port(s) (4 via header; 2 rear)
• 2 USB 3.0 port(s) (2 rear)

Video Output

• 1 VGA port(s)

Serial Port

• 2 COM Port(s) (1 header; 1 rear)

TPM

• 1 TPM Header

Expansion SlotsPCIe

• 1 PCIe 3.0 x8 (in x16 slot),
• 1 PCIe 3.0 x8,
• 2 PCIe 3.0 x4 (in x8 slot)

System BIOSBIOS Type

• 128MB SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI 2.3.1

ManagementSoftware

• SuperDoctor® 5, NMI,SUM,SPM, Intel® Node Manager,SSM,IPMI2.0, Watchdog

Power Configurations

• Power-on mode for AC power recovery, ACPI Power Management

PC Health MonitoringVoltage

• VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V

LED

• UID/Remote UID
• CPU / System Overheat LED

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
• PECI

FAN

• 5x 4-pin fan headers (up to 5 fans)
• Thermal control tachometer fan connectors
• Fan speed control
• Overheat LED indication

Other Features

• WOL
• Node Manager Support
• CPU thermal trip support for processor protection
• Control of power-on for recovery from AC power loss

Operating EnvironmentOperating Temperature Range

• 0°C - 50°C (32°F - 122°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95%
