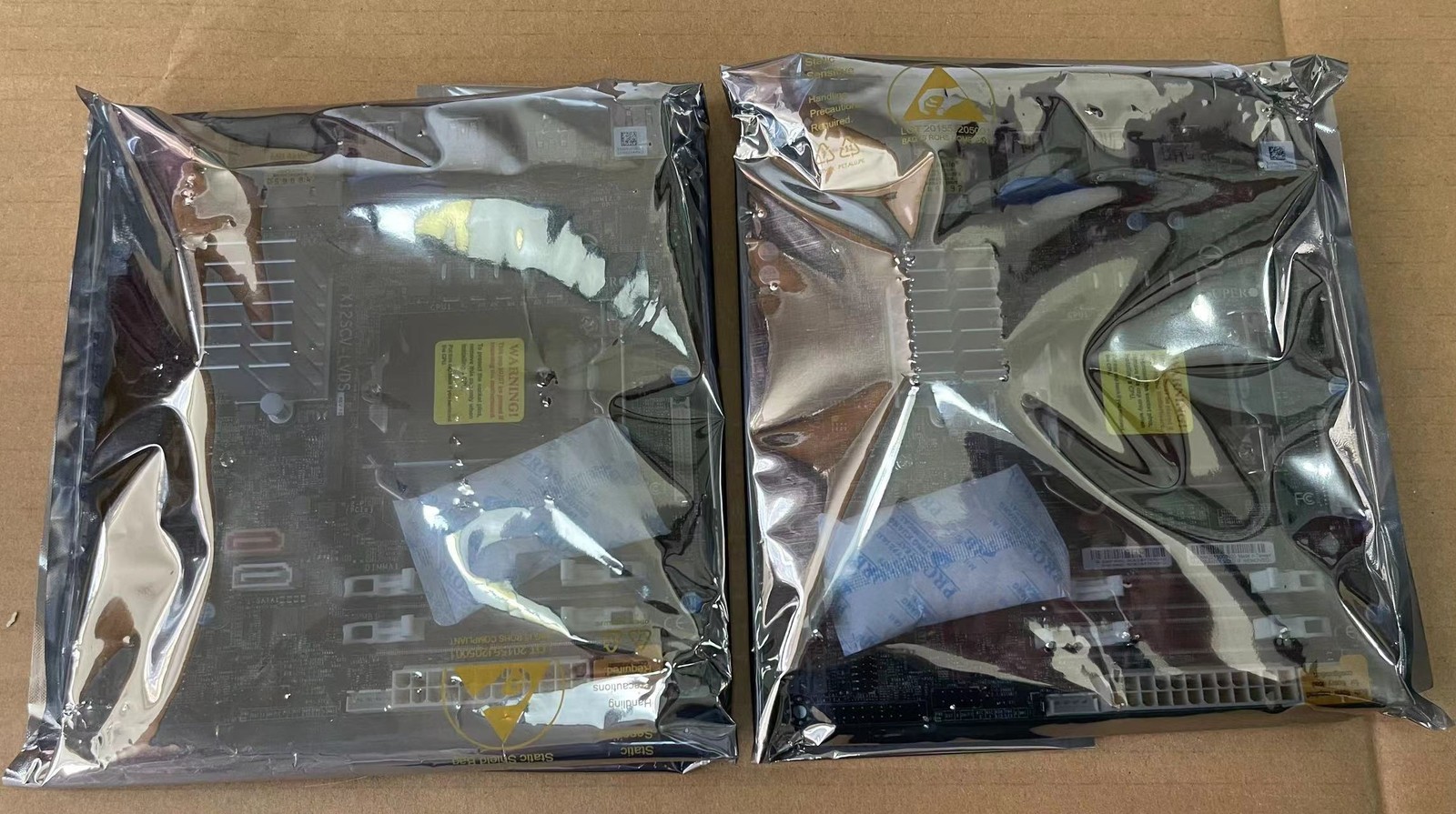

Supermicro X12SCV-LVDS motherboard LGA1200 M.2,hdmi/DP/LVDS,PCIE16X

Product Description

Product SKUs

Physical Stats

Form Factor

·Mini-ITX

Dimension

·6.7" x 6.7" (17.02cm x 17.02cm)

Processor

CPU

·Intel® Xeon® W-1200 Processors, 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor

·Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 65W TDP

Core

·Up to 10 cores

Note

·** Motherboard supports this maximum TDP. Please verify your system can thermally support.
**The X12SCV-LVDS does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.

System Memory

Memory Capacity

·2 DIMM slots

·Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MT/s

Memory Type

·2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM

DIMM Sizes

·4GB, 8GB, 16GB, 32GB

Memory Voltage

·1.2V

Error Detection

·Corrects single-bit errors

·Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

·Intel® W480E

SATA

·Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1

Audio

·ALC 888S HD Audio

Graphics

·1 Intel® HD Graphics port(s)

·3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

Network Controllers

·Single LAN with Intel® PHY I219LM LAN controller

·Single LAN with Intel® Ethernet Controller I210-AT

Input / Output

SATA

·2 SATA3 (6Gbps) port(s)

LAN

·2 RJ45 Gigabit Ethernet LAN ports

USB

·4 USB 2.0 port(s) (4 via header)

·4 USB 3.2 Gen2 port(s) (4 rear type A)

Video Output

·1 DP (DisplayPort) port(s), 2 HDMI port(s), 1 LVDS port(s)

Serial Port

·2 COM ports via 1 header

DOM

·1 SuperDOM(Disk on Module) ports

TPM

·1 TPM Header & Chip both

Expansion Slots

PCIe

·1 PCIe 3.0 x16 slots (16/NA or 8/8)

M.2

·M.2 Interface: 1 CNVi/PCIe 3.0 x1; 1 SATA/PCIe 3.0 x4

·Form Factor: 2230, 2242/2280

·Key: E-Key, M-Key

System BIOS

BIOS Type

·AMI UEFI

BIOS Features

·ACPI 6.1

·SMBIOS 3.1

·PCI FW 3.0

·UEFI 2.7

·RTC (Real Time Clock) Wakeup

Management

System Management Software

·SuperDoctor 5

Power Configurations

·ATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input

Security

Hardware

·Trusted Platform Module (TPM) 2.0

PC Health Monitoring

Voltage

·VBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V

LED

·Power LED

Temperature

·Thermal Control for 3 Fan Connectors

FAN

·3x 4-pin fan headers (up to 3 fans)

·System level control

·PWM fan speed control

·Fan speed control

·3 fans with tachometer monitoring

Other Features

·WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source

Operating Environment

Operating Temperature Range

·0°C - 60°C (32°F - 140°F)

Non-Operating Temperature Range

·-40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range

·10% - 85% (non-condensing)

Non Operating Relative Humidity Range

·10% - 95% (non-condensing)
