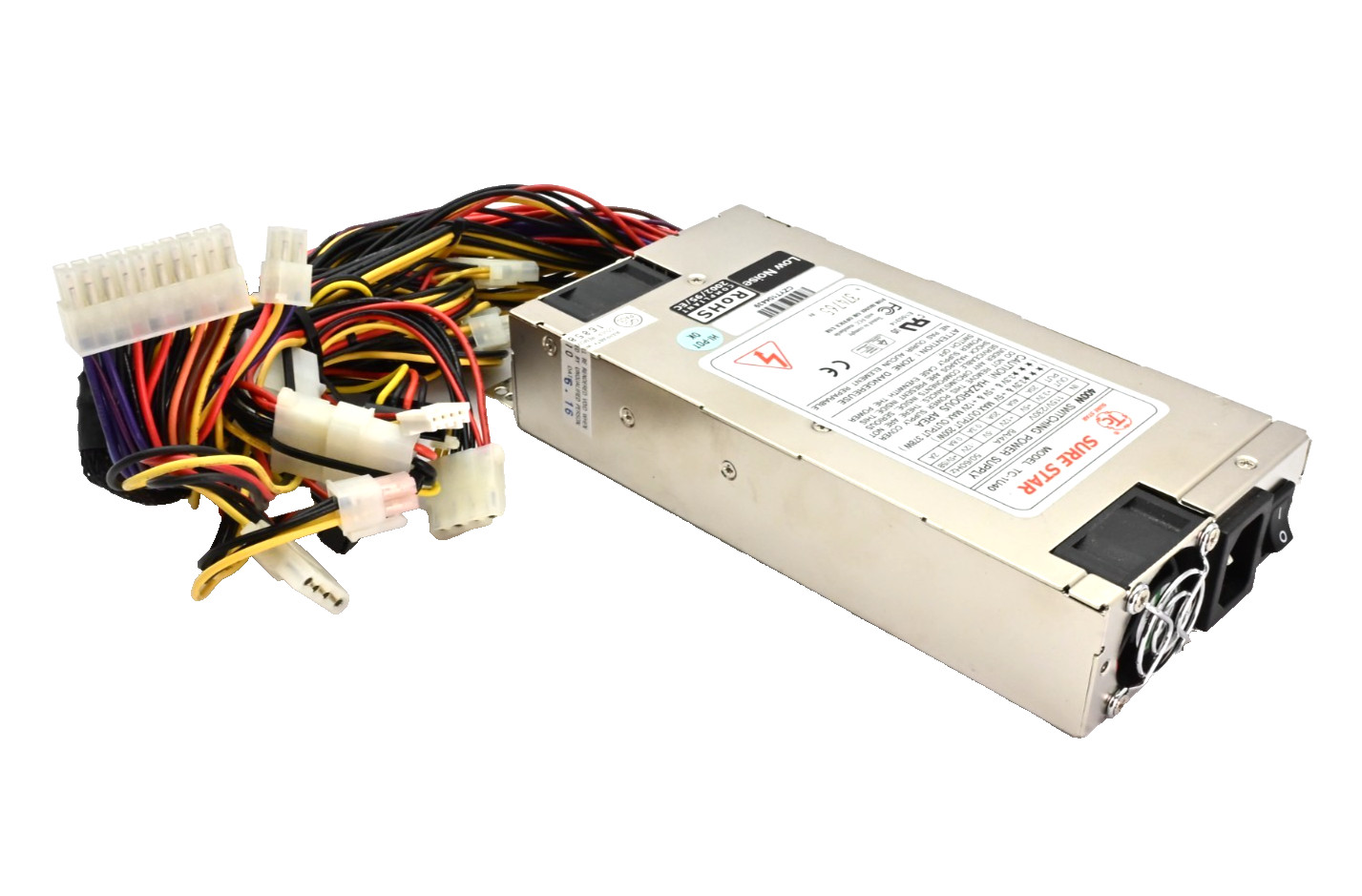

SureStar Computer TC-1U40 400W Switching Power Supply 1U EPS 12V / P4 24/20+8+4 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
VOLTAGE：90～132 or 185～260V, (115/230 auto) - FREQUENCY：50/60Hz - INPUT CURRENT：8A/4A For 115/230VAC - INRUSH CURRENT：60A/80A MAX FOR 115/230
OUTPUT
VOLTAGE
OUTPUT CURRENT
REGULATION
OUTPUT
MIN ( A )
MAX ( A )
LOAD
LINE
RIPPLE & NOISE MAX. [ P-P ]
+5V
3
40
±5%
±1%
50mV
+12V
2
20
±5%
±1%
120mV
-5V
0.1
0.3
±10%
±1%
150mV
-12V
0.1
0.8
±10%
±1%
150mV
+3.3V
1
20
±5%
±1%
50mV
+5VSB
0.1
2
±5%
±1%
50mV
The combined output power +5V&+3.3V shall not exceed 200W. The total power shall not exceed 400W.
Dimension : D200 X W100 X H40.5mm
Cooling : By forced air 2x40mm Fan
Temperature range : Operation 0¡ãC ~ 50¡ãC
Hold up time : 16ms at maximum load & normal input voltage
Efficiency : 68% T ypical ( Normal Line )
Power good signal : Should be asserted high to indicate that+5VDC and +3.3VDC output are above the low voltage thresholds. Compatible signal out with 100ms to 500ms.
Over power protection : The power supply shall shout down output power exceeds 130% to 160%
Over voltage protection : Standard on +5.0V, set at 6.25VDC ± 0.75VDC
Short circuit protection : A short circuit placed between the DC return and the output shall cause no damage and the power supply shall shutdown.
EMI : FCC part 15, subpart B, Class B, EN55022 CISPR22 Class B.
