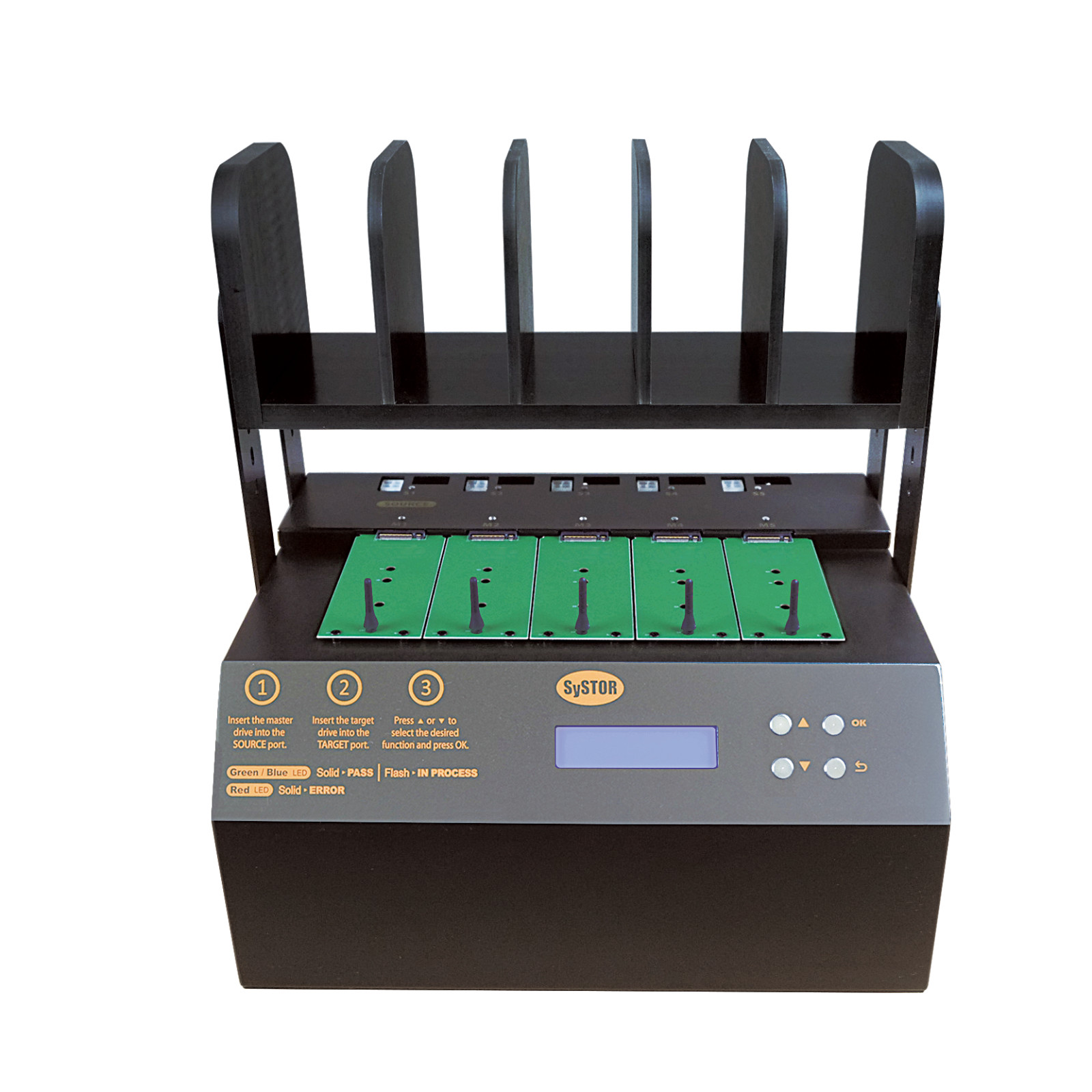

Systor M.2 NVMe PCIe/SATA SSD/HDD duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) M.2 or SATA solid state SSD drives or HDD hard disk drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation even when the number of target devices increase. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media.These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.

* Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.

NVME SIZE COMPATIBILITY

Compatible sizes:

NVMe M.2

SATA M.2

SATA 3.5" HDD

SATA 2.5" HDD

SATA 2.5" SSD

DOWNLOADABLE & PRINTABLE EVENT LOG

Assists users with monitoring, recording, and managing the entire duplication process.

View and analyze detailed information for each port such as job status, date/time stamps, and drive identification numbers.

Connect the Log File Printer* for event log printouts.

* Sold separately

CUSTOMIZABLE SATA HDD RACK

Customize the configuration of the SATA HDD rack to best utilize space in your work area.

Slot dividers keep your HDDs in place during duplication.

DAISY CHAIN MULTIPLE NVME DUPLICATORS

Connect multiple NVMe duplicators together to increase the amount of copies you can create at the same time from one source slot of the duplicator.

Note: Only daisy chain same speed models.

INTELLIGENT DUPLICATION (COPY MODES) System and Files (Quick Copy Mode)

Copies only the data area and skips empty space, reducing the copy duration time.

All Partitions

Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.

Whole Media

Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.

Percentage Copy

Set a selected percentage of source/master capacity to copy.

SANITIZATION METHODS (ERASE MODES)
Quick Erase

Erases the device's index table, and only takes a few seconds to complete.

Full Erase

Erase all data from the device by overwriting each sector.

DoD 3-Pass Erase

Complies with the 3-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M.

DoD 7-Pass Erase

Complies with the 7-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M ECE.

Secure Erase

Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.

Enhanced Secure Erase

Complies with SSD erasure standards of the National Institute of Standards and Technology (NIST) 800-88

Erase HPA

Remove the drives' HPA (Host Protected Area) to free up space.

Erase DCO

Remove the drives' DCO (Device Configuration Overlay) partition.

Features
Descriptions
Operation Type

• Stand-alone, FPGA-based design (no PC required)

Controller Design

• Embedded controller is designed to support capacities over 18TB+.
• Constant improvement supports latest market-available devices.

Devices Supported

• Automatically detect NVMe and/or SATA signals to easily copy devices from one interface to another.


Hot Swap Supported

• Supports hot swapping of devices.

Bandwidth Performance

• Peak transfer speeds up to 36GB/min. (600MB/sec.)

• Actual performance is dependent on media transfer speeds.
• Dedicated bandwidth enables high-volume replications without speed degradation.

Read-Only Or Eraseable Source Port

• Built-in feature. Enables/disables source media to be erased/sanitized during erase process.


Modular Port Design

• Replace ports easily to reduce downtime and for cost-effective long-term usage.

PRODUCT FUNCTIONS

Features
Descriptions
Copy Modes

• System and Files(Quick Copy Mode):
  Copies data and skips empty space. Only supports Windows, Mac, and Linux.
• All Partitions:
  Set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
• Whole Media:
  Copies from the initial sector to the end, bit-by-bit. No format limitations. Supports all systems and proprietary formats, along with various brands.
• Percentage Copy:
  Set a selected percentage of source/master capacity to copy.

Compare (Verification)

• Compares the copied target devices against the source for accuracy.


Sanitization Modes

• Quick Erase:
  Erasesdevice's index table, and only takes a few seconds to complete.
• Full Erase:
  Erasesalldata from the device by overwriting each sector.
• DoD 3- pass Erase:
  Complies with the 3-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M.
• DoD 7- pass Erase:
  Complies with the 7-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M ECE.
• Secure Erase:
  Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.

• Enhanced Secure Erase:
  Complies with SSD erasure standards of the National Institute of Standards and Technology (NIST) 800-88.

• Erase HPA:
  Remove the drives' HPA (Host Protected Area) to free up space.
• Erase DCO:
  Remove the drives' DCO (Device Configuration Overlay) partition.

Quality Check

• Check for bad sector, storage capacity or speed. Use this enhanced function to determine if the M.2 NVMe modules are in optimal condition.

PRODUCT COMPATIBILITIES

Compatibilities
Descriptions
Compatible Devices

• NGFF (M.2): 2230, 2242, 2260, and 2280
• NVMe M.2
• SATA M.2
• SATA 3.5" HDD
• SATA 2.5" HDD
• SATA 2.5" SSD

Supported Formats

• Quick Copy Function: Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX).
• Whole Device Copy Function: All Formats, including proprietary formats.

Supported O/S

• All (Windows, Mac, Linux, and other proprietary systems).

PRODUCT SPECIFICATIONS

Specifications
Descriptions
LCD Display

• 2 x 20 Backlit Monochrome LCD Display

Control Panel

• 4 Push Buttons (▲, ▼, OK, ESC)

Power Requirements

• AC 100~240 V

Operational Temperature

• 41°F ~ 113°F (5°C ~ 45°C)

Non-operational Temperature

• -4°F ~ 185°F (-20°C ~ 85°C)

Humidity

• Operating: 20% ~ 80%, non-condensing
• Non-operating: 5% ~ 95%, non-condensing

Packaging Dimensions (L×W×H)

• 1 to 4: 20 x 17.5 x 13 inches
• 1 to 9: 25 x 20 x 13 inches

Product Weight

• 1 to 4: 17 lbs.
• 1 to 9: 22 lbs.

Certifications

• FCC, CE, and RoHS

* Specifications are subject to change without notice.
