Contact UsShop by CategoryTDK-Lambda RSEN-2003 EMI Filter 3A 250V Terminal Block Chassis MountSKU: AI1907 Item Specifications
- In Stock: 1
- Brand: TDK-Lambda
- Color: Black
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: RSEN-2003
- Type: Power Supply
- Shelf: D-6 Tub 1
- Part Number: RSEN-2003
- Manufacturer: TDK-Lambda
- Full Load Amps:: 1.0 mA
- MPN: RSEN-2003
- Media 1 Description: TDK-Lambda RSEN-2003 Power Supply - Photo 1
- Media 2 Description: TDK-Lambda RSEN-2003 Power Supply Image 2
- Media 3 Description: TDK-Lambda RSEN-2003 Power Supply View 3
- Mounting Type: Chassis Mount / DIN Rail (with -D suffix)
-
- Country of Origin: Japan
Product Description

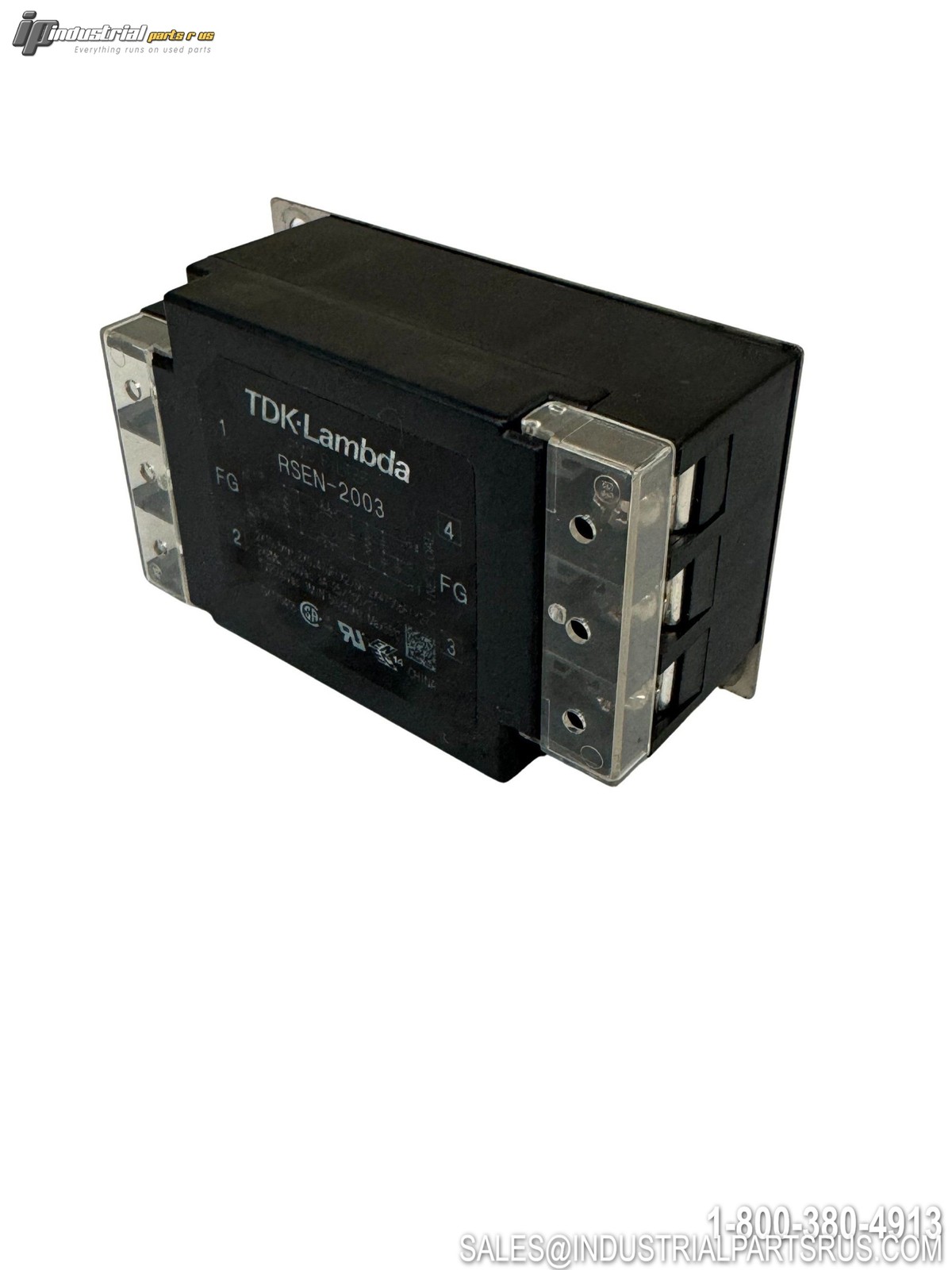

The TDK-Lambda RSEN-2003 is a single-phase EMC/EMI power line filter rated at 3 amps and 250VAC/250VDC, designed to suppress conducted electromagnetic interference on AC or DC power lines. It features an integrated terminal block connection, a compact low-profile chassis-mount enclosure (with optional DIN rail mount via -D suffix), and uses TDK ferrite core material for broadband noise attenuation across a wide frequency range. Rated for up to 750W, the RSEN series is suitable for general-purpose industrial, medical, test, and communications applications requiring compliance with CISPR and related EMC standards.
Technical / Part NumberRSEN-2003SeriesRSENProduct TypeSingle-Phase EMC/EMI Power Line FilterRated Current3ARated Voltage (AC)250VACRated Voltage (DC)250VDCInput Frequency47–63 HzNumber of PhasesSingle PhaseNumber of Filter Stages1 StageLeakage Current1.0 mADC Resistance250 mΩShort Circuit Current Rating (SCCR)14 kACommon Mode Attenuation ≥25 dB0.1–20 MHzDifferential Mode Attenuation ≥25 dB0.2–30 MHzHV Pulse ProtectionNone (N)Core MaterialTDK FerriteTerminal / Connection TypeTerminal Block (captive screws & covers)Mounting TypeChassis Mount (DIN rail mount available with -D suffix)Withstanding Voltage2500 VACInsulation Resistance100 MΩOperating Temperature Range-25°C to +85°CHeight35 mmWidth52 mmLength (Depth)87 mmMass / Weight170 gSafety CertificationsUL1283, CSA C22.2 No.8, EN60939-1, EN60939-2RoHS ComplianceYes (with exemption) — 2011/65/EU, 2015/863Lifecycle StatusActive / CurrentTypical ApplicationsIndustrial, Medical, Test & Measurement, Communications
We warranty all items for 30 days from date of purchase.
