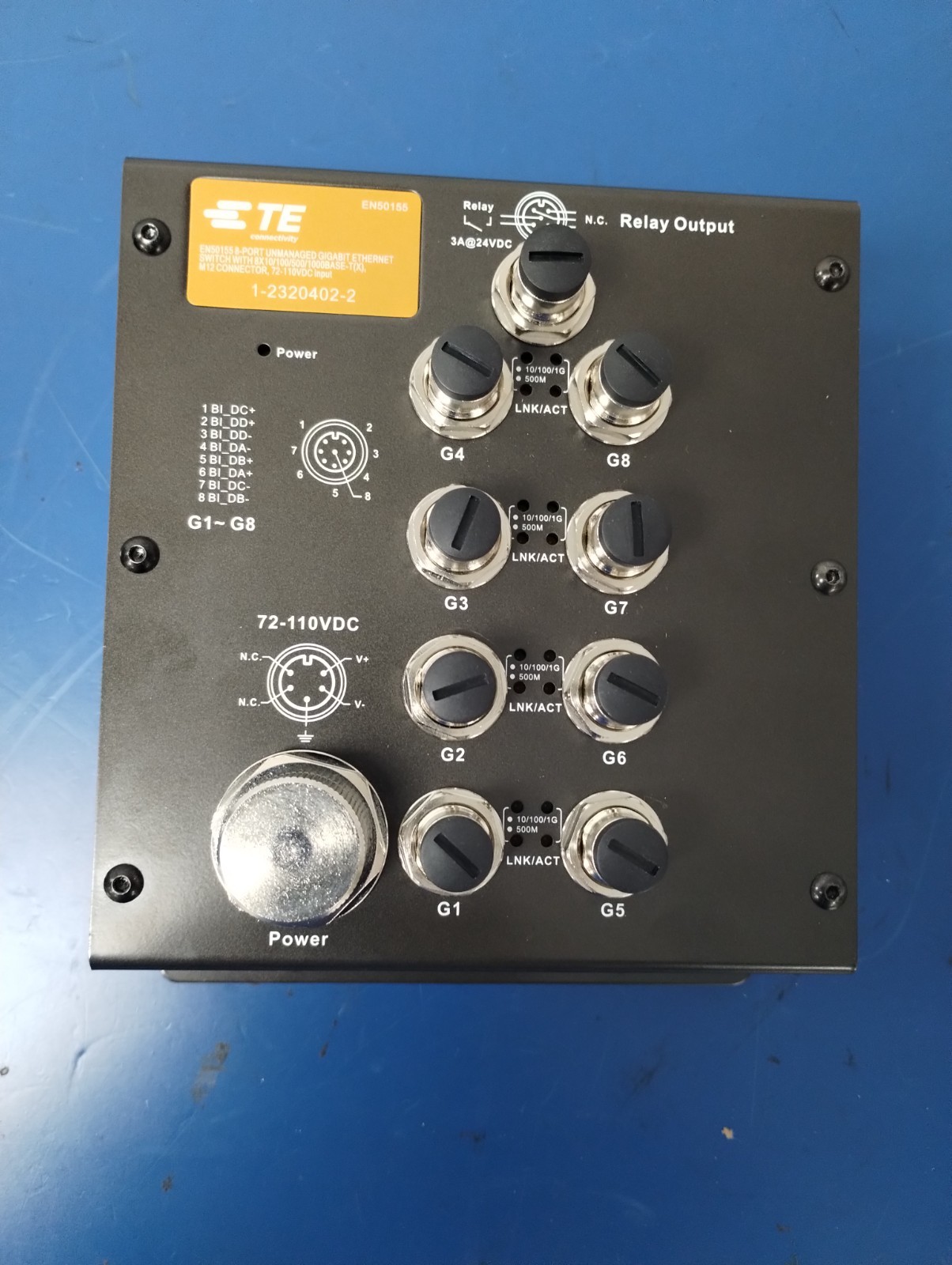

[ TE CONNECTIVITY 1-2320402-2 8‑port, Unmanaged Industrial Gigabit Ethernet Switch]

ABOUT THIS ITEM

**[ C9 - New Open Box - F4 -Hardware Functional]**

UI:[ V003835]

**[ New -Open box]**

ITEM IS AS PICTURED

INCLUDES: [NETWORK SWITCH]

FEATURED DESCRIPTION:

TE Connectivity 1‑2320402‑2 is an 8‑port, unmanaged, industrial Gigabit Ethernet switch designed for harsh‑environment rail and transportation applications. It uses M12 connectors, supports 10/100/1000 Mbps, and operates from a 72–110 VDC power input.

🧩 TE Connectivity 1‑2320402‑2 — Key Specifications

Overview

Type: Unmanaged Industrial Ethernet Switch

Ports: 8 × M12 (A‑coded) copper ports

Speed: 10/100/1000 Mbps

Ingress Protection: IP40

Mounting: Chassis mount

Lifecycle: Obsolete / End‑of‑Life (remaining stock only)

⚙️ Electrical Specifications

Input Voltage:

72–110 VDC (primary operating range)

Power Consumption:

7.88 W typical for the 1‑2320402‑2 variant (from the 2320402 family table)

Protections:

Reverse polarity protection

Over‑current protection

🔌 Ethernet Interface

Ports: 8 × M12 A‑coded connectors

Standards Supported:

IEEE 802.3 (10Base‑T)

IEEE 802.3u (100Base‑TX)

IEEE 802.3ab (1000Base‑T)

IEEE 802.3x (Flow control)

MAC Table: 8K addresses

Processing: Store‑and‑forward

LED Indicators:

Link/Activity (Green = 1 Gbps, Amber = 10/100 Mbps)

Duplex/Collision (Amber)

🧱 Mechanical & Environmental

Dimensions: 125 × 65 × 196 mm

Weight: ~1195 g (variant‑specific)

Operating Temperature: −40 °C to +70 °C (Digi‑Key) / up to +75 °C (Mouser)

Storage Temperature: −40 °C to +85 °C

Humidity: 5%–95% non‑condensing

Shock & Vibration:

IEC 60068‑2‑27, IEC 60068‑2‑6, IEC 60068‑2‑32

EMI/EMS Compliance:

EN50155 (railway)
