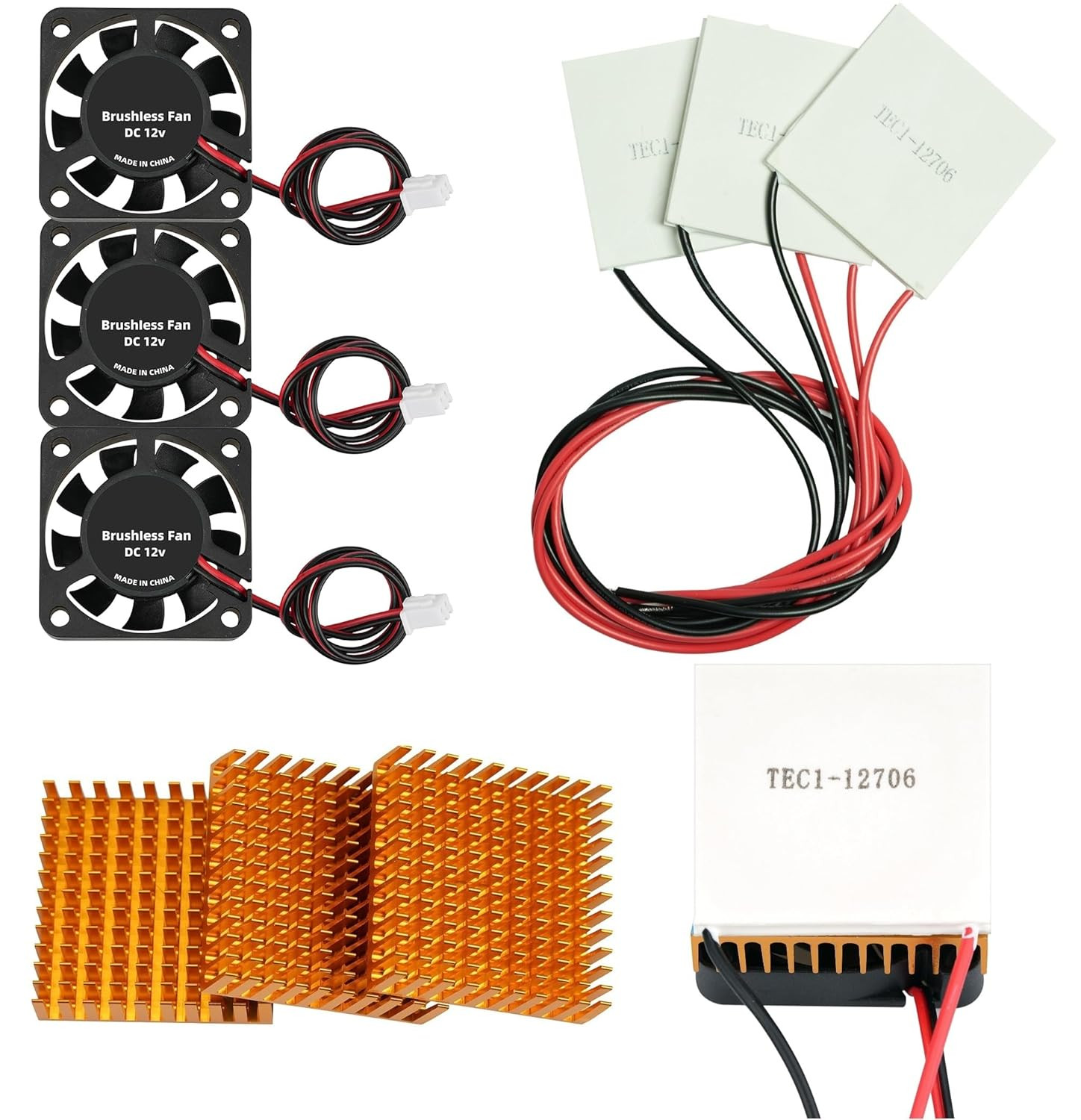

TEC1-12706 Peltier Cooler Module Kit with Heat Sinks and 12V Fan (3 Sets)Description Unit Count 3.0 Count Power Connector Type 2-Pin Product Dimensions 1.57"L x 0.43"W x 1.57"H Maximum Rotational Speed 6500 RPM Wattage 1.2 watts Material Aluminum Material Type Aluminum Item Dimensions L x W x H 1.57"L x 0.43"W x 1.57"H Compatible Devices Desktop Voltage 12 Volts Cooling Method Air Air Flow Capacity 6.25 Cubic Feet Per Minute Warranty Description NO Included Components 3Pcs Cooling，3Pcs Aluminum heat sinks，3Pcs 12V Cooling Fan

• Peltier cooler：Compatible with for Making Portable Coolers Hot and Cold Water Dispensers 3D Printers CPU current:IMAX=4.3-4.6A(at rated 12V)
• Rated voltage:12V (VMAX:15V starting current 5.8A)
• Commodities include：3Pcs Peltier Cooler Cooling；3Pcs Aluminum Heat Sinks；3Pcs 12V Cooling Fan；16 Pcs Fan mounting screws

Product description TEC1-12706 Peltier Cooler Module

Dimensions: 40mm × 40mm × 3.6mm

Operating Voltage: Rated 12V DC (Maximum 15V)

Maximum Current: 6A (5.8A)

Maximum Power: 92W

Maximum Cooling Power: Approximately 51.4W under conditions of Δt=0℃ and Th=30℃

Maximum Temperature Difference: ΔTmax≥67℃ (Qc=0, Th=30℃)

Operating Temperature Range: -50℃ to +80℃

Wire Length: 280mm

4010 Cooling Fan

Dimensions: 40mm × 40mm × 10mm

Rated Voltage: 12V

Operating Voltage Range: 8.5V-13.5V (Overloading may cause damage)

Rated Current: 0.03A-0.11A (Overloading may cause damage)

Rated Input Power: Approx. 0.36W-1.32W

Speed: 4500rpm-8500rpm

Airflow: 6.7 CFM

Noise Level: 24.1dBA

Connector: 2-pin 2.5mm

Cable Length: 11 inches (280mm)

Aluminum Heatsink

Material: Aluminum

Dimensions: 40mm x 40mm x 11mm

Back: With thermal conductive tape

Description Description

1. The core of the Peltier module is an N/P type semiconductor thermocouple, ceramic plate encapsulated, achieving solid-state heat transfer via DC current.

2. Charge carriers absorb heat at the cold end and release heat at the hot end; reversing the current switches to heating mode.

3. The module's temperature difference is directly related to the current, semiconductor performance, and hot-end heat dissipation efficiency.

4. The TEC1-12706 is small and only suitable for cooling small devices requiring effective heat dissipation.

5. Includes an aluminum heatsink with thermally conductive tape, a 12V 4010 bearing cooling fan, and mounting screws.

6. Never connect the power supply without the heatsink installed; otherwise, the TEC module may burn out.

7. A low-voltage 5V power supply can be used to check the module; a heatsink and fan are required for auxiliary heat dissipation at the hot end.

8. Optimal cooling at 12V requires a higher-power cooling device; avoid exceeding the rated voltage and current.

9. An aluminum heatsink can be connected to the cold end, providing both heat conduction and anti-frost functions (optional). Under 10.12V 6A conditions, the built-in 4010 fan is insufficient for heat dissipation, and a higher power heatsink is required.
