DocumentSpecifications:Model: TEC1-12706Voltage: 12VUmax (V): 15VMax Current (A): 4-4.6ACooling Power: Qcmax 50-60WResistance: 2.1-2.4Ω△Tmax(Qc=0): up to 67°COperates Temperature: -55°C to 83°CPower Cord: 29cmDimensions : 40mm x 40mm x 3.75mm (L*W*T)Package Content: 1 x Thermoelectric CoolerDescription:1.Get ice cold in minutes or heat to boiling by simply reversing the polarity.2.Used for numerous applications from CPU coolers to alternate power sources.3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.Please Note:1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.

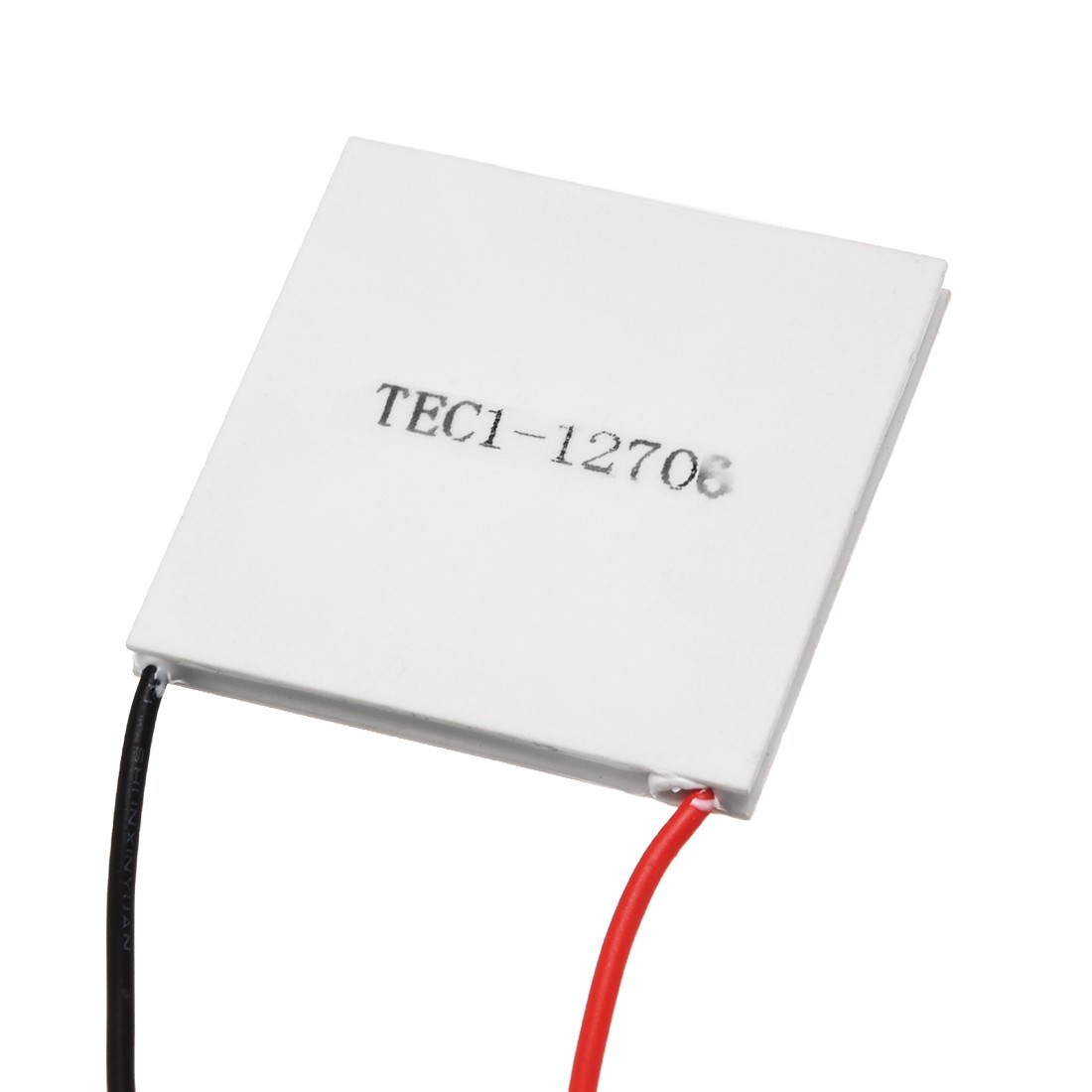

TEC1-12706 Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt 50-60 Watt

Specifications:

Model: TEC1-12706

Voltage: 12V

Umax (V): 15V

Max Current (A): 4-4.6A

Cooling Power: Qcmax 50-60W

Resistance: 2.1-2.4Ω

△Tmax(Qc=0): up to 67°C

Operates Temperature: -55°C to 83°C

Power Cord: 29cm

Dimensions : 40mm x 40mm x 3.75mm (L*W*T)

Package Content: 1 x Thermoelectric ice cold in minutes or heat to boiling by simply reversing the polarity.

2.Used for numerous applications from CPU coolers to alternate power sources.

3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.

Please Note:

1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.

2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.

3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.

Hot Item

Payment

• 1.We accept payment .
• 2.Payment must be received within 7 business days of sale closing.

Shipping

• 1.We ship to your or Paypal address. Please make sure your and Paypal address is correct before you pay.
• 2.Items will be shipped within 1-3 business day when we received payment.
• 3.Delivery time depends on destination and other Thermoelectric Cooler Heat Sink Cooling Peltier 12 Volt 50-60 Watt

  Specifications:

  Model: TEC1-12706

  Voltage: 12V

  Umax (V): 15V

  Max Current (A): 4-4.6A

  Cooling Power: Qcmax 50-60W

  Resistance: 2.1-2.4Ω

  △Tmax(Qc=0): up to 67°C

  Operates Temperature: -55°C to 83°C

  Power Cord: 29cm

  Dimensions : 40mm x 40mm x 3.75mm (L*W*T)

  Package Content: 1 x Thermoelectric ice cold in minutes or heat to boiling by simply reversing the polarity.

  2.Used for numerous applications from CPU coolers to alternate power sources.

  3.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving parts.

  4.Must be used in conjunction with a heat sink to avoid burned. Hot side needs heat sink all the time.

  Please Note:

  1.Under cooling mode: Red wire to positive, black wire to negative. the surface with model number is cooling side.

  2.When heating, just need to change the current polarity; when cooling, switching power supply is needed.

  3.During installation, keep thermoelectric cooler clean, and apply the heat-conducting silicone grease evenly over both heating and cooling surfaces.
