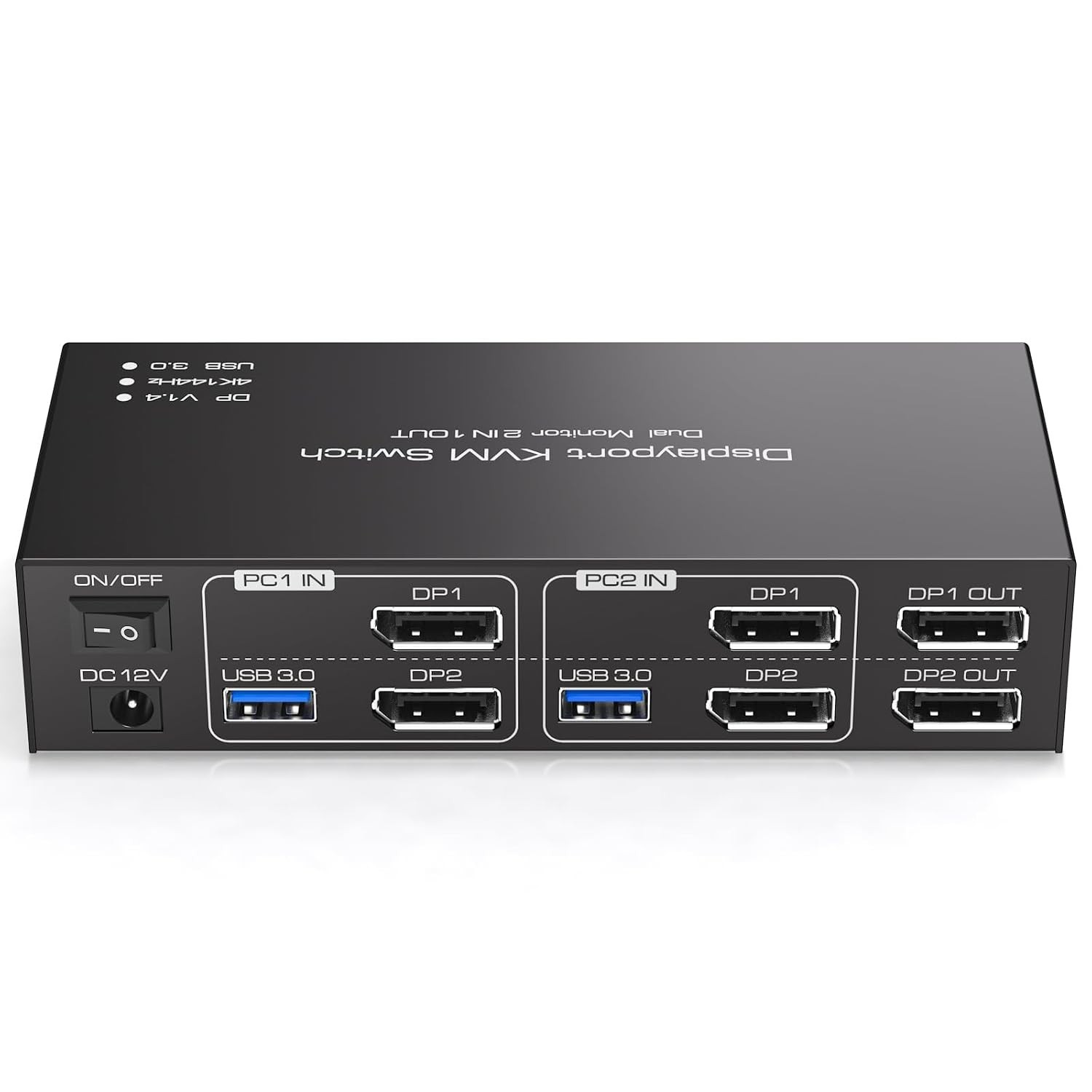

The TJCXELE TJUS-SW273251210N is a 2-port DisplayPort KVM switch box for controlling two computers with two monitors and four shared USB 3.0 devices. It supports extended and copy (mirror) display modes. Each connected computer uses two DisplayPort ports (DP 1 and DP 2 must connect to the same computer), which requires the computer to support multiple monitors.
The switch supports DisplayPort 1.4 with a maximum resolution of 3840 x 2160 at 144Hz (4K@144Hz) and is backward compatible with DisplayPort 1.2. Video bandwidth is up to 48 Gbps. It provides four USB 3.0 ports with data transfer rates up to 5 Gbps for connecting keyboard, mouse, printer, and other USB devices.
Switching is performed by a panel push button next to the indicator light or by an external wired desktop controller. Keyboard shortcut (hotkey) switching is not supported. The unit uses a 12V DC power adapter for external power. The housing is aluminum. Each computer connection requires two DP cables, one USB cable, and the 12V DC power for dual-screen operation (DP cables not included).
Package contents: DisplayPort KVM switch, 2 USB-A 3.0 cables, 1 desktop controller, 1 DC 12V adapter, and a user manual.
Specifications:
Brand: TJCXELE
Manufacturer: TJCXELE
Part Number: TJUS-SW273251210N
Type: DisplayPort KVM Switch
Number of Ports/Positions: 2
Max Resolution: 3840 x 2160 at 144Hz (4K@144Hz)
DisplayPort Version: DP 1.4 (backward compatible with DP 1.2)
Video Bandwidth: 48 Gbps
USB Ports: 4 x USB 3.0
USB Data Transfer Rate: 5 Gbps
Display Modes: Extended, Copy
Switching Methods: Panel button, external wired desktop controller
Color: Deep White
Material: Aluminum
Operating Voltage: 12 V
Current Rating: 0.6 A
Circuit Type: 2-way
Switch Type: Push Button
Operation Mode: ON-OFF
Contact Type: Normally Open
Connector Type: Plug In
Mounting Type: Panel Mount
International Protection Rating: IP20
Upper Temperature Rating: 45 C
Certification: CE
Item Dimensions: 7.8 x 5.7 x 2.2 in
Included: DisplayPort KVM Switch, 2 USB-A 3.0 cables, 1 desktop controller, 1 DC 12V adapter, user manual
