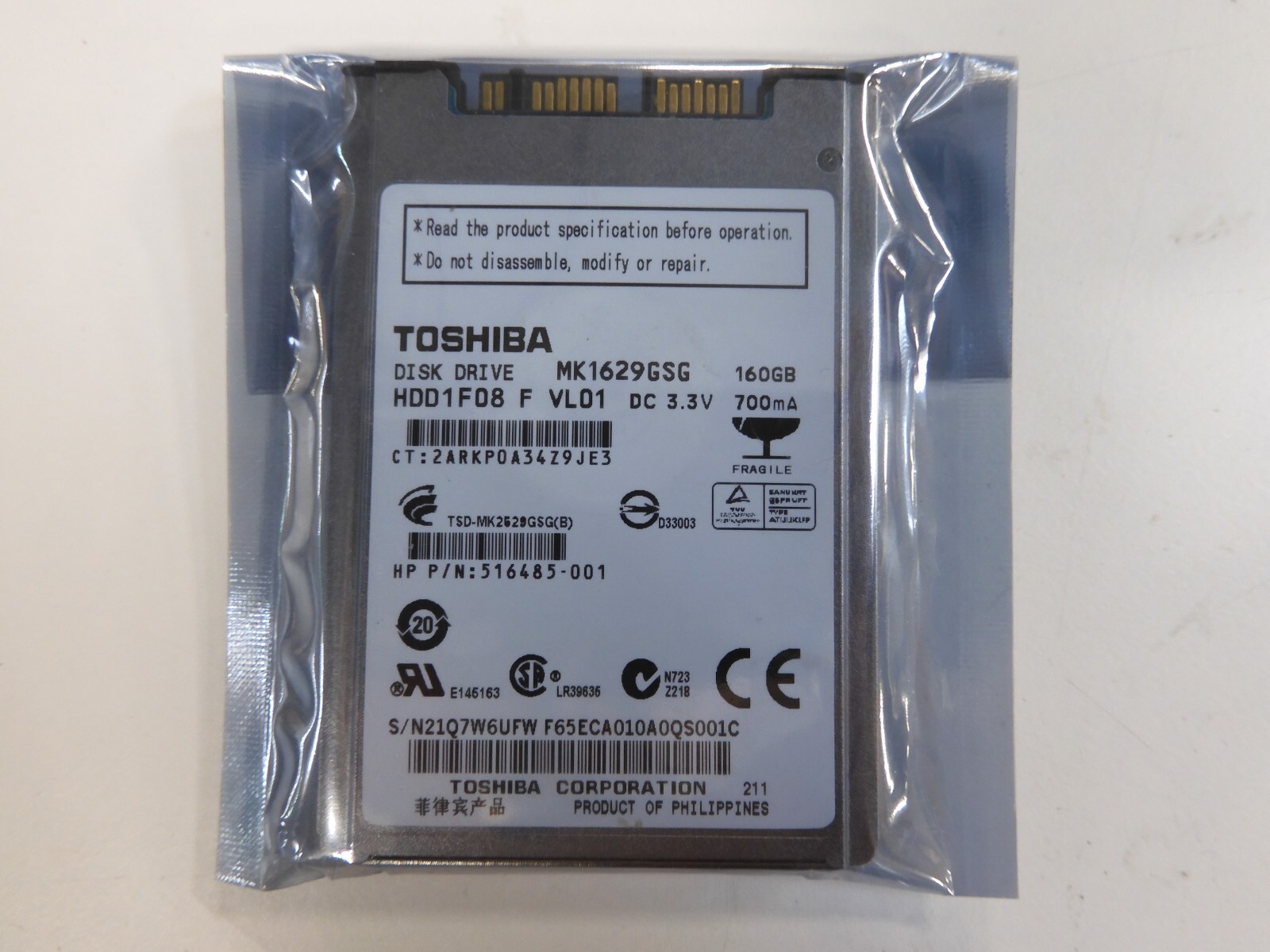

Toshiba MK1629GSG is a 160GB 1.8-inch internal hard drive designed for ultra-mobile computing applications.

• Model Number: MK1629GSG (Part Number: HDD1F08)

• Capacity: 160 GB

• Form Factor: 1.8-inch (8mm height)

• Interface: Micro SATA (SATA II, 3.0 Gb/s)

• Cache: 8 MB

• Spindle Speed: 5400 RPM

• Recording Technology: Perpendicular Magnetic Recording (PMR)

• Shock Resistance:

  • Operating: 500G (2ms)

  • Non-operating: 1500G (1ms)

• Power Consumption:

  • Spin-up: 2.5W

  • Seek: 1.2W

  • Idle: 0.5W

  • Standby: 0.18W

  • Sleep: 78.5mm (L) × 54.0mm (W) × 8.0mm (H)

  • Weight: 62 grams

  ⚙️ Performance Details

  • Average Seek Time: 15 ms

  • Track-to-Track Seek Time: 3 ms

  • Average Latency: 5.55 ms

  • Data Transfer Rate:

    • Host Interface: Up to 300 MB/s

    • Media Transfer Rate: Up to 599.5 Mbits/sec

  • MTBF (Mean Time Before Failure): 600,000 hours

  • Load/Unload Cycles: 600,000([link removed by ], [link removed by ], [link removed by ], [link removed by ])

  🌿 Environmental Specifications

  • Operating Temperature: 5°C to 55°C (41°F to 131°F)

  • Non-operating Temperature: -20°C to 65°C (-4°F to 149°F)

  • Operating Humidity: 8% to 90% RH

  • Non-operating Humidity: 8% to 90% RH

  • Operating Vibration: 2.0G (15-500 Hz)

  • Non-operating Vibration: 5.0G (15-500 Hz)

  • Acoustic Noise: 18 dB

  • RoHS Compliance: Yes
