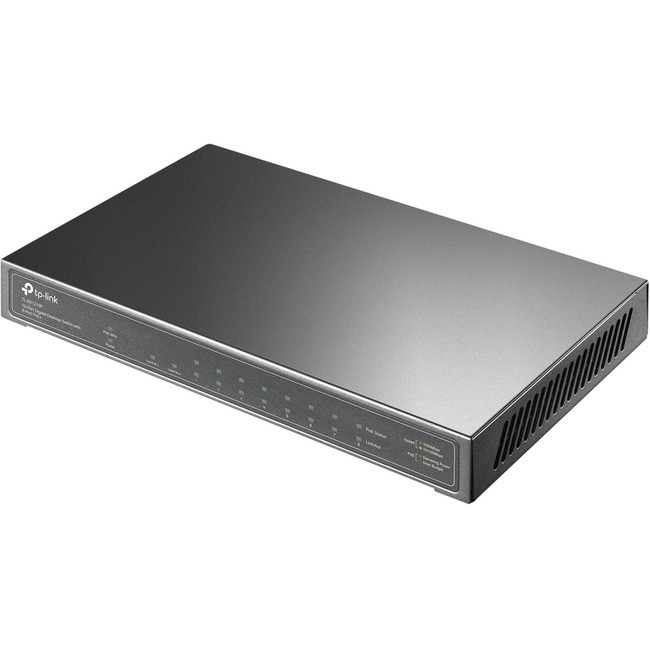

TP-Link TL-SG1210P - 8-Port Gigabit PoE Switch - Limited Lifetime Protection TP-Link TL-SG1210P - 8-Port Gigabit PoE Switch - Limited Lifetime Protection
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 10-Port Gigabit Desktop Switch with 8-Port PoE+ Power Adapter Installation Guide
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, transfers data and power on one single cable
Working with IEEE 802.3af/at compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
Easy to use, with no configuration and installation needed HARDWARE FEATURES Interface
8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-X MMF, SMF Fan Quantity
Fanless Physical Security Lock
Yes Power Supply
External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth
20 GbpsPoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W Mac Address Table
4K Max Power Consumption
7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected) SOFTWARE FEATURES Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping Transmission Method
Store-And-Forward OTHERS Certification
CE, FCC, RoHS Package Contents
TL-SG1210P, Power Adapter, Installation Guide Environment
Operating Temperature: 0oC - 40oC (32oF - 104oF)
Storage Temperature: -40oC - 70oC (-40oF - 158oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensingItem Dimension (L inchxW inchxH inch)
13 x 10 x 3
Weight
3.00lb
Warranty Information
2-yearPackage Contents:
- 10-Port Gigabit Desktop Switch with 8-Port PoE+
- Power Adapter
- Installation Guide
SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower AdapterPoE Budget63 WPoE (RJ-45) PortYesPower Consumption7.11 WPhysical CharacteristicsForm Factor
- 8 x Gigabit Ethernet PoE+
- 1 x Gigabit Ethernet Network
- 1 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports10ModularYesI/O ExpansionsTotal Number of Expansion Slots1.0Shared SFP SlotNoNumber of SFP Slots1Expansion Slot TypeSFP (mini-GBIC)General InformationBrand NameTP-LinkMarketing Information PoE Switches for Your Ultra Convenience 10-Port Gigabit Desktop Switch with 8-Port PoE+ TL-SG1210P Surveillance Work with IP Cameras Conference Call Work with IP Phones Wi-Fi Coverage Work with Omada EAPs Easy to Use Power over Ethernet Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). Intelligent Power Management When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation. Advanced Functions for Higher Performance Qos For Fluent Online Experience Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV. Sturdy Metal Casing Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation. More from the Manufacturer Product TypeEthernet SwitchProduct Name10-Port Gigabit Desktop Switch with 8-Port PoE+ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG1210PProduct ModelTL-SG1210PMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
- IEEE 802.1p
