TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 - 75C (-40 - 167F) for industrial environments.
- About Us
- Payment Info
- Shipping Info
- Customer Support
- response

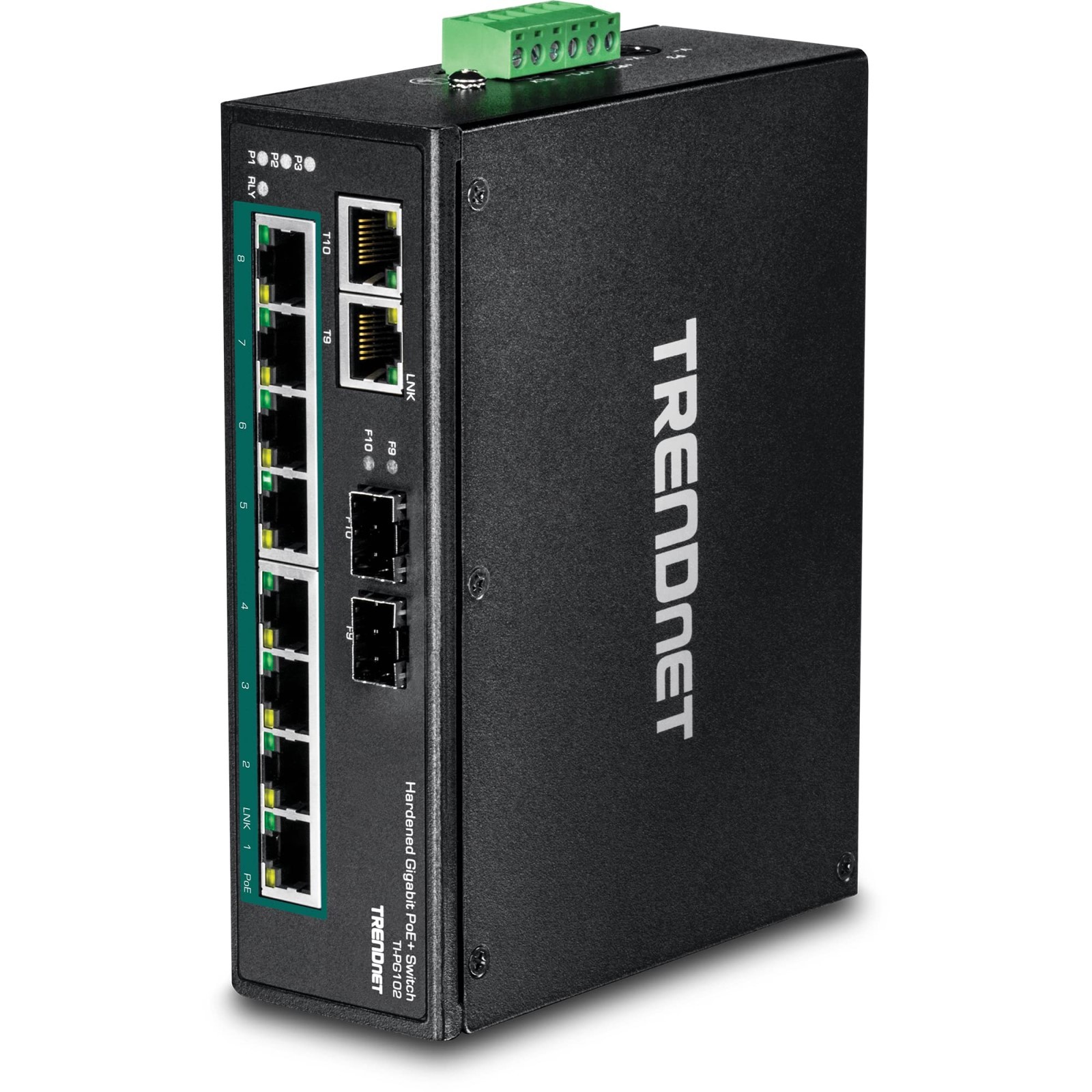

TRENDnet 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch TIPG102 Brand: TRENDnet UPC: 0710931160932 Mfr Part #: TIPG102
General Information
- 8 x Gigabit PoE+ ports & 2 x Gigabit RJ-45 / SFP shared ports
- 240 W PoE power budget
- 20 Gbps switching capacity
- Power supply sold separately (models: TI-S24048 / 48VDC3000)
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Operating temperature range of -40? - 75?C (-40? - 167?F)
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000)
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40? - 75?C (-40? - 167?F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75?C (-40 - 167?F).
Package Contents:
- TI-PG102
- Quick Installation Guide
-Removable terminal block
- DIN-Rail and wall mount kit
- NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
?
Media & Performance Media Type Supported: Twisted Pair Media Type Supported: Optical Fiber Ethernet Technology: Gigabit Ethernet Network Technology: 1000Base-T Network Technology: 1000Base-X
?
I/O Expansions Number of Total Expansion Slots: 2 Expansion Slot Type: SFP Shared SFP Slot: Yes Number of SFP Slots: 2
?
Network & Communication Layer Supported: 2
?
Power Description Power Source: Power Supply Redundant Power Supply Supported: Yes
?
Physical Characteristics Form Factor: Wall Mountable Form Factor: DIN Rail Mountable Height: 3" Width: 5" Depth: 10" Length: 6.1" Weight (Approximate): 1.43 lb
10-Port Industrial Gigabit PoE+ DIN-Rail Switch Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit Country of Origin: Taiwan TAA Compliant: Yes NDAA Compliant: Yes
?
Warranty Limited Warranty: Lifetime Store Policies
