TRENDnet TI-PG62B 7-Port Industrial Gigabit PoE+ DIN-Rail Network Switch V2

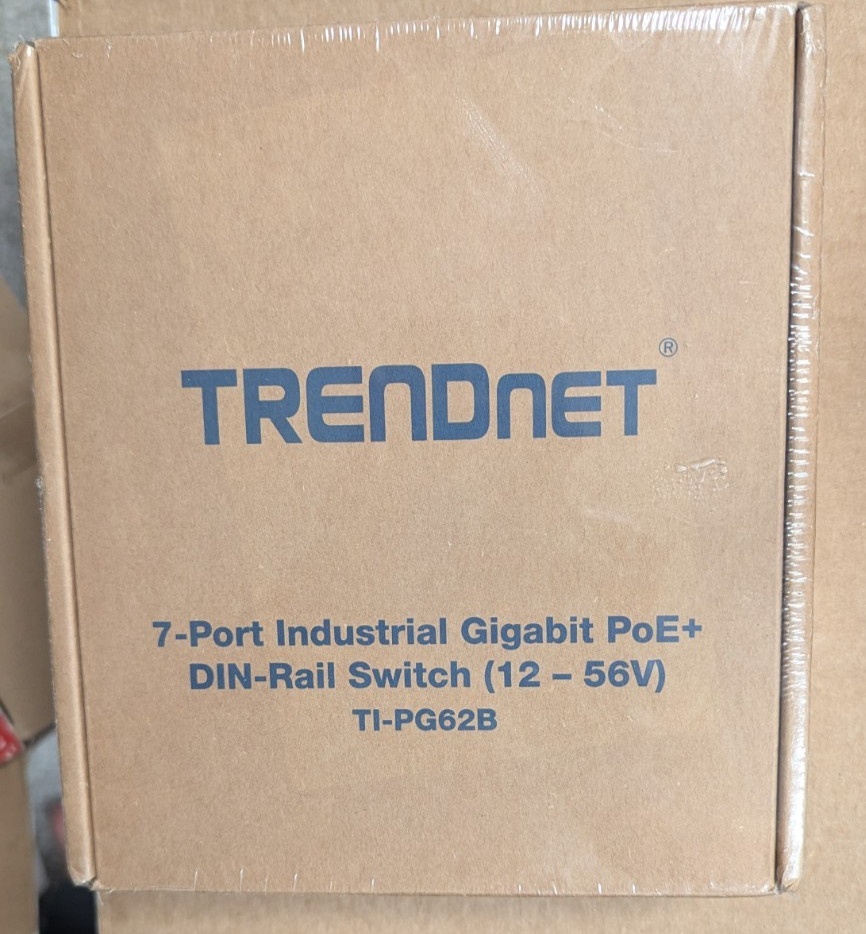

These are brand new in their factory-sealed shrink-wrapped boxes as seen in the supplied photos. Please note this is the upgraded Hardware Version 2 (V2), which features a 7th dedicated Gigabit port and an upgraded, dust-protected IP50-rated enclosure compared to the older 6-port, IP30-rated Version 1.. Fast shipping & friendly service.TI-PG62B (Version V2)
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 2 x Gigabit SFP ports
- Up to 60W @ 12V; 120W @ 24 – 56V
- Hardened IP50 rated metal switch
- Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
- Dual 12–56V DC inputs provide redundant power with overload current protection
- Alarm relay triggered by power failure
- 14Gbps switching capacity
- Includes DIN-Rail mount and wall mount brackets
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 12 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.
Variable Voltage Input
Provides up to 120W PoE+ power budget with a 24 – 56V DC power supply or 60W PoE+ power budget with a 12V DC power supply.
Fault Tolerance
Features redundant 12 – 56V DC power inputs from external power sources, and an output alarm relay to indicate an input power failure.
Industrial Hardened Design
Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power
Up to 30W of power per port and data over a single Ethernet cable to PoE devices
PoE Budget
60W @ 12V DC; 120W @ 24 – 56V DC
Wide Input Voltage
Dual variable voltage 12 – 56V DC power inputs – power supply sold separately (model: TI-S150052)
Easy Installation
No configuration needed, simply connect PoE+ network devices to the industrial unmanaged PoE+ switch
IP50 Rated
This industrial switch is IP50 rated for ingress dust protection
Fault Tolerance
Features an output alarm relay to indicate an input power failure
Extreme Temperature Range
An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
DIN-Rail / Wall Mounts
The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware
Grounding Point
The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges
