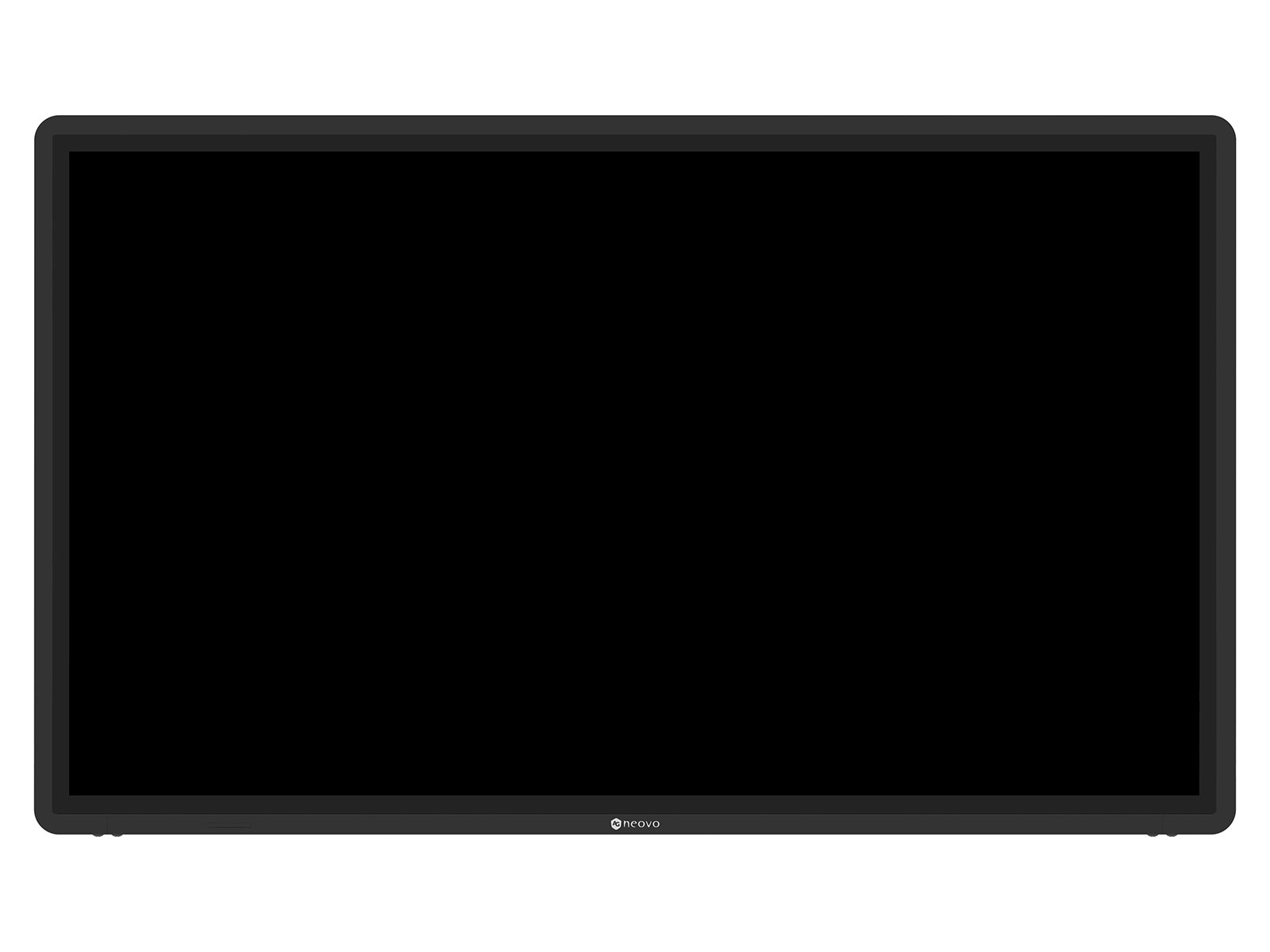

for All Products AG Neovo TTN-3201 32 inch Full HD Commercial-grade LCD Display for Video Surveillance Manufacturer:AG Neovo SKU:TTN-3201 Condition:New Warranty:3 Years
Unmatched Clarity and Reliability for High-Stakes Surveillance
The TTN-3201 32” LCD display is engineered for critical surveillance in environments like transportation hubs, retail stores, and manufacturing sites, offering exceptional operational excellence 24/7. Its robust construction ensures longevity, and its comprehensive connectivity alongside advanced remote management capabilities streamline operations. Designed specifically for crucial surveillance and property security, the TTN-3201 delivers crystal-clear, detailed video footage with resolution, boosting security efficacy in demanding conditions.
Features
- Full HD 1920 x 1080 resolution and 450 nits brightness
- Anti-Burn-in technology prevents image ghosting
- Manufactured in Taiwan for exceptional quality
- Rigorous screening of the components for mission-critical 24/7 applications
- Front-sided IP22 rating protects the screen from liquid and dust
- IK10 metal casing protection and better thermal dissipation
- Flexible display orientation: Landscape/Portrait
- Versatile connectivity: HDMI, DVI, VGA, Composite (BNC)
- BNC passive loop-through output port
- RS232/LAN Control - provides compatibility with control systems
- CCTV picture mode for maximum image detail in low light footage
- Black-level adjustment for presenting more details in dark images
- Selectable gamma curves optimise different kinds of images
- Built-in USB media playback for simple signage content delivery
- Lockable control keys to prevent tampering in public environments
Exceptional Front Protection
Experience outstanding durability with our IP22-rated LCD display, crafted to withstand dust and water. The front panel is enhanced with IK08 hardness glass, providing superior scratch resistance and maintaining clarity and resilience over time.
Superior Backside Endurance
Fortified with an IK10-rated housing, the LCD display offers unrivaled protection against vandalism, ideal for use in public spaces and areas without supervision. Its durable metal casing supports effective heat dissipation, ensuring consistent performance under continuous operation.
Craftsmanship and Quality
Proudly manufactured in Taiwan, the LCD display epitomizes top-tier production quality. This commitment guarantees a product that not only integrates advanced technology but also offers peerless durability and reliability, standing out in the most challenging situations.
Round-the-Clock Reliability
With specialised public information display panels, our LCD displays are engineered for 24/7 continuous operation, embodying resilience and ensuring your operations are uninterrupted.
Advanced Thermal Management
An innovative thermal sensor actively monitors temperatures, maintaining reliability 24/7. When temperature thresholds are exceeded, alarms are triggered to alert that the temperature is getting high, preventing overheating for consistent performance.
Energy Efficiency
EcoSmart Technology dynamically adjusts backlighting based on environmental lighting, reducing power consumption by 30-50%. This feature not only saves energy but also supports sustainable operation, essential for businesses aiming to minimise their ecological impact while maintaining constant surveillance.
Consistent Clarity & Extended Lifespan
Anti-burn-in technology prevents static image degradation, preserving image quality over time and maintaining the clarity and accuracy of surveillance footage, critical for security analysis and decision-making.
Optimal Brightness for Clear Visibility
Designed with optimal brightness levels to ensure clear visibility in various lighting conditions. Whether in bright daylight or dim environments, the enhanced brightness keeps surveillance footage visible and detailed, aiding effective monitoring and decision-making.
Night Surveillance Enhancement
Our LCD displays enhance black levels to reveal details in night-captured surveillance footage, ensuring even scenes recorded at night are presented with clarity, aiding in thorough monitoring and analysis.
Sharper Images & Improved Recognition
By increasing image sharpness and detail, the LCD display facilitates easier identification of texts, objects, and activities within the surveillance footage, a critical factor in accurate surveillance and security operations.
Efficient Control & PID Software Compatibility
RS232 and LAN interfaces offer centralised control and remote management, enhancing functionality and adaptability of complex systems. This feature facilitates streamlined operations across surveillance centres, integrating seamlessly with PID software.
Effortless BNC Loop-Through Expansion
Our LCD display’s BNC loop-through enables quick and efficient signal extension to multiple devices, ensuring continuous image display across monitors, even if one connection fails. Ideal for maintaining seamless surveillance in large-scale setups.
Landscape/Portrait Capability
Designed for versatile installation, our commercial-grade display supports both landscape and portrait orientations, catering to the specific needs of any surveillance or information display setting.
Versatile Mounting Options
With support for 100 x 100 mm VESA mounts, the LCD display enables versatile installation options, including wall and ceiling mounts, enhancing space utilization and optimizing viewing angles for diverse surveillance setups.
Specifications:
Panel Panel Type IPS Panel Size 31.5” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.364 mm Brightness 450 cd/m� Contrast Ratio 1000:1 Viewing Angle (H/V) 178°/178° Display Colour 16.7M Response Time 5 ms Surface Treatment Anti-Glare Treatment (Haze 1%), 2H Frequency Frequency (H) 31 KHz ~ 92 KHz Frequency (V) 48 Hz ~ 76 Hz Signal Input
HDMI 2.0 x 1 DVI 24-Pin DVI-D VGA 15-Pin D-Sub x 1 Composite BNC x 1 Signal Output Composite BNC x 1 External Control RS232 In 9-Pin D-Sub LAN RJ45 x 1 Other Connectivity USB 2.0 x 1 (Service Port / Media Playback) Audio Audio In Stereo Audio Jack (3.5 mm) Audio Out S/PDIF
Stereo Audio Jack (3.5 mm) Internal Speakers 10W x 2 Power Power Suppl Internal Power Requirements AC 100-240V, 50/60 Hz On Mode 50 W Standby Mode <0.5W Off Mode 0W Glass Thickness 3.2 mm (0.13") Transmission Rate >88% Gloss 75±10% Operating Conditions Temperature 0°C-40°C (32°F-104°F) Humidity 20%-80% (non-condensing) Storage Conditions Temperature -10°C-60°C (-4°F-140°F) Humidity 10%-80% (non-condensing) Mounting VESA FPMPMI Yes (100 x 100 mm) Dimensions Product w/o Base (W x H x D) 758.4 x 454.2 x 84.5 mm (29.9" x 17.9" x 3.3") Packaging (W x H x D) 840.0 x 535.0 x 150.0 mm (33.1" x 21.1"x 5.9") Weight Product w/o Base
10.2 kg (22.49 lb)
Packaging
12.0 kg (26.46 lb)
Regulation Approval Certifications & Compliance FCC, CE, LVD, WEEE, RoHS, REACH, EAC, BSMI Accessories Supplied Batteries, HDMI Cable, Power Cord, Quick Start Guide, Remote Control Optional Accessories Ceiling Mount (Landscape only) CMP-01 + LMK-02, CMP-01 + WMK-03 Wall Mount (Landscape only) LMA-01, LMK-02, WMA-01, WMK-01, WMK-03
Package Includes:
- 1x LCD Display
- 1x Remote control
- 1x Quick Start Guide
- 1x HDMI cable
- 1x Power cord
